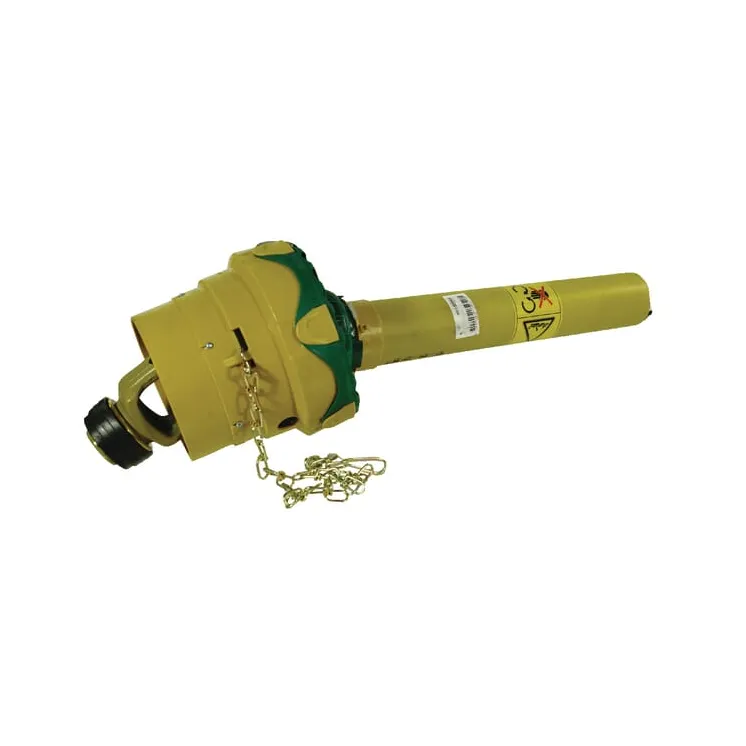

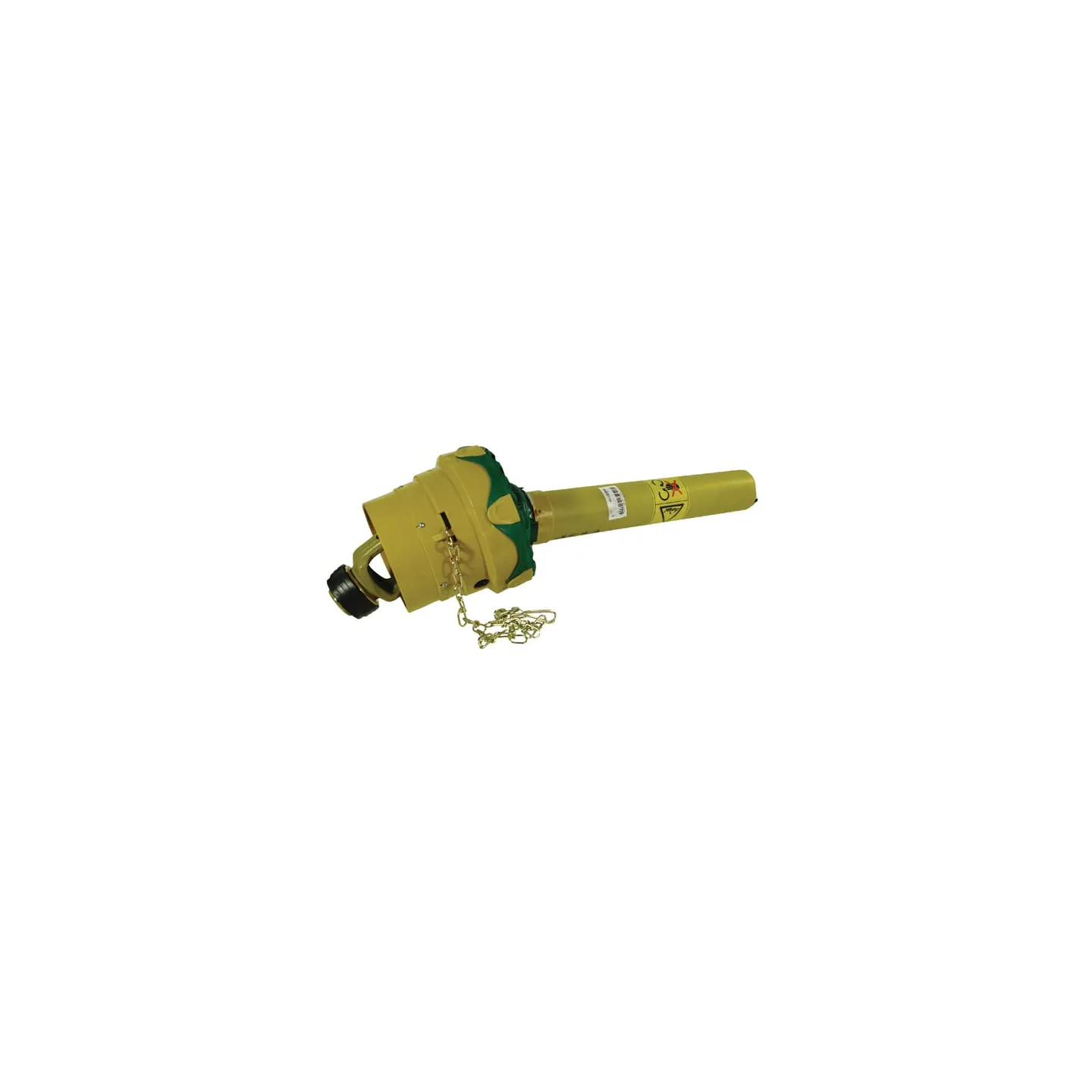

Platleņķa kardānvārpsta, iekšējais WW 2480 L: 1580mm, WWZ24801560I

Name: Platleņķa kardānvārpsta, iekšējais WW 2480 L: 1580mm, WWZ24801560I
Brand: Walterscheid
SKU: WWZ24801560I
Price: 1196.48 EUR
Availability: InStock

Apmaksas iespējas

1 196,48 €

AR PVN

4-5 Darba dienas

Platleņķa kardānvārpsta, iekšējais WW 2480 L: 1580mm, WWZ24801560I Walterscheid

IR NOLIKTAVĀ

ID: 69974

Apraksts

Part number	WWZ24801560I
EAN
Unit	Each
Application range	Mixing wagon Slurry wagon Harvesters Silage wagon
Properties	Tractor-side 1–3/8" (6) shaft collar kit Lubrication interval: 8 hours Fulfils EC 89/392 EEC requirements Complies with EN12965 safety standard CE marking available
Technical info	Working angle with continuous use maximum 25º Working angle may only reach 80º briefly Max. dynamic capacity 540 rpm - 39 kW - 695 Nm Max. dynamic capacity 1000 rpm - 61 kW - 580 Nm Values at working angle 10° and service life 1000 hours
Connection outside diameter by tractor side	1-3/8 Inch
Connection number of splines/grooves by tractor side	6
Consists of	Pto shaft with guard tube Declaration of conformity Instruction manual
Locking type by tractor side	Automatic collar lock
Size code	WW 2480
Length	1580 mm
Cross joint bush diameter by tractor side - longer part	27 mm
Cross joint bush diameter by tractor side	32 mm
Cross joint length by tractor side - longer part	94 mm
Cross joint length by tractor side	76 mm
Cross joint length by machine side - longer part	94 mm
Cross joint length by machine side	76 mm
Inner tube profile	1bGA
Protection type	SD25
Original number equivalent	1695401
