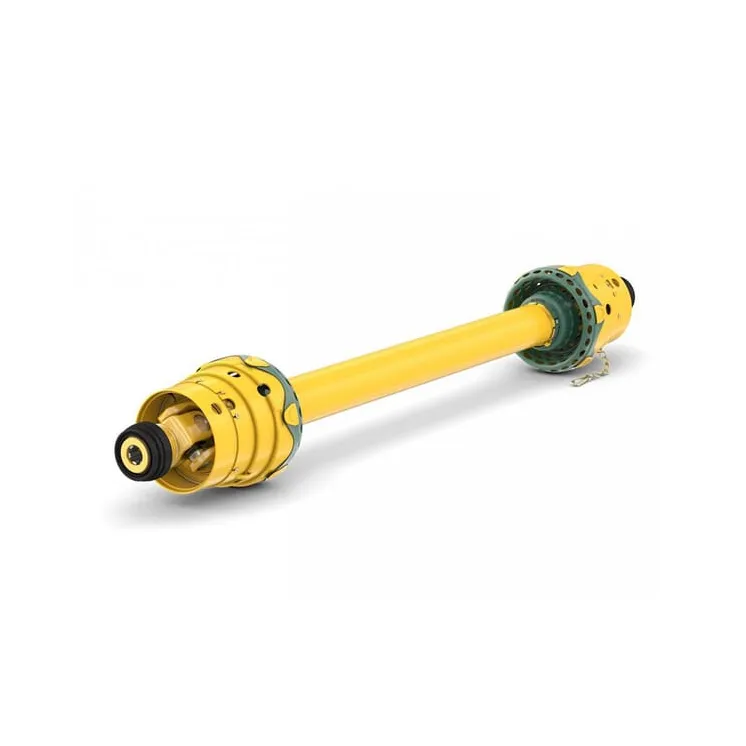

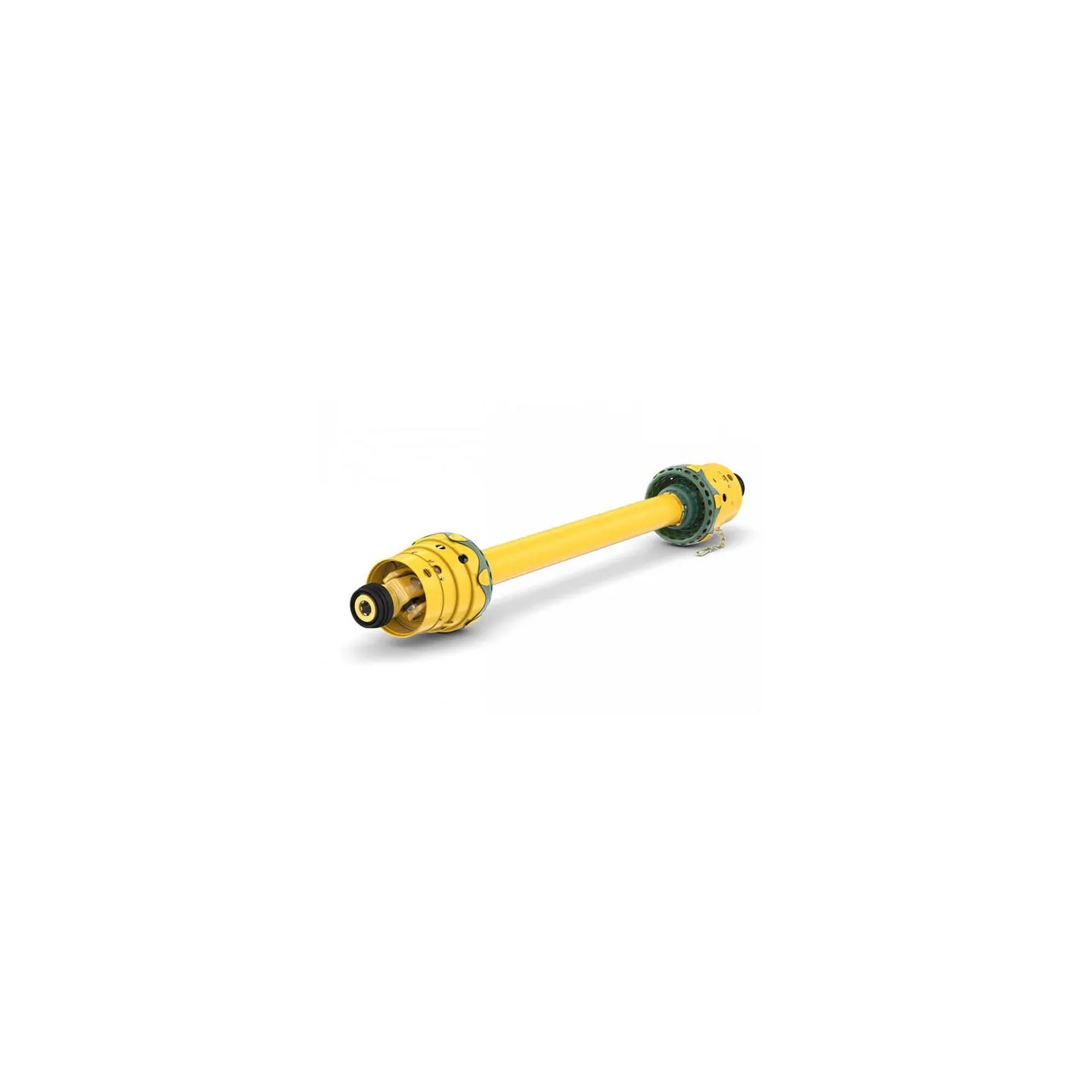

Platleņķa kardānvārpsta WWZ 2280 L: 860mm, WWZ2280860 Walterscheid WWZ2280560 WWZ2280710
search
  • Platleņķa kardānvārpsta WWZ 2280 L: 860mm, WWZ2280860 Walterscheid WWZ2280560 WWZ2280710

Platleņķa kardānvārpsta WWZ 2280 L: 860mm, WWZ2280860 WWZ2280560 WWZ2280710

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
1 427,05 €
AR PVN
Pēc pieprasījuma
Platleņķa kardānvārpsta WWZ 2280 L: 860mm, WWZ2280860 Walterscheid WWZ2280560 WWZ2280710
Uz pasūtījumu

69980

  • Citi kodi
    WWZ2280560 WWZ2280710
  • EAN
    8432970200609
Apmaksa
100% Droši maksājumi
Piegāde
Ātri piegādes risinājumi
Preču atgriešana
30 dienu preces atgriešanas iespēja

Komentāri (0)

Šobrid vēl nav klientu atsauksmju.
Part number
WWZ2280860
EAN8432970200609
Unit
Each
Long description
Wide-angle CV PTO drive shafts complete 80° series WWZ 2280 / 80°
Application range
  • Slurry tank
  • Crop sprayers
  • Drawn hay processing machine
Properties
  • Tractor side 1-3/8" (6) shaft collar kit
  • Device side 1-3/8" (6) slide pin
  • Lubrication interval: 8 hours
  • Fulfilling the requirements laid out in EC 89/392 EEC
  • Compliant with EN12965 safety standard
  • CE marking available
Technical info
  • Working angle with continuous use maximum 25º
  • Working angle may only briefly be 80º
  • Max. dynamic capacity 540 rpm: 20 kW, 335 Nm
  • Max. dynamic capacity 1000 rpm: 31 kW, 295 Nm
  • Values at working angle 5° and service life 1000 hours
  • LZ = slid in length centre distance of outer intersection
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by tractor side
6
Consists of
  • Wide angle pto-shaft, 2 sided, with guard tube
  • Declaration of conformity
  • Instruction manual
Locking type by tractor side
Collar lock
Attachment tractor side
Quick disconnect yoke
Connection outside diameter by machine side
1-3/8 Inch
Connection number of splines/grooves by machine side
6
Locking type by machine side
Collar lock
Attachment machine side
Quick disconnect yoke
Size code
WWZ 2280
Length
860 mm
Power 540 rpm
20 kW
Power 1000 rpm
31 kW
Cross joint bush diameter by tractor side - longer part
22 mm
Cross joint bush diameter by tractor side
24 mm
Cross joint length by tractor side - longer part
76 mm
Cross joint length by tractor side
61 mm
Cross joint bush diameter by machine side - longer part
22 mm
Cross joint bush diameter by machine side
24 mm
Cross joint length by machine side - longer part
76 mm
Cross joint length by machine side
61 mm
Clutch type
n/a
Outer tube profile
1G
Outer tube wall thickness
2.7 mm
Outer tube large outside diameter
48 mm
Inner tube profile
OvGA
Inner tube wall thickness
4 mm
Inner tube large outside diameter
40 mm
Profile tube shape
Lemon
Max static torque
1850 N·m
Protection type
ST15
Original number equivalent
1800115
