| Part number | WWE24801210OG | |
|---|
| EAN | 8432970202719 | |
|---|
| Unit | Each | |
|---|

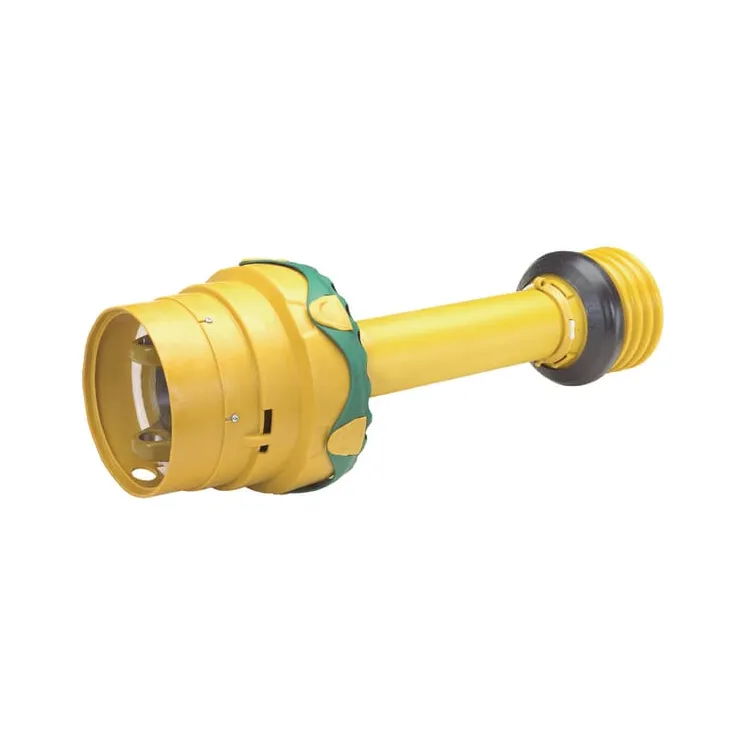

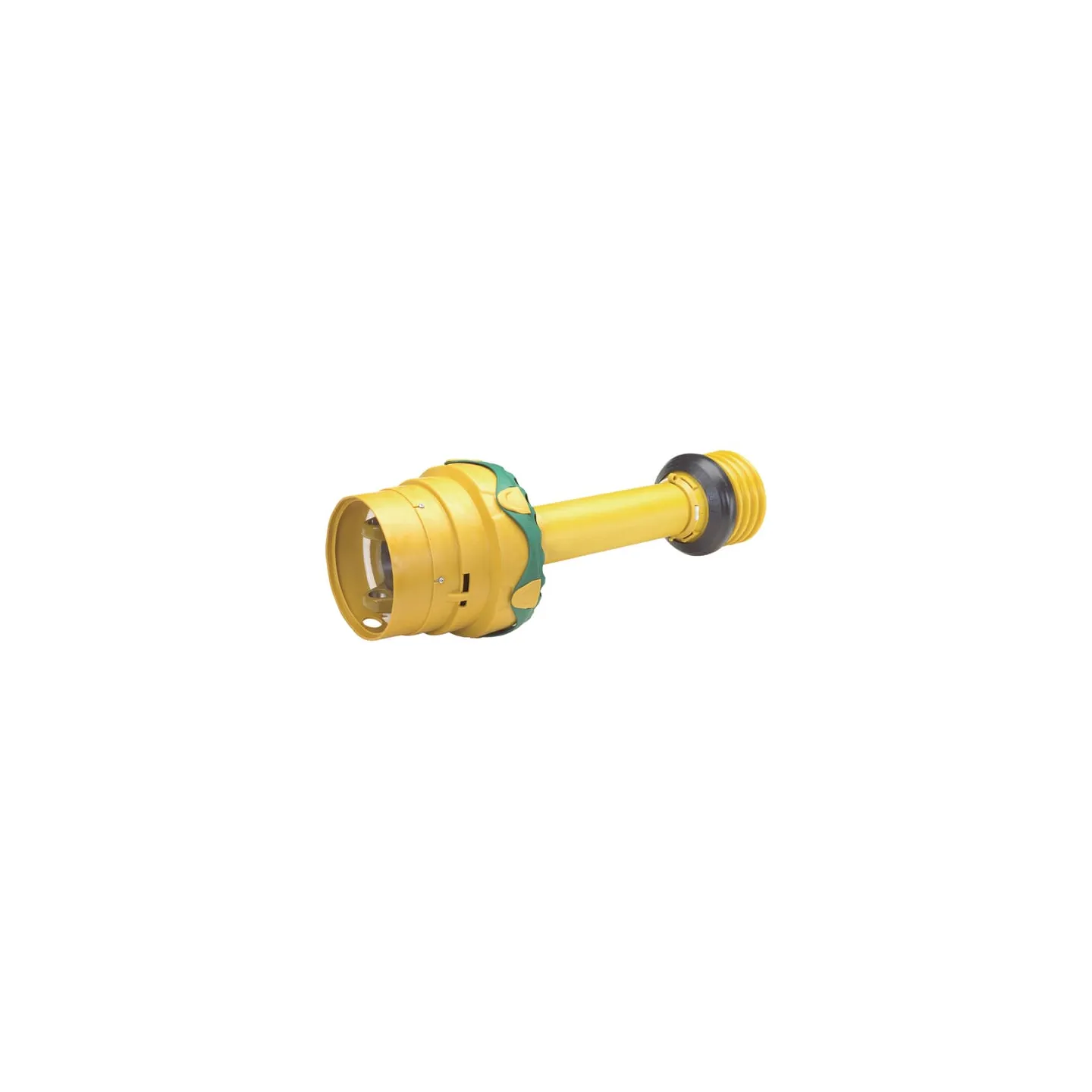

| Long description | Wide-angle PTO shafts 80° series WWE 2480 suitable for feed mixers, fertiliser machines, harvesters, loader wagons etc. | |
|---|
| Pros | - PTO shaft 1-sided wide-angle with safety guard
- Declaration of conformity
- User instructions
- Supplied without yokes
- Supplied without cross piece on wide-angle side
| |
|---|
| Product details | - PTO shaft 1-sided wide-angle with safety guard
- Declaration of conformity
- User instructions
- Lubricating interval of 8 hours
- Meets the requirements according to EC 89/392 EEC
- Meets safety standard EN12965
- Provided with "CE" marking
- Angle in continuous use maximum 25°
- Angle may be 80° only briefly
- Max. dyn. power 540 rpm: 39kW - 695Nm
- Max. dyn. power 1000 rpm: 61kW - 580Nm
- Values at bending angle 10° and service life 1000 hours
- LZ= Retracted length in mm, from cross to cross
| |
|---|
| Application range | - Mixing wagon
- Slurry wagon
- Harvesters
- Silage wagon
| |
|---|
| Properties | - Lubrication interval: 8 hours
- Fulfils EC 89/392 EEC requirements
- Complies with EN12965 safety standard
- CE marking available
| |
|---|
| Technical info | - Working angle with continuous use maximum 25º
- Working angle may only reach 80º briefly
- Max. dynamic capacity 540 rpm - 39 kW - 695 Nm
- Max. dynamic capacity 1000 rpm - 61 kW - 580 Nm
- Values at working angle 10° and service life 1000 hours
- LZ = slid-in length in mm, from intersection to intersection
| |
|---|
| Consists of | - Wide angle pto-shaft, 1 sided, with guard tube
- Declaration of conformity
- Instruction manual
- Delivery without yokes
- Delivery without cross journal on the wide-angle side
| |
|---|
| Size code | WWE 2480 | |
|---|
| Length | 1210 mm | |
|---|
| Cross joint bush diameter by tractor side - longer part | 27 mm | |
|---|
| Cross joint bush diameter by tractor side | 32 mm | |
|---|
| Cross joint length by tractor side - longer part | 94 mm | |
|---|
| Cross joint length by tractor side | 76 mm | |
|---|
| Cross joint bush diameter by machine side | 32 mm | |
|---|
| Cross joint length by machine side | 76 mm | |
|---|
| Outer tube profile | 2aG | |
|---|
| Inner tube profile | 1bGA | |
|---|
| Max static torque | 3800 N·m | |
|---|
| Protection type | SD25 | |
|---|
| Original number equivalent | 1800110 | |
|---|
| Additional info | *Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver. | |
|---|
