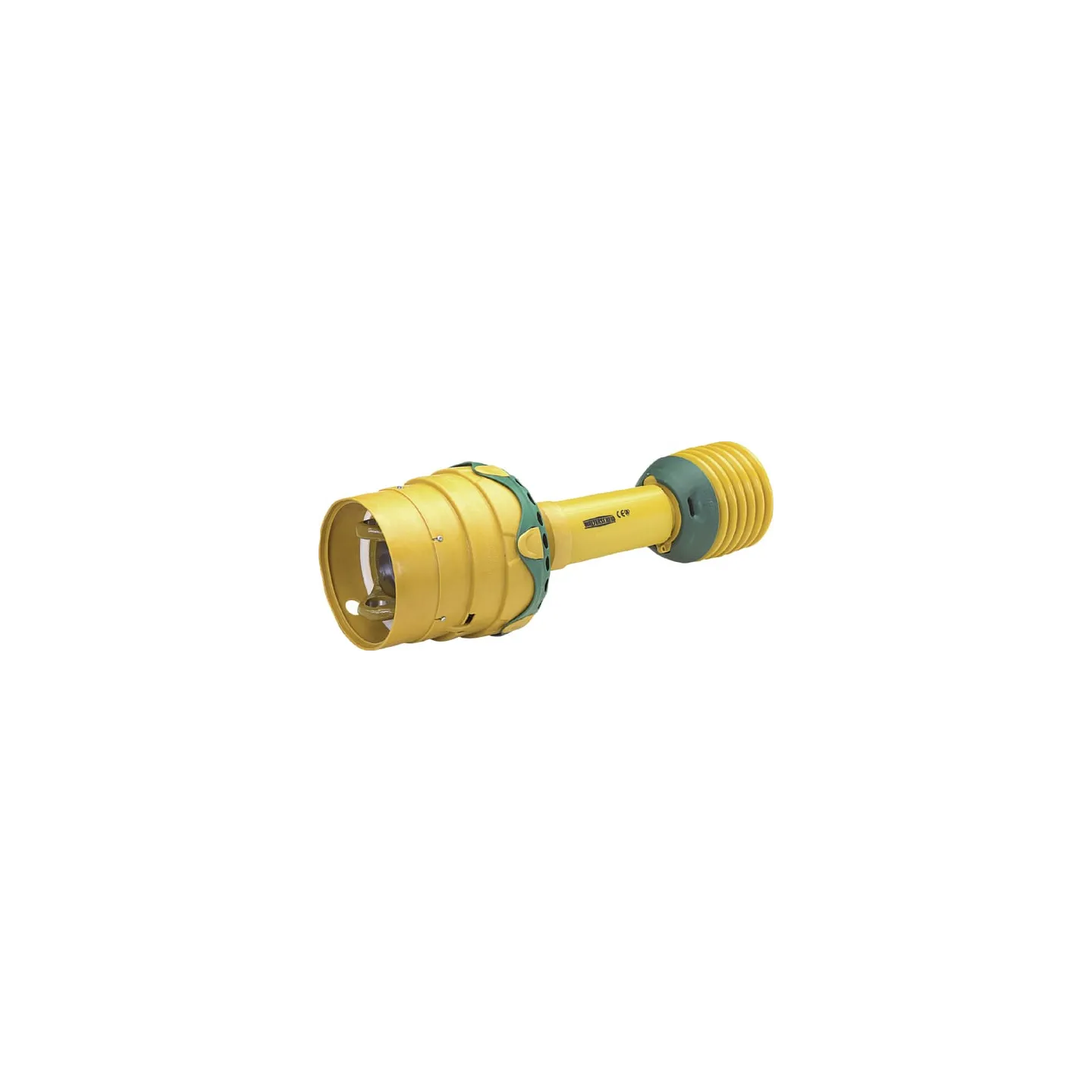

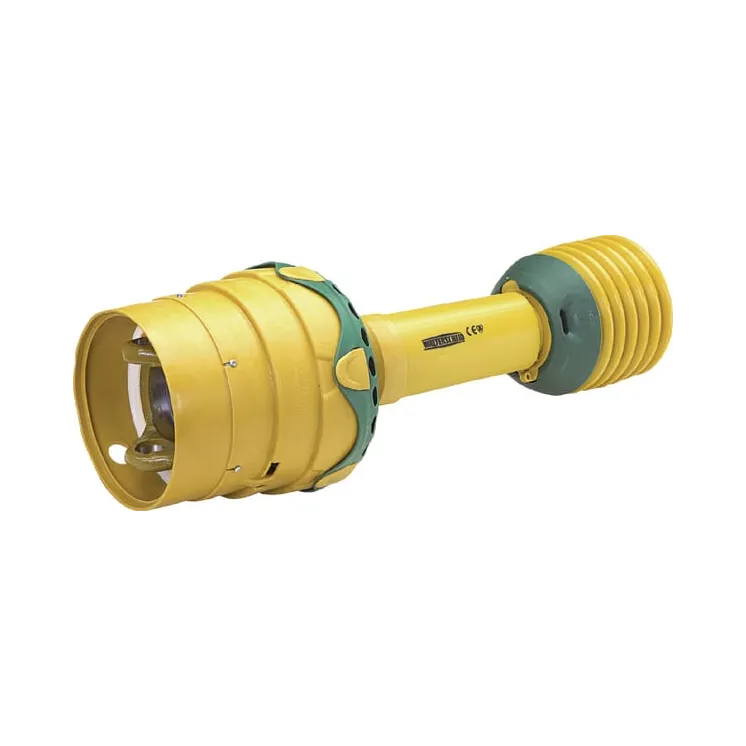

Kardānvārpsta bez jūgiem WWE 2580 L: 1210mm, WWE25801210OG Walterscheid 1113162 WWE25801210SDF

Kardānvārpsta bez jūgiem WWE 2580 L: 1210mm, WWE25801210OG 1113162 WWE25801210SDF

Name: Kardānvārpsta bez jūgiem WWE 2580 L: 1210mm, WWE25801210OG 1113162 WWE25801210SDF
Brand: Walterscheid
SKU: WWE25801210OG
Price: 1325.37 EUR
Availability: InStock

Apmaksas iespējas

1 325,37 €

AR PVN

4-5 Darba dienas

Kardānvārpsta bez jūgiem WWE 2580 L: 1210mm, WWE25801210OG Walterscheid 1113162 WWE25801210SDF

IR NOLIKTAVĀ

ID: 69987

Apraksts

Part number	WWE25801210OG
EAN
Unit	Each
Locking type by tractor side	Wide angle without UJ
Attachment tractor side	n/a
Locking type by machine side	Cross
Attachment machine side	n/a
Size code	WWE 2580
Length	1210 mm
Power 540 rpm	66 kW
Power 1000 rpm	102 kW
Cross joint bush diameter by tractor side - longer part	32 mm
Cross joint bush diameter by tractor side	36 mm
Cross joint length by tractor side - longer part	106 mm
Cross joint length by tractor side	89 mm
Cross joint bush diameter by machine side	36 mm
Cross joint length by machine side	89 mm
Outer tube profile	S5
Inner tube profile	S4GA
Profile tube shape	Star
Max static torque	3000 N·m
Protection type	SD25
Original number equivalent	1800114
Additional info	*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
