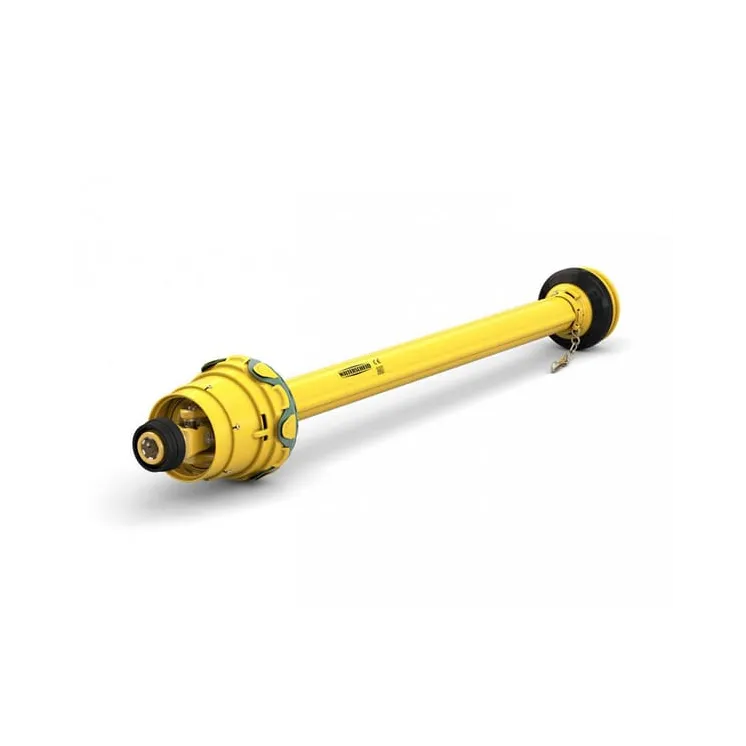

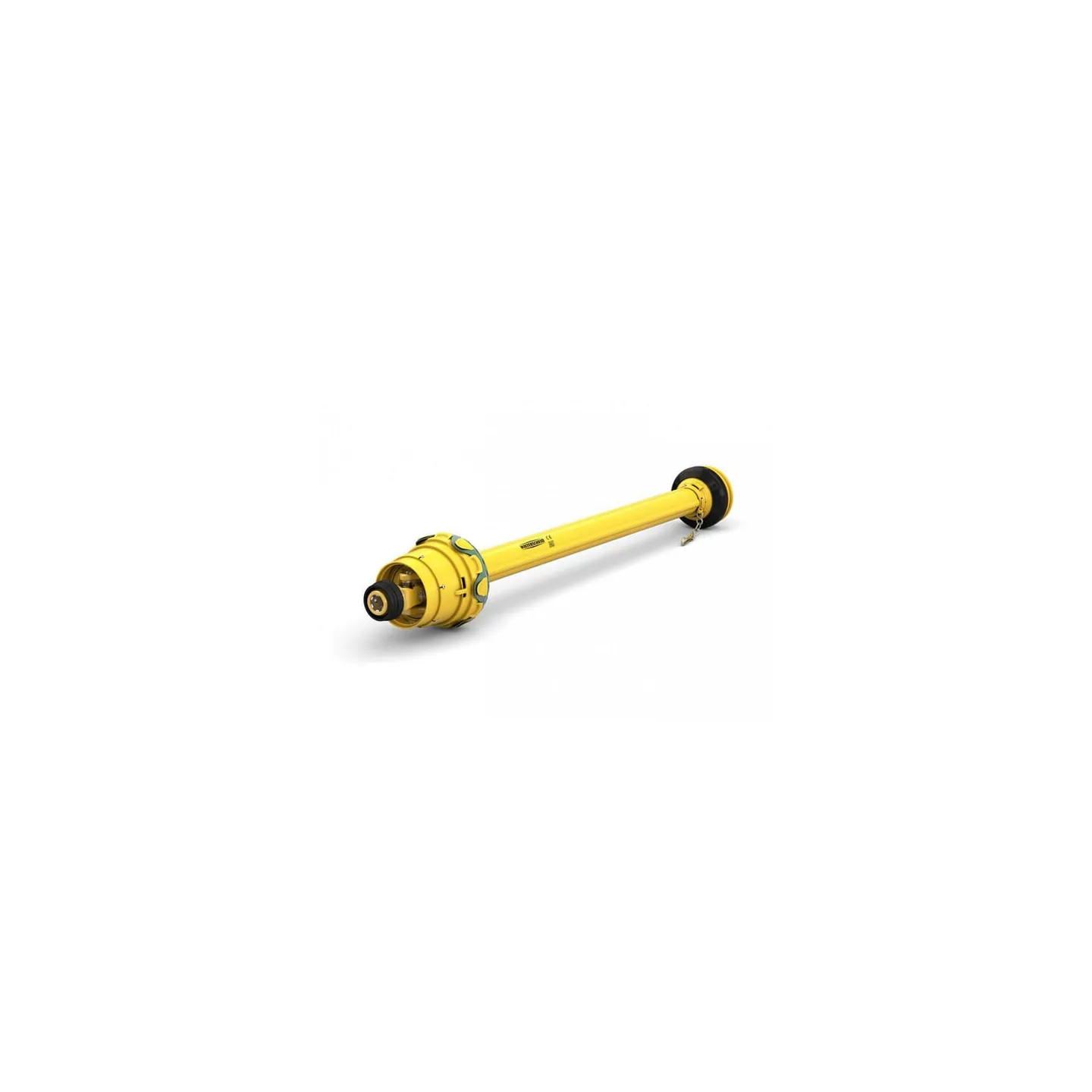

Platleņķa kardānvārpsta WWE 2280 L: 1210mm, WWE22801210 Walterscheid VTE1142
search
  • Platleņķa kardānvārpsta WWE 2280 L: 1210mm, WWE22801210 Walterscheid VTE1142

Platleņķa kardānvārpsta WWE 2280 L: 1210mm, WWE22801210 VTE1142

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
960,39 €
AR PVN
4-5 Darba dienas
Platleņķa kardānvārpsta WWE 2280 L: 1210mm, WWE22801210 Walterscheid VTE1142
IR NOLIKTAVĀ

69989

  • Zīmols
    Walterscheid
  • Norāde
    WWE22801210
  • Pieejamās vispirms
    3 vienības:
  • Stāvoklis
    Jauns
  • Citi kodi
    VTE1142
  • EAN
    8435194030397
Apmaksa
100% Droši maksājumi
Piegāde
Ātri piegādes risinājumi
Preču atgriešana
30 dienu preces atgriešanas iespēja

Komentāri (0)

Šobrid vēl nav klientu atsauksmju.
Part number
WWE22801210
EAN8435194030397
Unit
Each
Long description
Wide-angle CV PTO drive shafts complete 80° series WWE 2280 / 80°
Application range
  • Slurry tank
  • Crop sprayers
  • Drawn hay processing machine
Properties
  • Tractor side 1-3/8" (6) shaft collar kit
  • Device side 1-3/8" (6) slide pin
  • Lubrication interval: 8 hours
  • Fulfilling the requirements laid out in EC 89/392 EEC
  • Compliant with EN12965 safety standard
  • CE marking available
Technical info
  • Working angle with continuous use maximum 25º
  • Working angle may only briefly be 80º
  • Max. dynamic capacity 540 rpm: 20 kW, 335 Nm
  • Max. dynamic capacity 1000 rpm: 31 kW, 295 Nm
  • Values at working angle 5° and service life 1000 hours
  • LZ = slid in length centre distance of outer intersection
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by tractor side
6
Consists of
  • Wide angle pto-shaft, 1 sided, with guard tube
  • Declaration of conformity
  • Instruction manual
Locking type by tractor side
Collar lock
Attachment tractor side
Quick disconnect yoke
Connection outside diameter by machine side
1-3/8 Inch
Connection number of splines/grooves by machine side
6
Locking type by machine side
Automatic collar lock
Attachment machine side
Quick disconnect yoke
Size code
WWE 2280
Length
1210 mm
Power 540 rpm
20 kW
Power 1000 rpm
31 kW
Cross joint bush diameter by tractor side - longer part
22 mm
Cross joint bush diameter by tractor side
24 mm
Cross joint length by tractor side - longer part
76 mm
Cross joint length by tractor side
61 mm
Cross joint bush diameter by machine side
24 mm
Cross joint length by machine side
61 mm
Clutch type
n/a
Outer tube profile
1G
Outer tube wall thickness
2.7 mm
Outer tube large outside diameter
48 mm
Inner tube profile
OvGA
Inner tube wall thickness
4 mm
Inner tube large outside diameter
40 mm
Profile tube shape
Lemon
Max static torque
1850 N·m
Protection type
ST15
Original number equivalent
1800092
Additional info
*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
