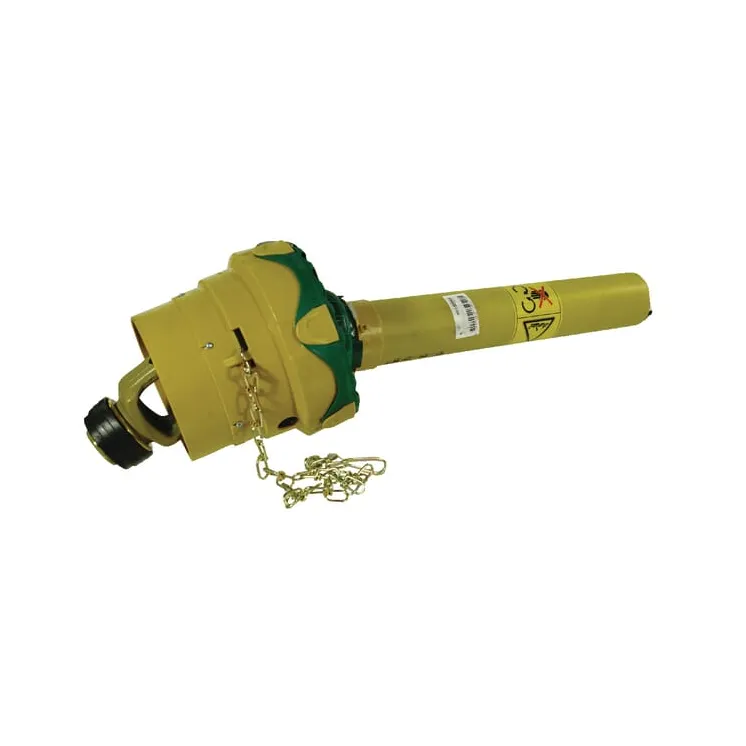

Platleņķa kardānvārpsta, iekšējais WW 2480 L: 1210mm, WWZ24801210I Walterscheid
search
  • Platleņķa kardānvārpsta, iekšējais WW 2480 L: 1210mm, WWZ24801210I Walterscheid

Platleņķa kardānvārpsta, iekšējais WW 2480 L: 1210mm, WWZ24801210I

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
1 045,94 €
AR PVN
4-5 Darba dienas
Platleņķa kardānvārpsta, iekšējais WW 2480 L: 1210mm, WWZ24801210I Walterscheid
IR NOLIKTAVĀ

70002

  • Zīmols
    Walterscheid
  • Norāde
    WWZ24801210I
  • Pieejamās vispirms
    2 vienības:
  • Stāvoklis
    Jauns
Apmaksa
100% Droši maksājumi
Piegāde
Ātri piegādes risinājumi
Preču atgriešana
30 dienu preces atgriešanas iespēja

Komentāri (0)

Šobrid vēl nav klientu atsauksmju.
Part number
WWZ24801210I
EAN
Unit
Each
Application range
  • Mixing wagon
  • Slurry wagon
  • Harvesters
  • Silage wagon
Properties
  • Tractor-side 1–3/8" (6) shaft collar kit
  • Lubrication interval: 8 hours
  • Fulfils EC 89/392 EEC requirements
  • Complies with EN12965 safety standard
  • CE marking available
Technical info
  • Working angle with continuous use maximum 25º
  • Working angle may only reach 80º briefly
  • Max. dynamic capacity 540 rpm - 39 kW - 695 Nm
  • Max. dynamic capacity 1000 rpm - 61 kW - 580 Nm
  • Values at working angle 10° and service life 1000 hours
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by tractor side
6
Consists of
  • Pto shaft with guard tube
  • Declaration of conformity
  • Instruction manual
Locking type by tractor side
Automatic collar lock
Attachment tractor side
Quick disconnect yoke
Locking type by machine side
n/a
Attachment machine side
n/a
Size code
WWH 2480
Length
1134 mm
Power 540 rpm
39 kW
Power 1000 rpm
61 kW
Cross joint bush diameter by tractor side - longer part
27 mm
Cross joint bush diameter by tractor side
32 mm
Cross joint length by tractor side - longer part
94 mm
Cross joint length by tractor side
76 mm
Cross joint bush diameter by machine side
32 mm
Cross joint length by machine side - longer part
94 mm
Cross joint length by machine side
76 mm
Clutch type
n/a
Inner tube profile
1bGA
Inner tube wall thickness
4.5 mm
Inner tube large outside diameter
49 mm
Profile tube shape
Lemon
Max static torque
4000 N·m
Protection type
SD25
Original number equivalent
1113193
Additional info
*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
