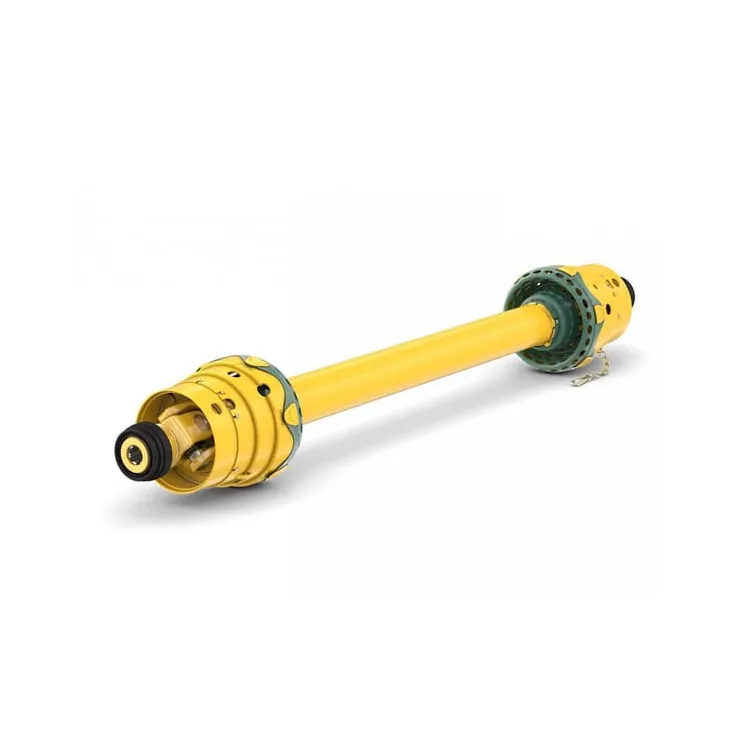

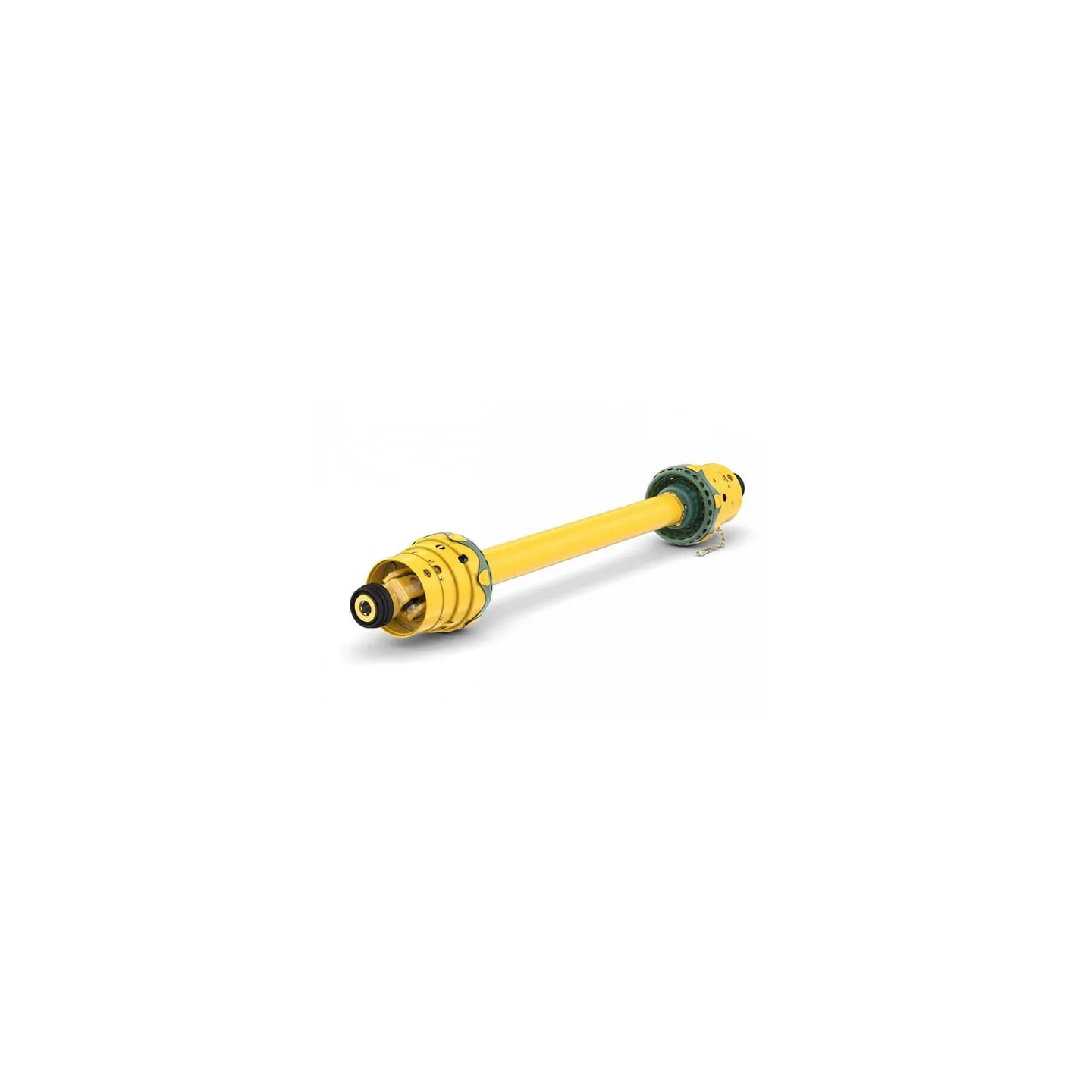

Platleņķa kardānvārpsta WWZ 2280 L: 1210mm, WWZ22801210

Name: Platleņķa kardānvārpsta WWZ 2280 L: 1210mm, WWZ22801210
Brand: Walterscheid
SKU: WWZ22801210
Price: 1625.62 EUR
Availability: BackOrder

Apmaksas iespējas

1 625,62 €

AR PVN

Pēc pieprasījuma

Platleņķa kardānvārpsta WWZ 2280 L: 1210mm, WWZ22801210 Walterscheid

Uz pasūtījumu

ID: 70004

Apraksts

Part number	WWZ22801210
EAN	8435194196529
Unit	Each
Long description	Wide-angle CV PTO drive shafts complete 80° series WWZ 2280 / 80°
Application range	Slurry tank Crop sprayers Drawn hay processing machine
Properties	Tractor side 1-3/8" (6) shaft collar kit Device side 1-3/8" (6) slide pin Lubrication interval: 8 hours Fulfilling the requirements laid out in EC 89/392 EEC Compliant with EN12965 safety standard CE marking available
Technical info	Working angle with continuous use maximum 25º Working angle may only briefly be 80º Max. dynamic capacity 540 rpm: 20 kW, 335 Nm Max. dynamic capacity 1000 rpm: 31 kW, 295 Nm Values at working angle 5° and service life 1000 hours LZ = slid in length centre distance of outer intersection
Connection outside diameter by tractor side	1-3/8 Inch
Connection number of splines/grooves by tractor side	6
Consists of	Wide angle pto-shaft, 2 sided, with guard tube Declaration of conformity Instruction manual
Locking type by tractor side	Collar lock
Attachment tractor side	Quick disconnect yoke
Connection outside diameter by machine side	1-3/8 Inch
Connection number of splines/grooves by machine side	6
Locking type by machine side	Collar lock
Attachment machine side	Quick disconnect yoke
Size code	WWZ 2280
Length	1210 mm
Power 540 rpm	20 kW
Power 1000 rpm	31 kW
Cross joint bush diameter by tractor side - longer part	22 mm
Cross joint bush diameter by tractor side	24 mm
Cross joint length by tractor side - longer part	76 mm
Cross joint length by tractor side	61 mm
Cross joint bush diameter by machine side - longer part	22 mm
Cross joint bush diameter by machine side	24 mm
Cross joint length by machine side - longer part	76 mm
Cross joint length by machine side	61 mm
Clutch type	n/a
Outer tube profile	1G
Outer tube wall thickness	2.7 mm
Outer tube large outside diameter	48 mm
Inner tube profile	OvGA
Inner tube wall thickness	4 mm
Inner tube large outside diameter	40 mm
Profile tube shape	Lemon
Max static torque	1850 N·m
Protection type	ST15
Original number equivalent	1800116
Additional info	*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
