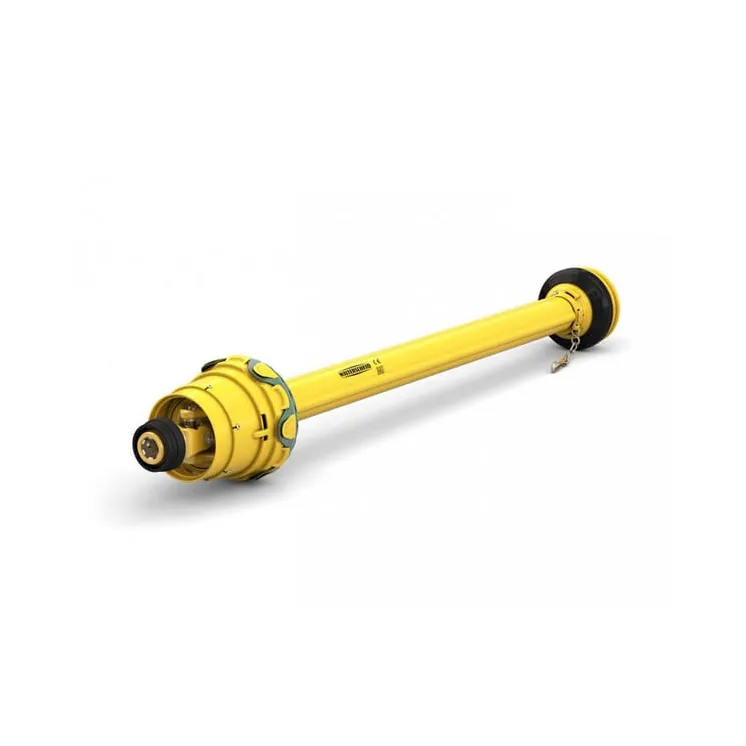

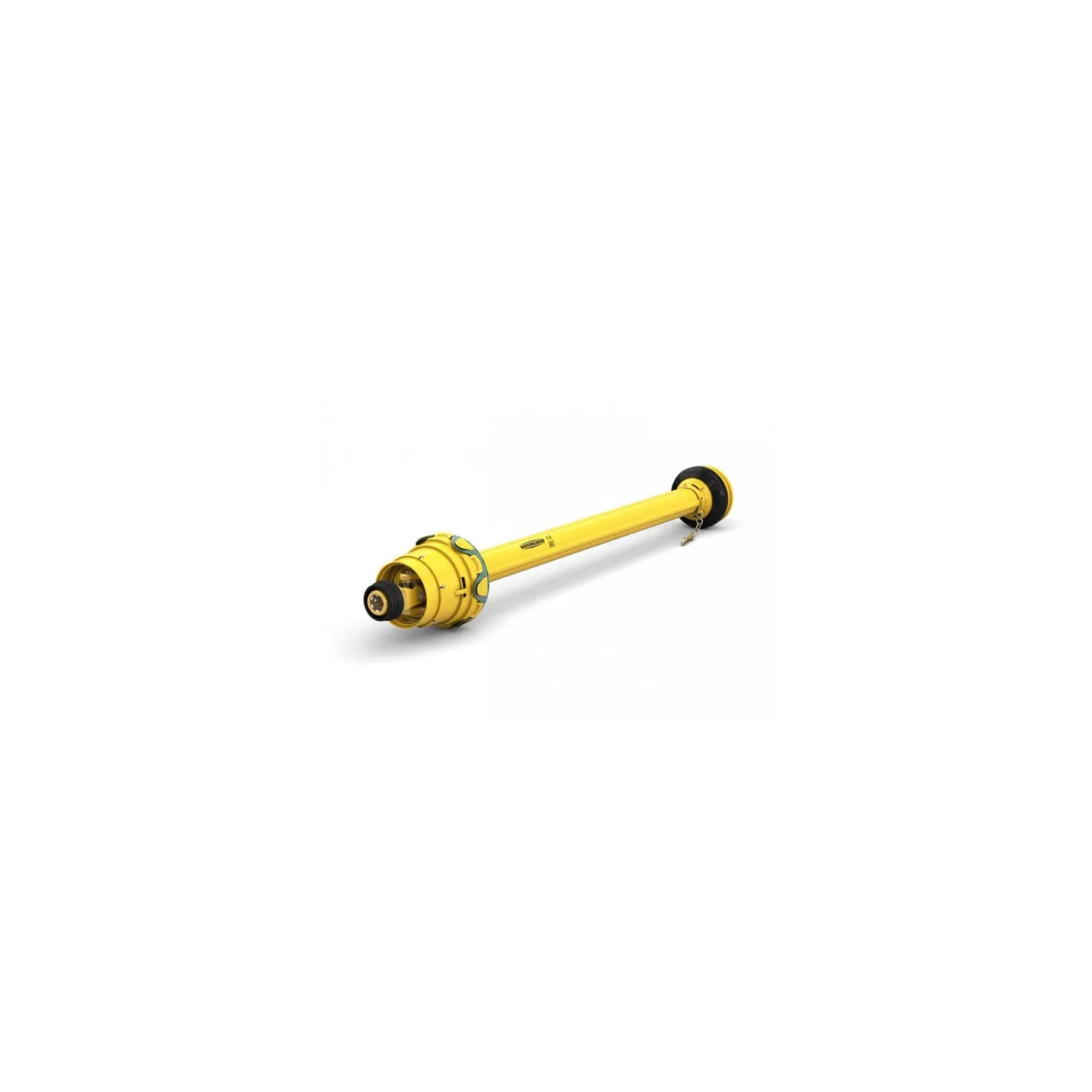

Platleņķa kardānvārpsta WWE 2480 L: 860mm, WWE2480860

Name: Platleņķa kardānvārpsta WWE 2480 L: 860mm, WWE2480860
Brand: Walterscheid
SKU: WWE2480860
Price: 1178.95 EUR
Availability: InStock

Apmaksas iespējas

1 178,95 €

AR PVN

4-5 Darba dienas

Platleņķa kardānvārpsta WWE 2480 L: 860mm, WWE2480860 Walterscheid

IR NOLIKTAVĀ

ID: 70019

Apraksts

Part number	WWE2480860
EAN	8432970200050
Unit	Each
Long description	Wide-angle PTO shafts 80° series WWE 2480 / 80°
Product details	PTO shaft 1-sided wide-angle with safety guard Declaration of conformity User instructions- Tractor side 1-3/8" (6) puller fastening Machine side 1-3/8" (6) spring pin Lubricating interval of 8 hours Meets the requirements according to EC 89/392 EEC Meets safety standard EN12965 Provided with "CE" marking-Angle in continuous use maximum 25º Angle may be 80° only briefly Max. dyn. power 540 rpm: 39kW - 695Nm Max. dyn. power 1000 rpm: 61kW - 580Nm Values at bending angle 10° and service life 1000 hours LZ= Retracted length c.t.c. outer cross
Application range	Mixing wagon Slurry wagon Harvesters Silage wagon
Properties	Tractor side 1-3/8" (6) shaft collar kit Device side 1-3/8" (6) slide pin Lubrication interval: 8 hours Fulfilling the requirements laid out in EC 89/392 EEC Compliant with EN12965 safety standard CE marking available
Technical info	Working angle with continuous use maximum 25º Working angle may only briefly be 80º Max. dynamic capacity 540 rpm: 39 kW, 695 Nm Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm Values at working angle 10° and service life 1000 hours LZ = slid in length centre distance of outer intersection
Connection outside diameter by tractor side	1-3/8 Inch
Connection number of splines/grooves by tractor side	6
Consists of	Wide angle pto-shaft, 1 sided, with guard tube Declaration of conformity Instruction manual
Locking type by tractor side	Collar lock
Attachment tractor side	Quick disconnect yoke
Connection outside diameter by machine side	1-3/8 Inch
Connection number of splines/grooves by machine side	6
Locking type by machine side	Collar lock
Attachment machine side	Quick disconnect yoke
Size code	WWE 2480
Length	860 mm
Power 540 rpm	39 kW
Power 1000 rpm	61 kW
Cross joint bush diameter by tractor side - longer part	27 mm
Cross joint bush diameter by tractor side	32 mm
Cross joint length by tractor side - longer part	94 mm
Cross joint length by tractor side	76 mm
Cross joint bush diameter by machine side	32 mm
Cross joint length by machine side	76 mm
Clutch type	n/a
Outer tube profile	2aG
Outer tube wall thickness	3.5 mm
Outer tube large outside diameter	57.5 mm
Inner tube profile	1bGA
Inner tube wall thickness	4.5 mm
Inner tube large outside diameter	49 mm
Profile tube shape	Lemon
Max static torque	4000 N·m
Protection type	ST25
Original number equivalent	1800097
