Savācēja sakabe, ieliktnis K80 00428006A20 Scharmüller 00428003 00428003A20 00428005A20

Savācēja sakabe, ieliktnis K80 00428006A20 00428003 00428003A20 00428005A20

Name: Savācēja sakabe, ieliktnis K80 00428006A20 00428003 00428003A20 00428005A20
Brand: Scharmüller
SKU: 00428006A20
Price: 1158.04 EUR
Availability: BackOrder

Apmaksas iespējas

1 158,04 €

AR PVN

Pēc pieprasījuma

Savācēja sakabe, ieliktnis K80 00428006A20 Scharmüller 00428003 00428003A20 00428005A20

Uz pasūtījumu

ID: 77613

Apraksts

Part number	00428006A20
EAN
Unit	Each

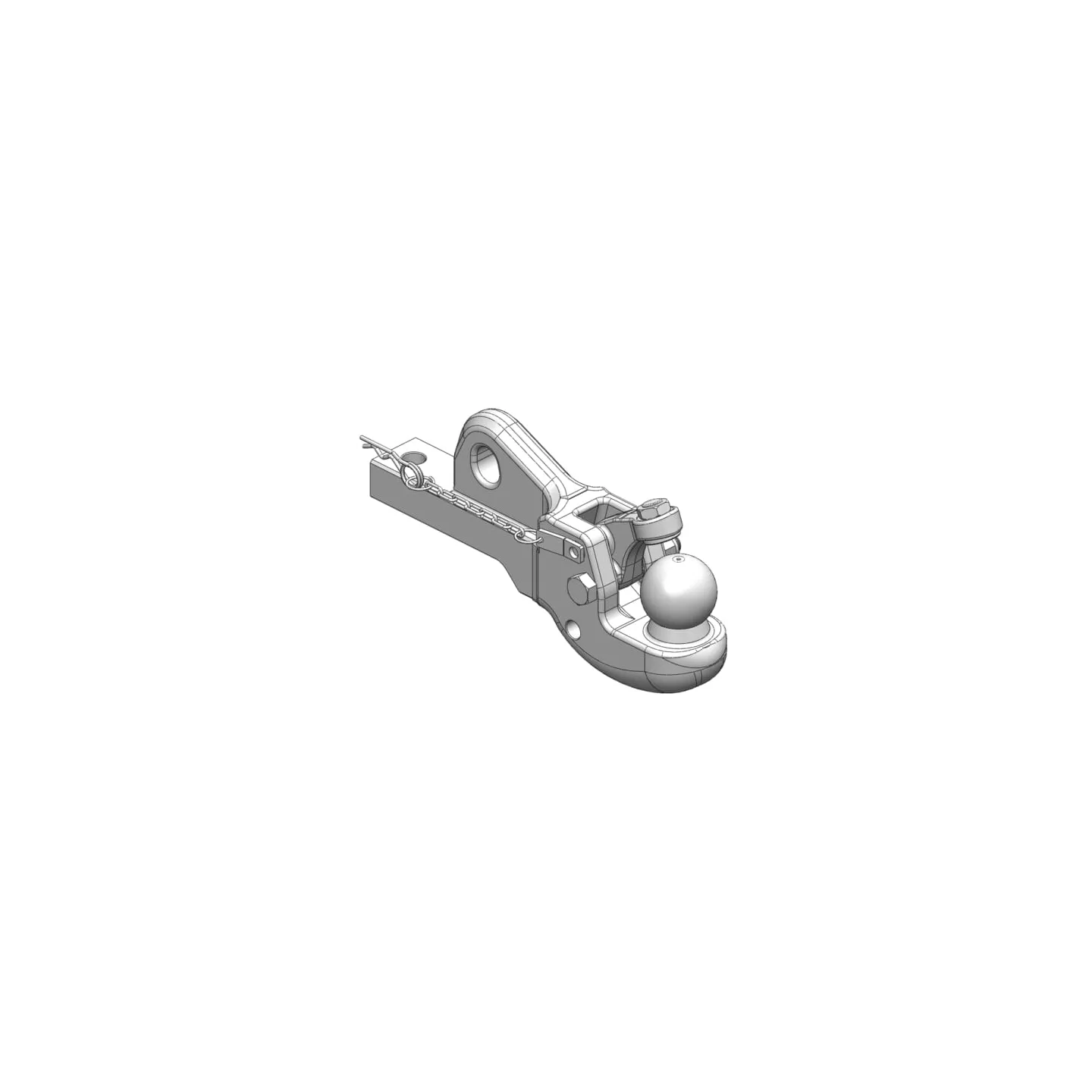

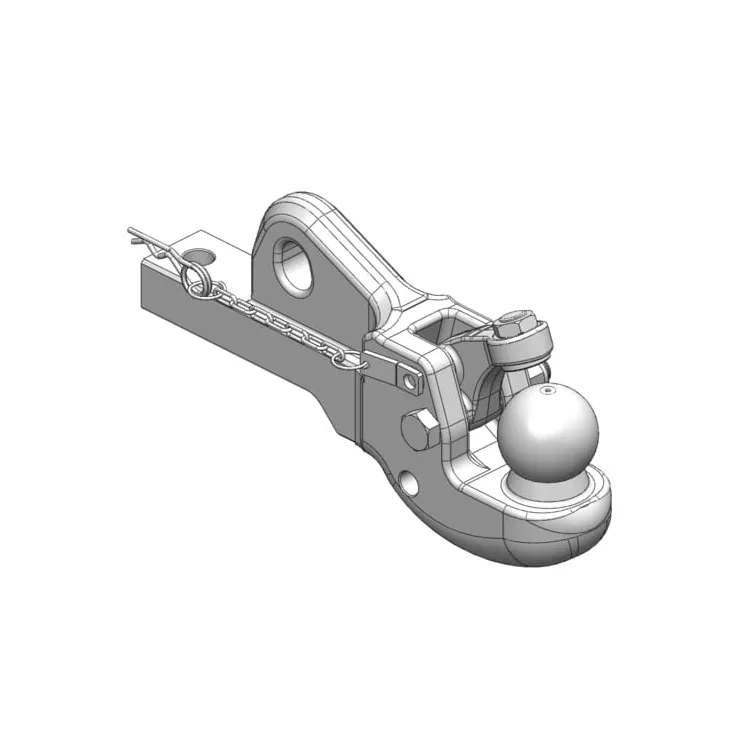

Properties	K80 tow ball coupler system Tested to ISO 24347
Ball hook diameter	80 mm
Capacity	3000 kg
Colour	Red
DCvalue	86.1 kN
Hole diameter	25 mm
Length	469 mm
Towing eye inside diameter (main hole)	25 mm
Max. vertical load	3000 kg
Mounting holes diameter	25 mm
Discharge_mm	390 mm
Shaft width (diameter)	45 mm 70 mm
Suitable for machine/vehicle brand	John Deere
Suitable for machine/vehicle model	John Deere: 6010 [6010, 6110, 6210, 6310, 6410, 6510, 6610, 6810, 6910], 6020 [6020, 6120, 6220, 6320, 6420, 6520, 6620, 6820, 6920], 6030 [6130, 6230, 6330, 6430, 6530, 6534, 6630, 6830, 6930], 6R [6105, 6110, 6115, 6120, 6125, 6130, 6135, 6140, 6145, 6150, 6155, 6170, 6190, 6210], 7020 [7220, 7320, 7420, 7520, 7720, 7820, 7920], 7030 [7130, 7230, 7330, 7430, 7530, 7730, 7830, 7930], 8010 [8110, Show more
Total length	469 mm
Working length	390 mm
