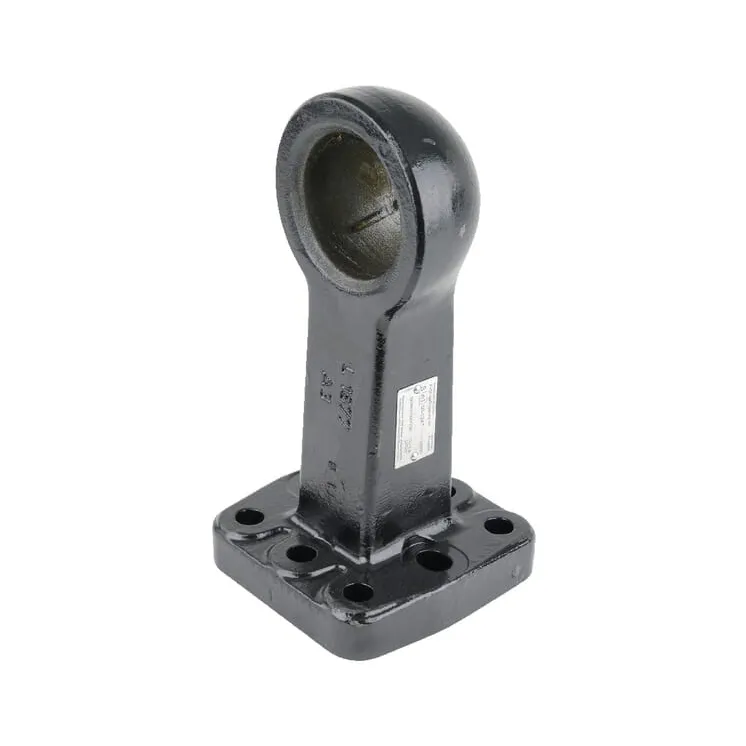

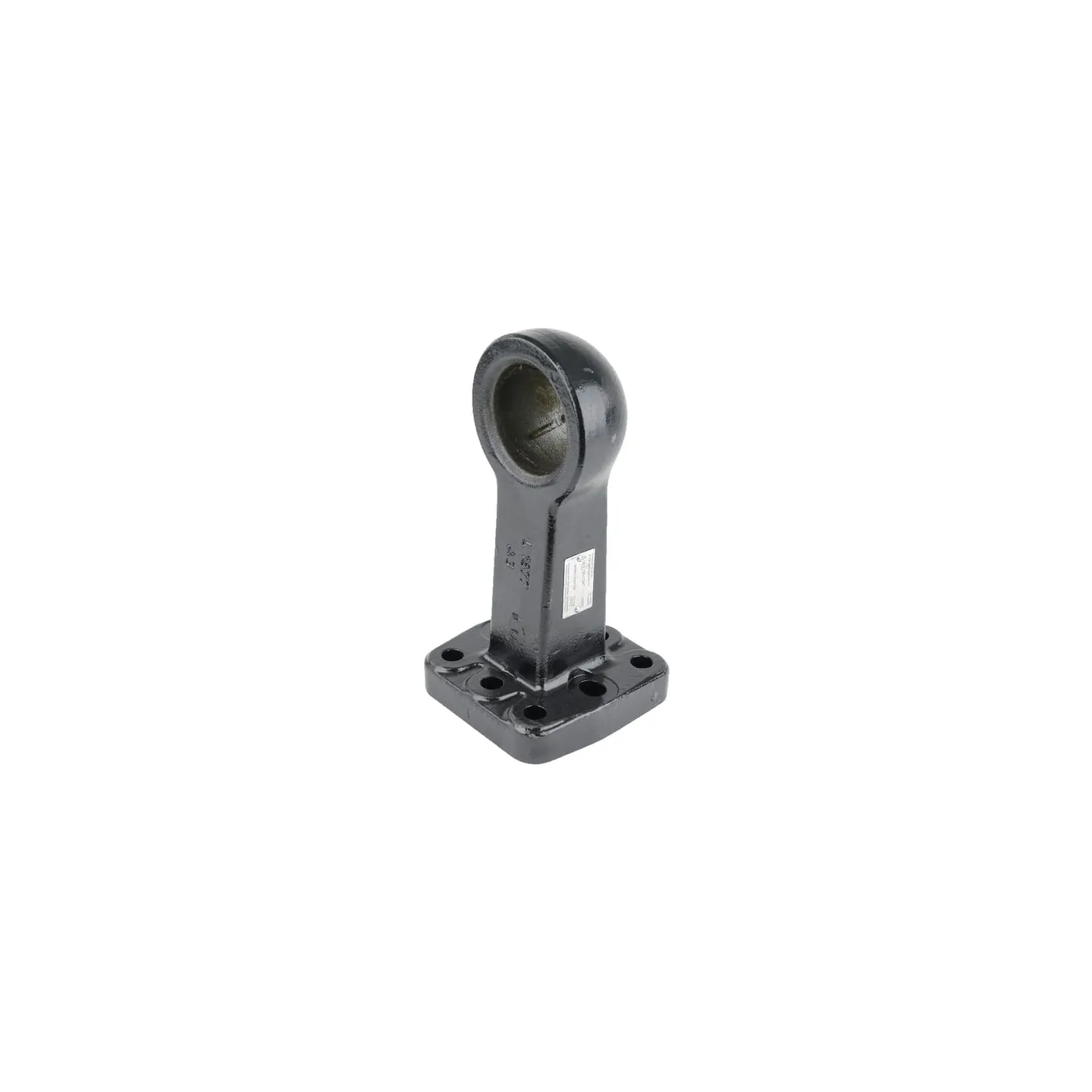

Sakabes cilpa ar vertikālu atloku K80 00652921A02

Name: Sakabes cilpa ar vertikālu atloku K80 00652921A02
Brand: Scharmüller
SKU: 00652921A02
Price: 491.38 EUR
Availability: InStock

Apmaksas iespējas

491,38 €

AR PVN

4-5 Darba dienas

Sakabes cilpa ar vertikālu atloku K80 00652921A02 Scharmüller

IR NOLIKTAVĀ

ID: 77751

Apraksts

Part number	00652921A02
EAN
Unit	Each
Details	K80 creates a clearance free connection Less wear
Application range	Mainly for use on heavy agricultural and forestry rigid axle drawbar trailers. For connection to 80mm coupling ball
Properties	Weight: ±19 kg Tested to ISO 24347
Capacity	3000 kg
Colour	Black
DCvalue	89.3 kN
Towing eye inside diameter (main hole)	80 mm
Max. vertical load	3000 kg
Discharge_mm	243 mm
Number of holes	8
Thread	M16
Thread diameter	M16
Total length	240 mm
Total width	154 mm
