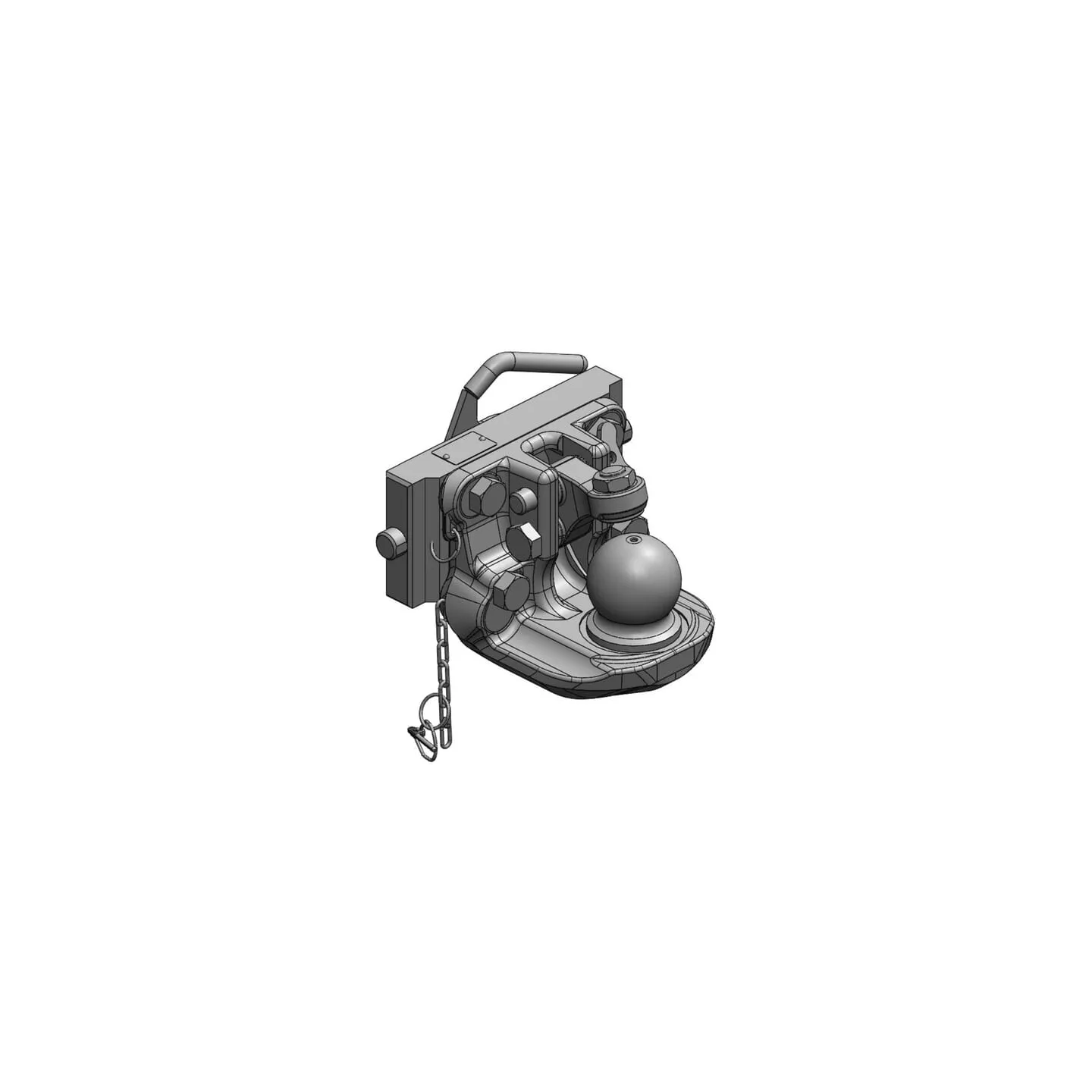

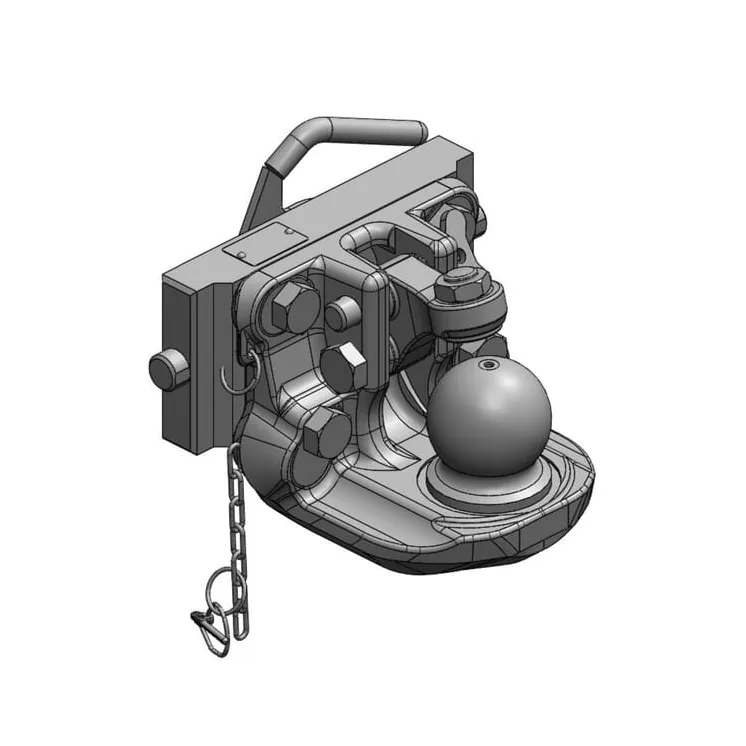

• Piekabes sakabe K80 03625535A02 Scharmüller 03625035A02

Piekabes sakabe K80 03625535A02 03625035A02

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
1 082,53 €
AR PVN
Pēc pieprasījuma
Piekabes sakabe K80 03625535A02 Scharmüller 03625035A02
Uz pasūtījumu

78290

Part number
03625535A02
EAN
Unit
Each
Application range
  • Couplers of the following ABGs can be coupled:
  • M9679, M9680, M9614, M9615, M9622, M9625, M9785, M9711, M9712 and with tow ball couplers to ISO 24347.
Properties
Optional retrofit with forced steering (right, left, both sides)
Benefits
  • Optimum driving comfort thanks to minimum clearance between vehicle and trailer
  • High support load
  • Larger axial and vertical swivel angle than with Piton-Fix and bolt couplings
  • Low wear and long service life
Track width
255 mm
Track thickness
32 mm
Locking pin diameter
25 mm
Adapter plate height
120 mm
Max. permissible D-Value
83.9 kN
Max. permissible vertical load
2000 kg
Colour
Black
Type
K80® Manual
Thread diameter
M20
Working length
155 mm
Extra info
Height Adjustable with Grabhandle
  • Citi kodi
    03625035A02
