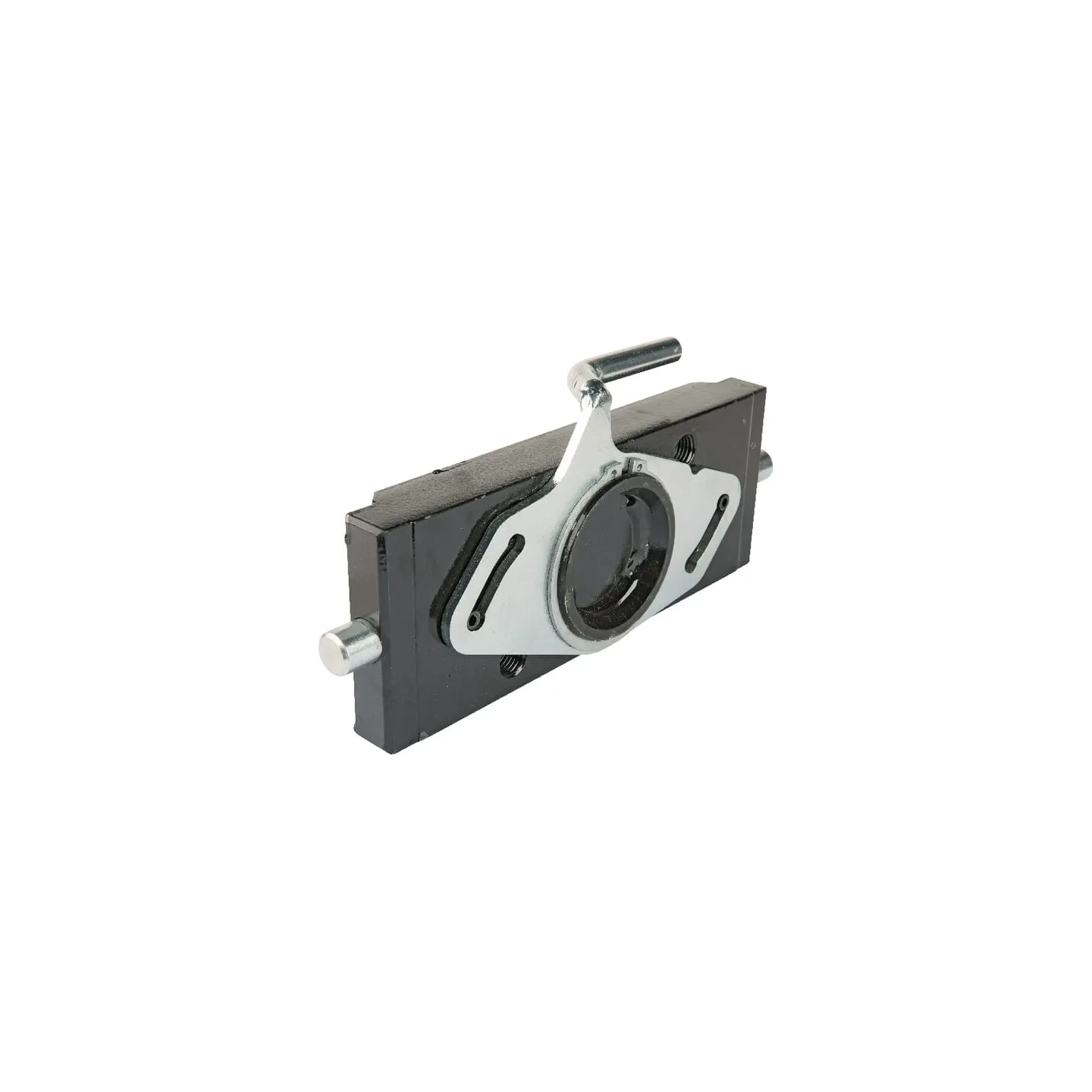

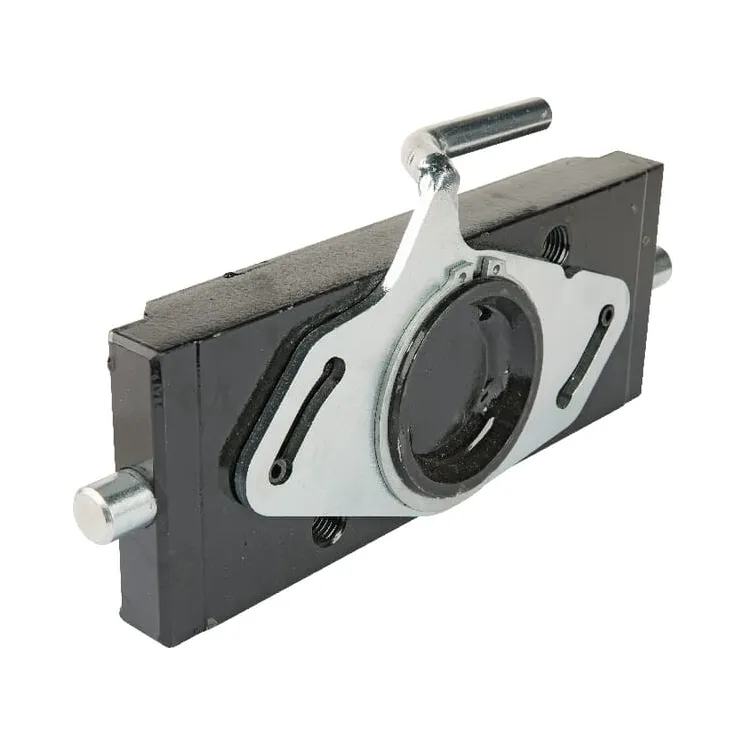

Adaptera plāksne W310 S28 Archetti 03731042A02

Name: Adaptera plāksne W310 S28 Archetti 03731042A02
Brand: Scharmüller
SKU: 03731042A02
Price: 483.31 EUR
Availability: BackOrder

Apmaksas iespējas

483,31 €

AR PVN

Pēc pieprasījuma

Adaptera plāksne W310 S28 Archetti 03731042A02 Scharmüller

Uz pasūtījumu

ID: 78294

Apraksts

Part number	03731042A02
EAN
Unit	Each
Technical info	Strength class 10.9 bolts must be used to mount the coupling on the adapter plate M16 bolts must be tightened to a torque of 300 Nm M20 bolts must be tightened to a torque of 590 Nm
Thread diameter	M20
Locking pin diameter	22 mm
Adapter plate height	120 mm
Manufacturer	Scharmüller
Capacity	2000 kg
Colour	Black
DCvalue	83.9 kN
Designed for	Archetti
Height	120 mm
DC value	83.9 kN
Width / hole centres	140x80 mm
Number of holes	4
Track width	310 mm
Type	Height Adjustable with Grabhandle
Width	28 mm
