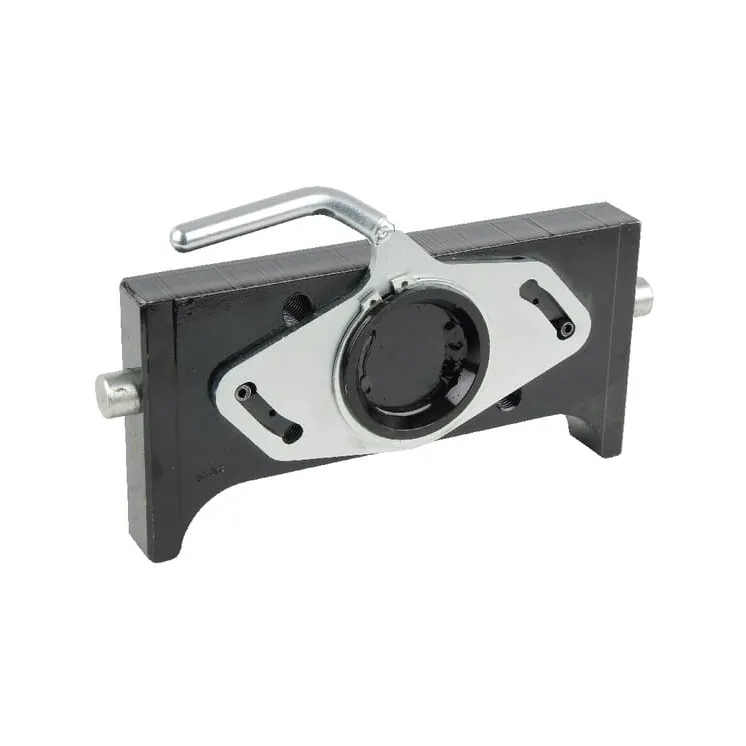

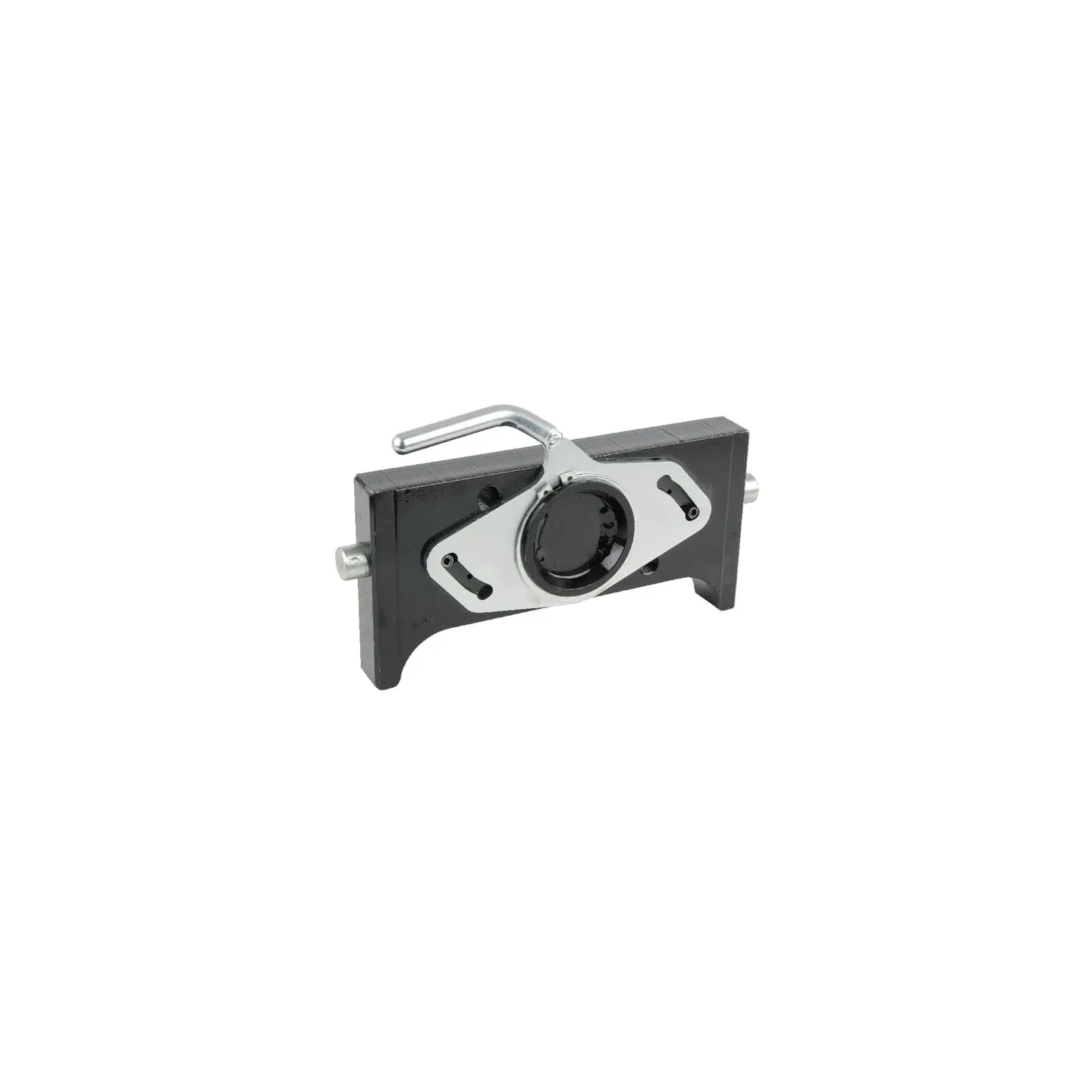

Adaptera plāksne 320 mm Orlandi 03732050A02 Scharmüller 03732050

Adaptera plāksne 320 mm Orlandi 03732050A02 03732050

Name: Adaptera plāksne 320 mm Orlandi 03732050A02 03732050
Brand: Scharmüller
SKU: 03732050A02
Price: 483.31 EUR
Availability: BackOrder

Apmaksas iespējas

483,31 €

AR PVN

Pēc pieprasījuma

Adaptera plāksne 320 mm Orlandi 03732050A02 Scharmüller 03732050

Uz pasūtījumu

ID: 78327

Apraksts

Part number	03732050A02
EAN
Unit	Each
Technical info	Strength class 10.9 bolts must be used to mount the coupling on the adapter plate M16 bolts must be tightened to a torque of 300 Nm M20 bolts must be tightened to a torque of 590 Nm
Thread diameter	M20
Locking pin diameter	25 mm
Adapter plate height	160 mm
Manufacturer	Scharmüller
Capacity	2000 kg
Colour	Black
DCvalue	83.9 kN
Height	160 mm
DC value	82.4 kN
Width / hole centres	140 x 80 mm
Number of holes	4
Track width	320 mm
Type	Height Adjustable with Grabhandle
Width	38 mm
