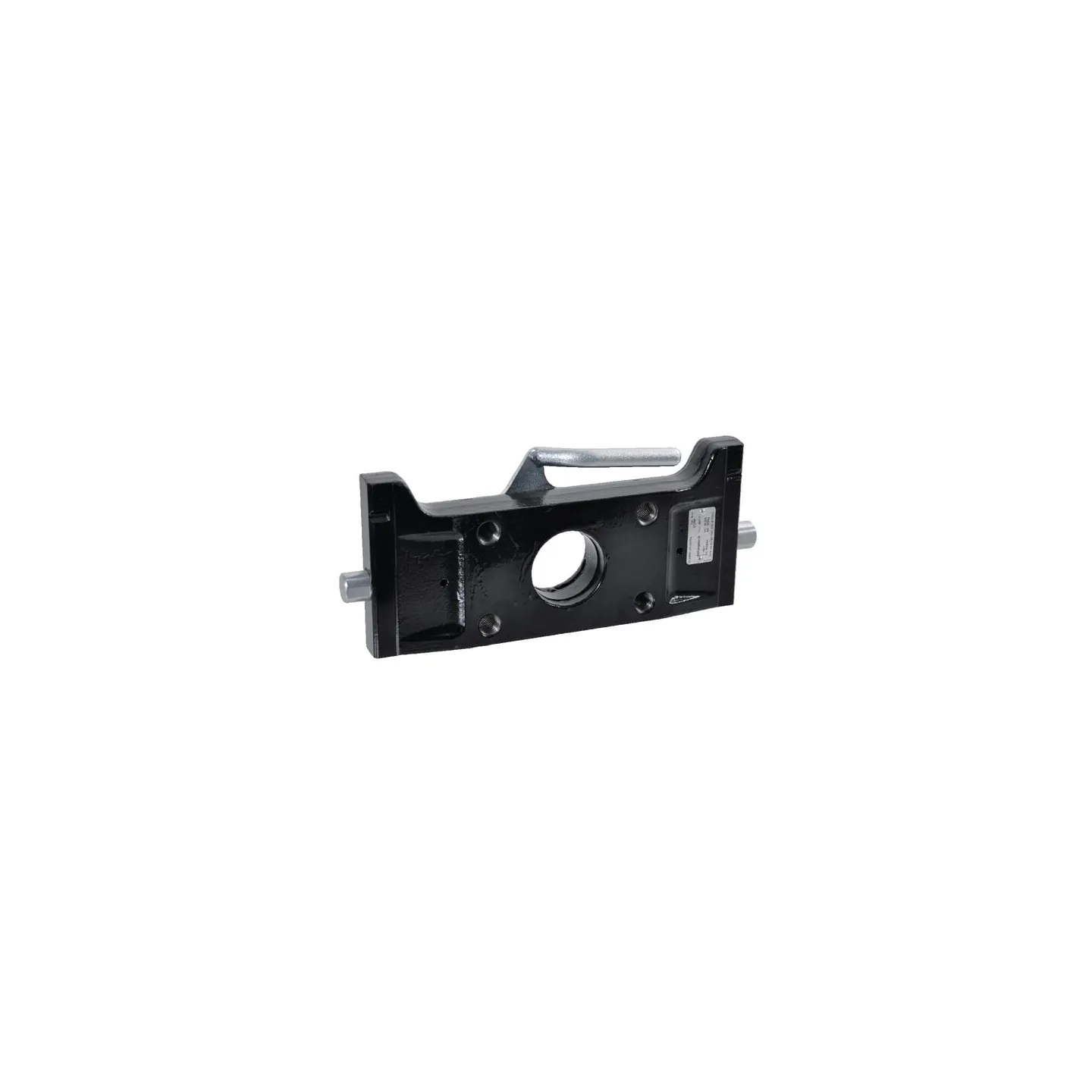

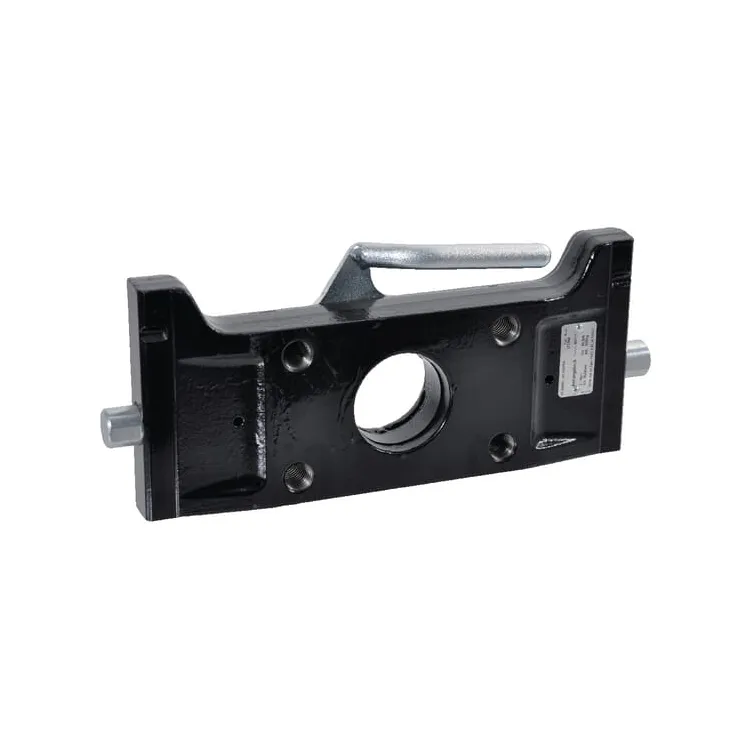

Adaptera plāksne 329 mm 07733052A02 Scharmüller 03733042 03733052 07733052

Adaptera plāksne 329 mm 07733052A02 03733042 03733052 07733052

Name: Adaptera plāksne 329 mm 07733052A02 03733042 03733052 07733052
Brand: Scharmüller
SKU: 07733052A02
Price: 483.31 EUR
Availability: InStock

Apmaksas iespējas

483,31 €

AR PVN

4-5 Darba dienas

Adaptera plāksne 329 mm 07733052A02 Scharmüller 03733042 03733052 07733052

IR NOLIKTAVĀ

ID: 78402

Apraksts

Part number	07733052A02
EAN
Unit	Each
Technical info	Strength class 10.9 bolts must be used to mount the coupling on the adapter plate M16 bolts must be tightened to a torque of 300 Nm M20 bolts must be tightened to a torque of 590 Nm
Thread diameter	M20
Locking pin diameter	25 mm
Adapter plate height	150 mm
Manufacturer	Scharmüller
Capacity	3000 kg
Colour	Black
DCvalue	89.3 kN
Height	150 mm
DC value	89.3 kN
Width / hole centres	140 x 80 mm
Number of holes	4
Track width	329 mm
Type	Pins 25mm
Width	32 mm
