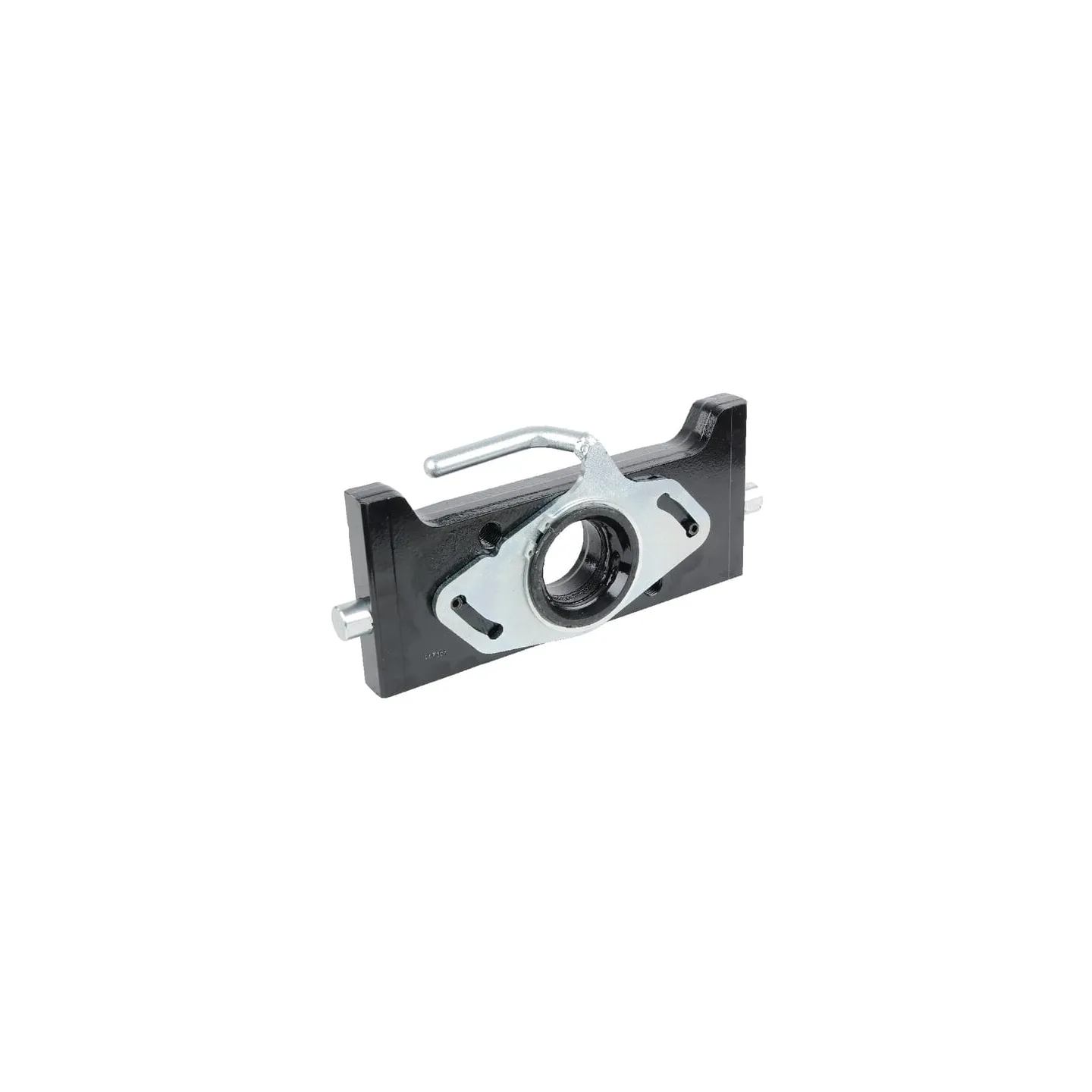

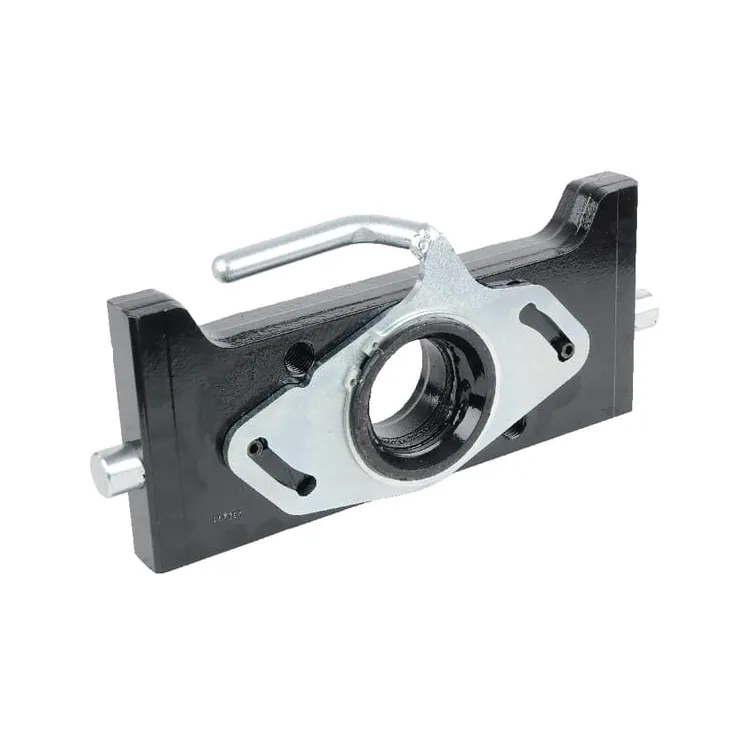

Adaptera plāksne 335mm H150 07733552A11 Scharmüller 03733542 03733552 07733552 07733552A24

Adaptera plāksne 335mm H150 07733552A11 03733542 03733552 07733552 07733552A24

Name: Adaptera plāksne 335mm H150 07733552A11 03733542 03733552 07733552 07733552A24
Brand: Scharmüller
SKU: 07733552A11
Price: 473.64 EUR
Availability: BackOrder

Apmaksas iespējas

473,64 €

AR PVN

Pēc pieprasījuma

Adaptera plāksne 335mm H150 07733552A11 Scharmüller 03733542 03733552 07733552 07733552A24

Uz pasūtījumu

ID: 78408

Apraksts

Part number	07733552A11
EAN
Unit	Each
Technical info	Strength class 10.9 bolts must be used to mount the coupling on the adapter plate M16 bolts must be tightened to a torque of 300 Nm M20 bolts must be tightened to a torque of 590 Nm
Capacity	3000 kg
Colour	MF Grey
DCvalue	89.3 kN
Height	150 mm
Manufacturer	Scharmüller
DC value	89.3 kN
Locking pin Ø	22 mm
Ø Bore	M20 mm
Width / hole centres	140 x 80 mm
Number of holes	4
Thread	M20
Track width	335 mm
Type	Height Adjustable with Grabhandle
Width	30 mm
