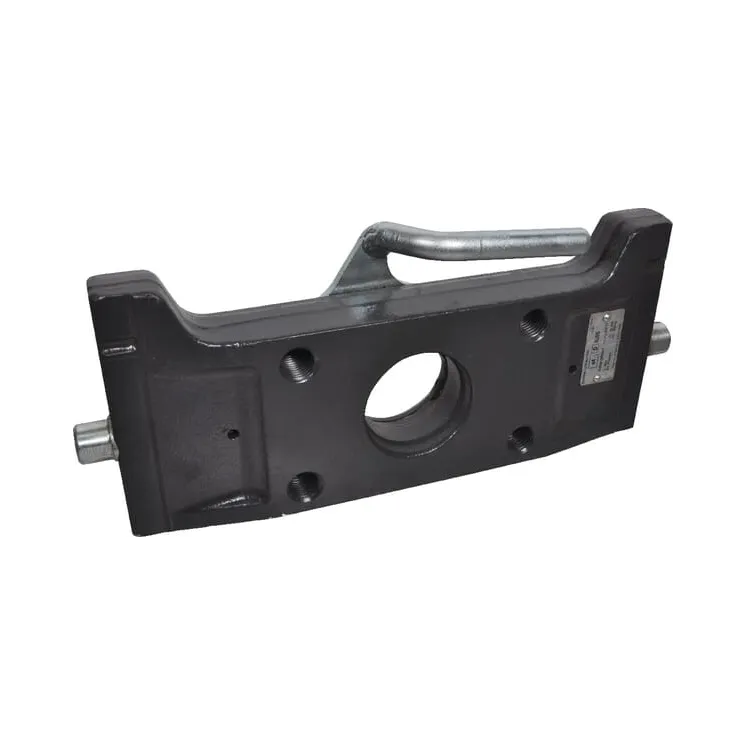

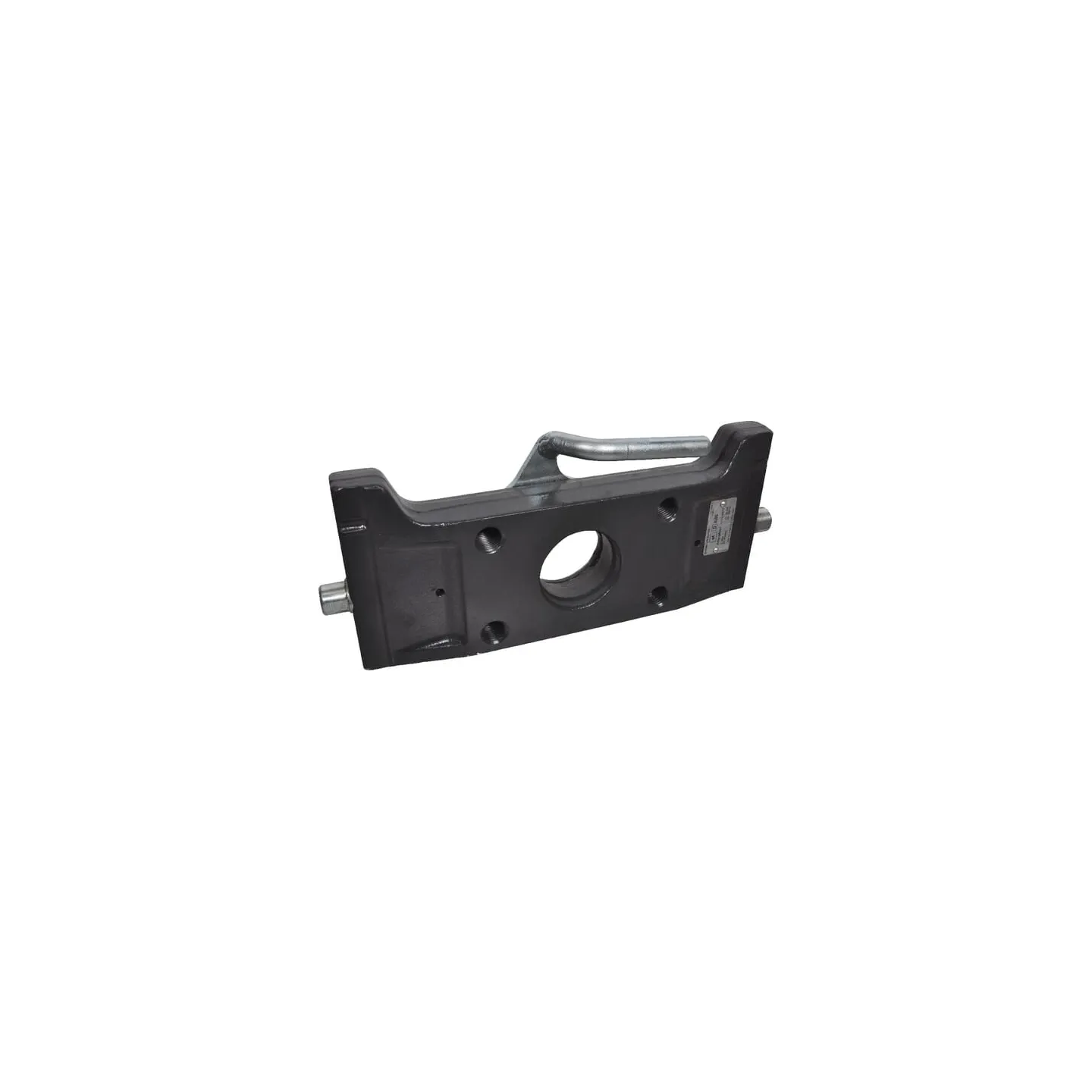

Adaptera plāksne 314 mm 07731452A02 07731452

Name: Adaptera plāksne 314 mm 07731452A02 07731452
Brand: Scharmüller
SKU: 07731452A02
Price: 503.94 EUR
Availability: BackOrder

Apmaksas iespējas

503,94 €

AR PVN

Pēc pieprasījuma

Adaptera plāksne 314 mm 07731452A02 Scharmüller 07731452

Uz pasūtījumu

ID: 78427

Apraksts

Part number	07731452A02
EAN
Unit	Each
Technical info	Strength class 10.9 bolts must be used to mount the coupling on the adapter plate M16 bolts must be tightened to a torque of 300 Nm M20 bolts must be tightened to a torque of 590 Nm
Thread diameter	M20
Locking pin diameter	20 mm
Adapter plate height	150 mm
Manufacturer	Scharmüller
Capacity	3000 kg
Colour	Black
DCvalue	89.3 kN
Height	150 mm
DC value	89.3 kN
Width / hole centres	140 x 80 mm
Number of holes	4
Track width	314 mm
Type	Pins 25 mm
Width	30 mm
