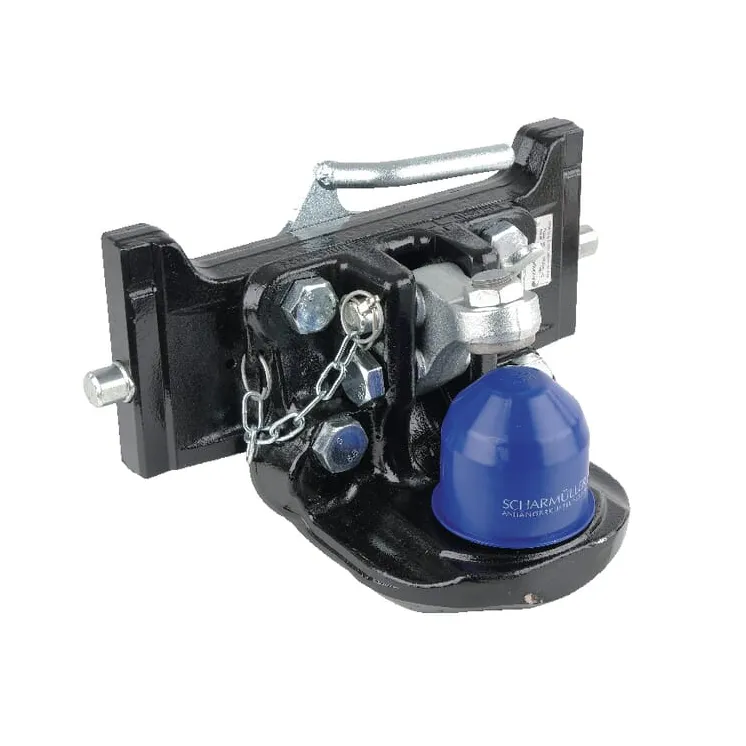

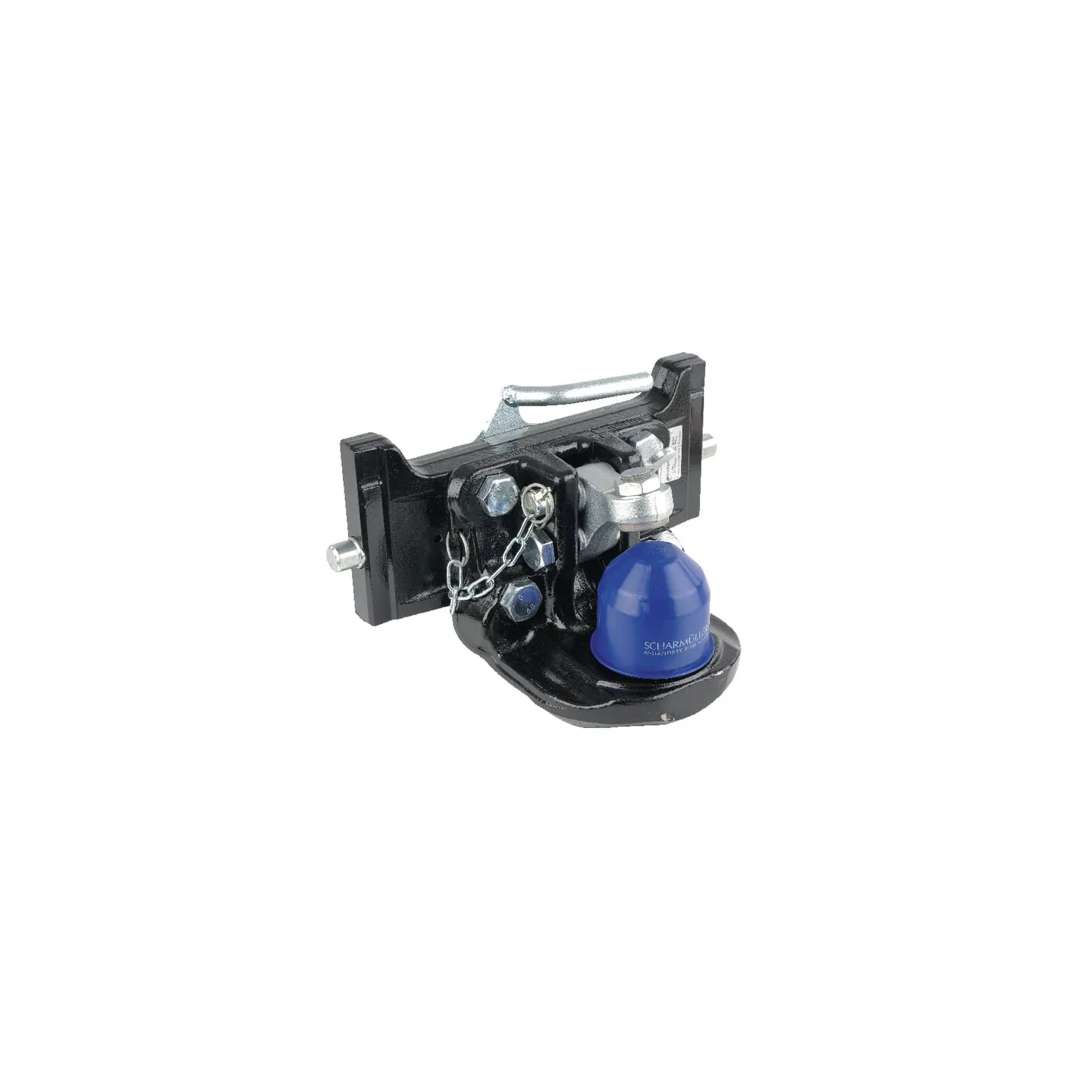

Sakabes lodes sakabe K80 335mm 07633542A11 Scharmüller 03633542 07633542 07633542A24

Sakabes lodes sakabe K80 335mm 07633542A11 03633542 07633542 07633542A24

Name: Sakabes lodes sakabe K80 335mm 07633542A11 03633542 07633542 07633542A24
Brand: Scharmüller
SKU: 07633542A11
Price: 1058.83 EUR
Availability: InStock

Apmaksas iespējas

1 058,83 €

AR PVN

4-5 Darba dienas

Sakabes lodes sakabe K80 335mm 07633542A11 Scharmüller 03633542 07633542 07633542A24

IR NOLIKTAVĀ

ID: 78429

Apraksts

Part number	07633542A11
EAN
Unit	Each
Application range	Couplers of the following ABGs can be coupled: M9679, M9680, M9614, M9615, M9622, M9625, M9785, M9711, M9712 and with tow ball couplers to ISO 24347.
Properties	Optional retrofit with forced steering (right, left, both sides)
Benefits	Optimum driving comfort thanks to minimum clearance between vehicle and trailer High support load Larger axial and vertical swivel angle than with Piton-Fix and bolt couplings Low wear and long service life
Track width	355 mm
Locking pin diameter	22 mm
Adapter plate height	150 mm
Pull pin diameter	80 mm
Max. permissible D-Value	89.3 kN
Max. permissible vertical load	3000 kg
Colour	Grey
Type	K80® Manual
Thread diameter	M20
Total width	30 mm
Working length	155 mm
