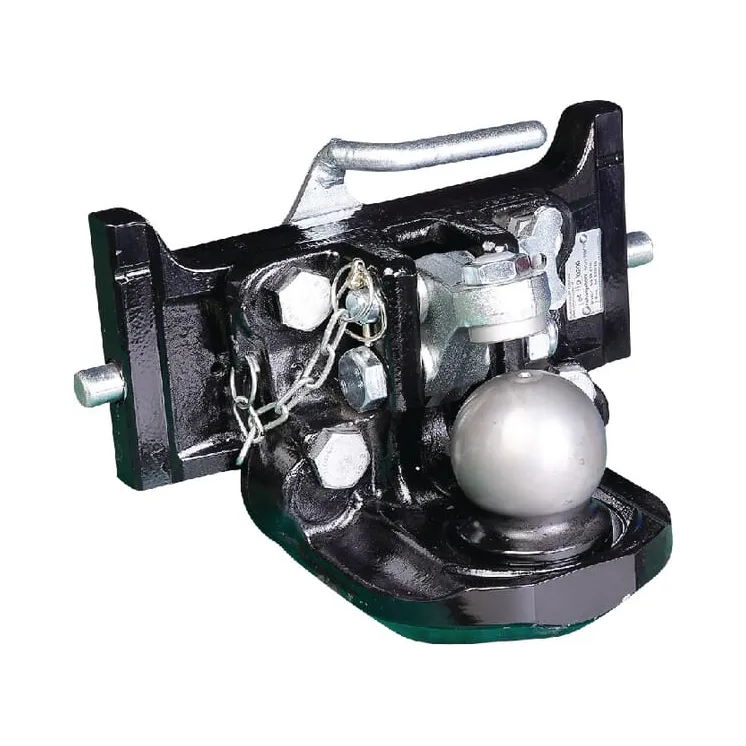

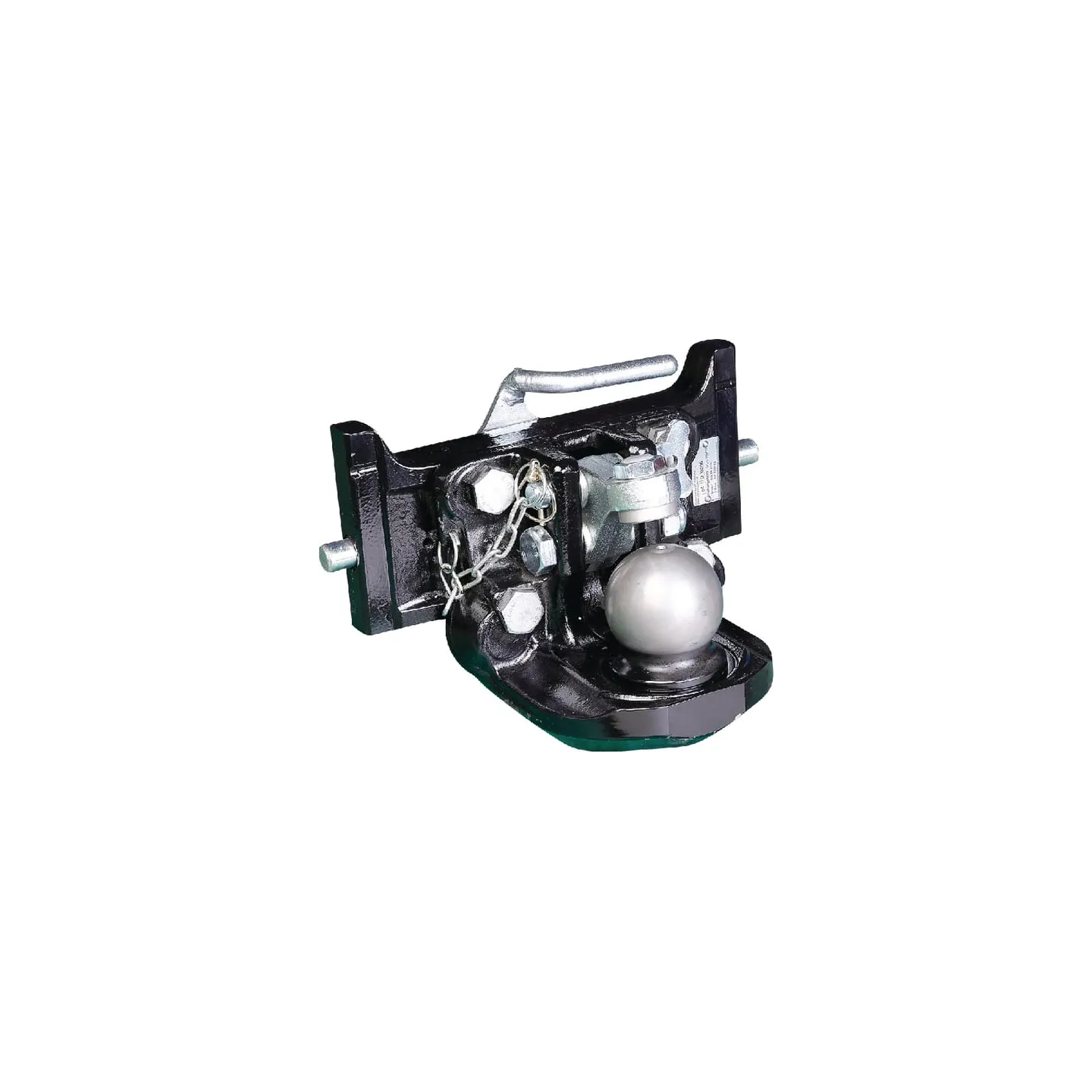

Sakabes lodes sakabe K80 314 mm 07631442A02 Scharmüller 07631452

Sakabes lodes sakabe K80 314 mm 07631442A02 07631452

Name: Sakabes lodes sakabe K80 314 mm 07631442A02 07631452
Brand: Scharmüller
SKU: 07631442A02
Price: 1126 EUR
Availability: BackOrder

Apmaksas iespējas

1 126,00 €

AR PVN

Pēc pieprasījuma

Sakabes lodes sakabe K80 314 mm 07631442A02 Scharmüller 07631452

Uz pasūtījumu

ID: 78433

Apraksts

Part number	07631442A02
EAN
Unit	Each
Application range	Couplers of the following ABGs can be coupled: M9679, M9680, M9614, M9615, M9622, M9625, M9785, M9711, M9712 and with tow ball couplers to ISO 24347.
Properties	Optional retrofit with forced steering (right, left, both sides)
Benefits	Optimum driving comfort thanks to minimum clearance between vehicle and trailer High support load Larger axial and vertical swivel angle than with Piton-Fix and bolt couplings Low wear and long service life
Track width	314 mm
Track thickness	30 mm
Locking pin diameter	20 mm
Adapter plate height	150 mm
Max. permissible D-Value	89.3 kN
Max. permissible vertical load	3000 kg
Colour	Black
Type	K80® Manual
Thread diameter	M20
Working length	155 mm
Extra info	Height Adjustable with Grabhandle
