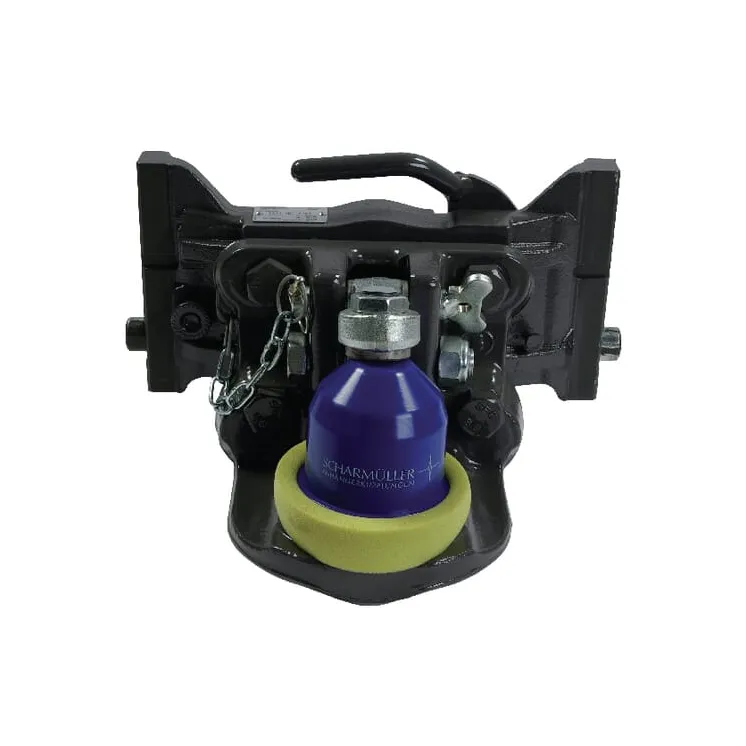

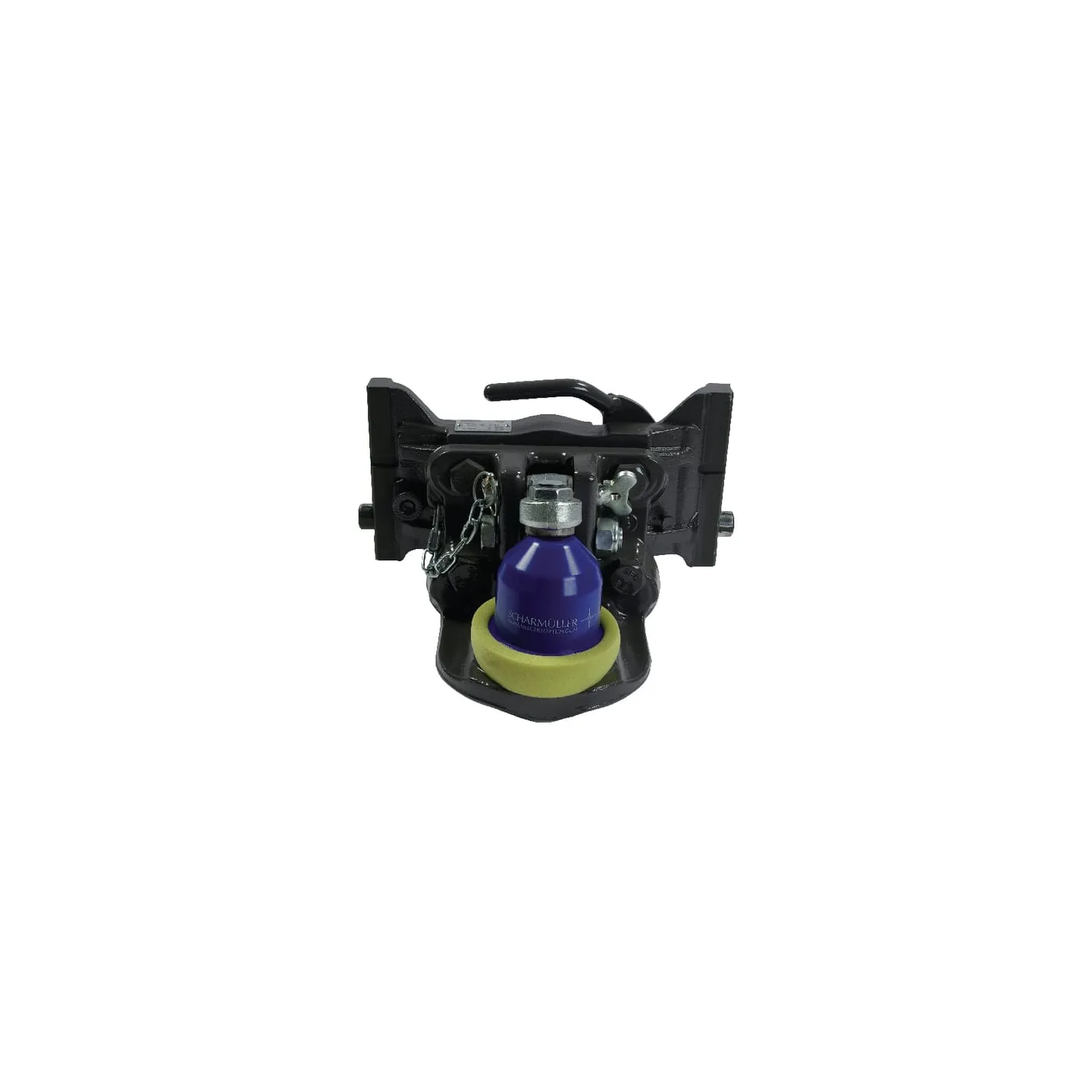

Sakabes lodes sakabe Ball 80mm 330mm 05633042A11 Scharmüller 05633042
search
  • Sakabes lodes sakabe Ball 80mm 330mm 05633042A11 Scharmüller 05633042

Sakabes lodes sakabe Ball 80mm 330mm 05633042A11 05633042

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
1 058,83 €
AR PVN
4-5 Darba dienas
Sakabes lodes sakabe Ball 80mm 330mm 05633042A11 Scharmüller 05633042
IR NOLIKTAVĀ

78453

Part number
05633042A11
EAN
Unit
Each
Application range
  • Couplers of the following ABGs can be coupled:
  • M9679, M9680, M9614, M9615, M9622, M9625, M9785, M9711, M9712 and with tow ball couplers to ISO 24347.
Properties
Optional retrofit with forced steering (right, left, both sides)
Benefits
  • Optimum driving comfort thanks to minimum clearance between vehicle and trailer
  • High support load
  • Larger axial and vertical swivel angle than with Piton-Fix and bolt couplings
  • Low wear and long service life
Track width
330 mm
Track thickness
32 mm
Locking pin diameter
25 mm
Adapter plate height
175 mm
Max. permissible D-Value
83.9 kN
Max. permissible vertical load
2000 kg
Colour
Grey
Type
K80® Manual
Thread diameter
M20
Min. mounting holes distance
80 mm
Max. mounting holes distance
140 mm
Working length
177 mm
Suitable for machine/vehicle brand
Agco
Extra info
Height Adjustable with Grabhandle
  • Zīmols
    Scharmüller
  • Norāde
    05633042A11
  • Pieejamās vispirms
    1 Vienība
  • Stāvoklis
    Jauns
  • Citi kodi
    05633042
