Sakabes lodes sakabe K80 325 mm 05632533A02 Scharmüller 05632533

Sakabes lodes sakabe K80 325 mm 05632533A02 05632533

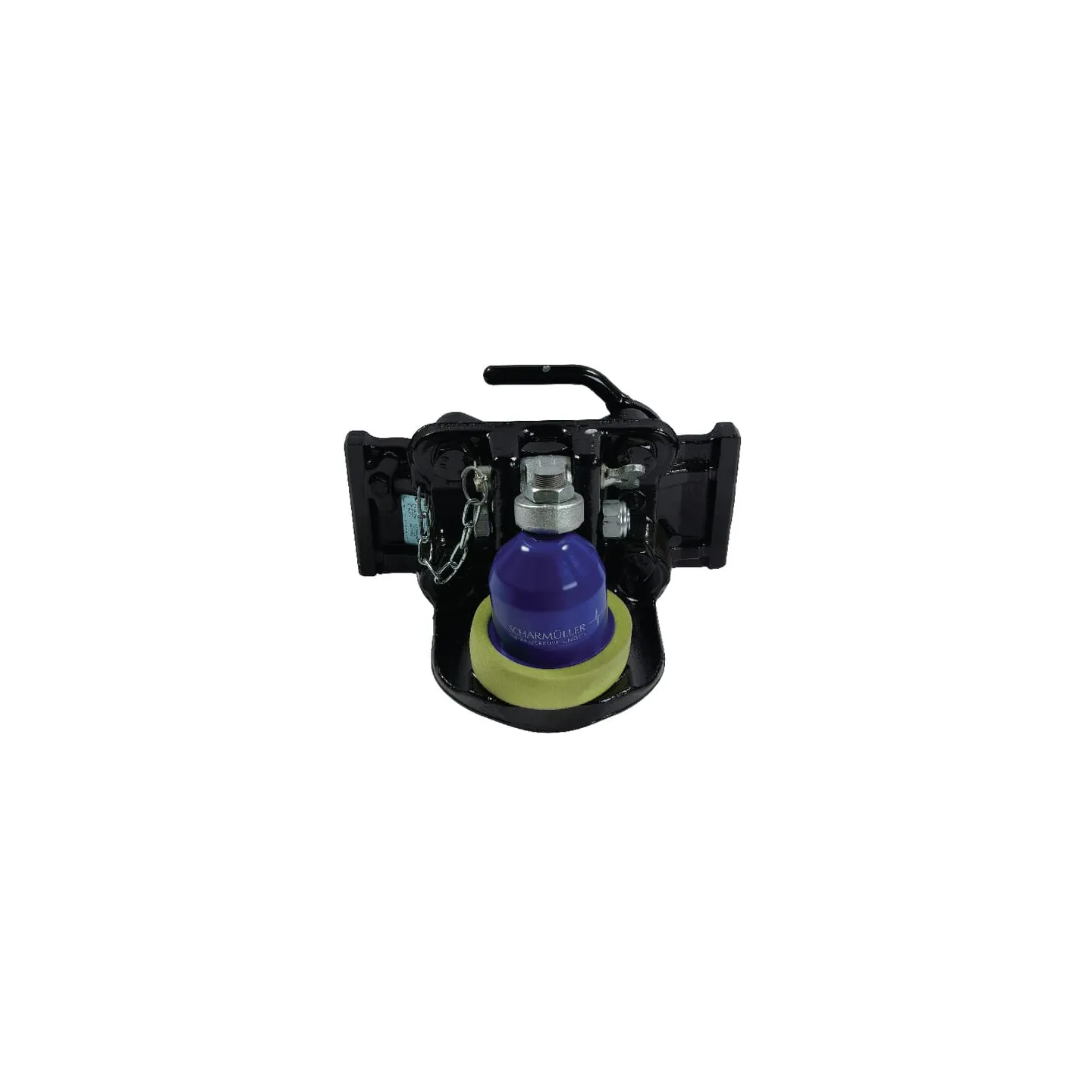

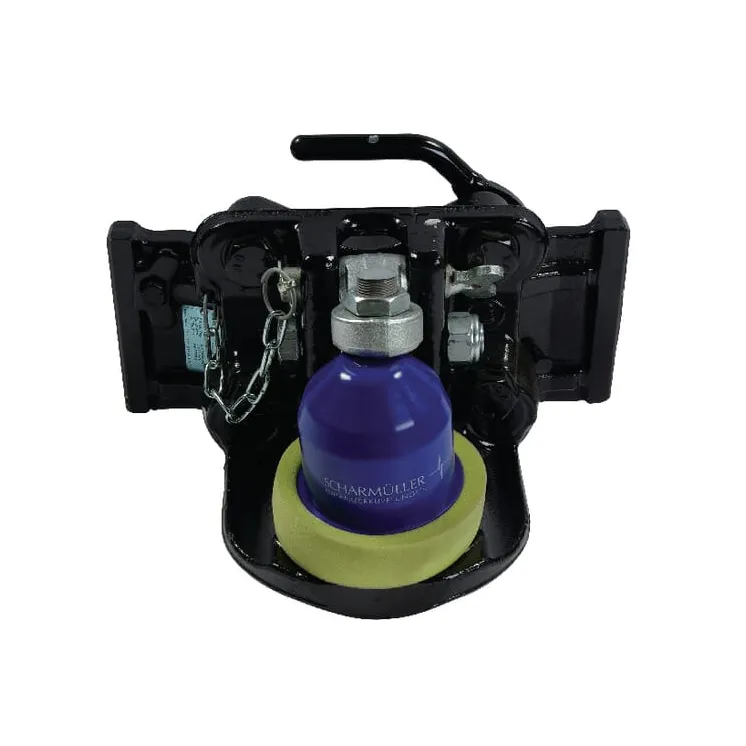

Name: Sakabes lodes sakabe K80 325 mm 05632533A02 05632533
Brand: Scharmüller
SKU: 05632533A02
Price: 1122.57 EUR
Availability: InStock

Apmaksas iespējas

1 122,57 €

AR PVN

4-5 Darba dienas

Sakabes lodes sakabe K80 325 mm 05632533A02 Scharmüller 05632533

IR NOLIKTAVĀ

ID: 78458

Apraksts

Part number	05632533A02
EAN
Unit	Each
Application range	Couplers of the following ABGs can be coupled: M9679, M9680, M9614, M9615, M9622, M9625, M9785, M9711, M9712 and with tow ball couplers to ISO 24347.
Properties	Optional retrofit with forced steering (right, left, both sides)
Benefits	Optimum driving comfort thanks to minimum clearance between vehicle and trailer High support load Larger axial and vertical swivel angle than with Piton-Fix and bolt couplings Low wear and long service life
Track width	325 mm
Track thickness	26 mm
Locking pin diameter	25 mm
Adapter plate height	133 mm
Max. permissible D-Value	83.9 kN
Max. permissible vertical load	2000 kg
Colour	Black
Type	K80® Manual
Thread diameter	M20
Min. mounting holes distance	80 mm
Max. mounting holes distance	140 mm
Working length	177 mm
Extra info	Height Adjustable with Grabhandle
