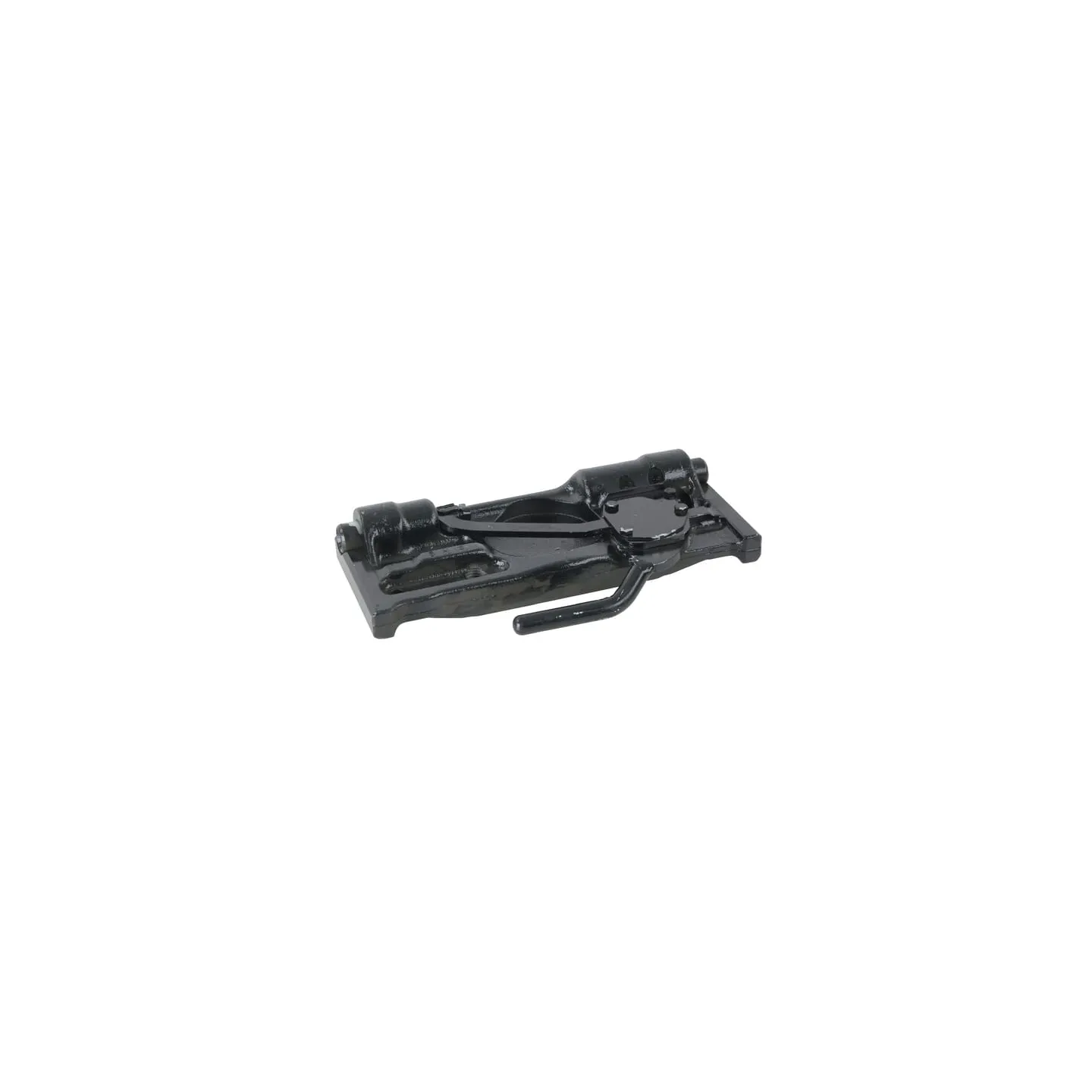

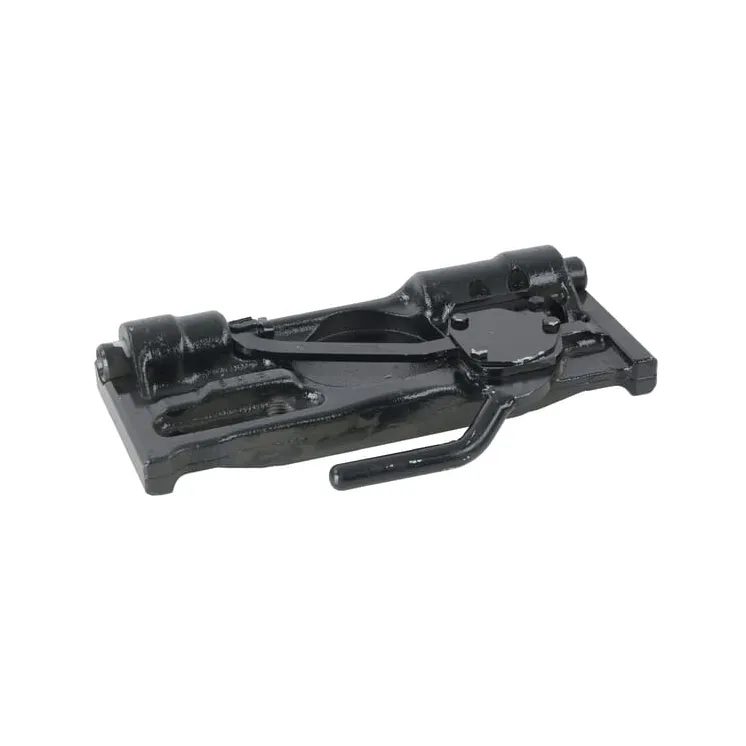

Adaptera plāksne 325 mm 05720020A02 05720020

Name: Adaptera plāksne 325 mm 05720020A02 05720020
Brand: Scharmüller
SKU: 05720020A02
Price: 483.31 EUR
Availability: InStock

Apmaksas iespējas

483,31 €

AR PVN

4-5 Darba dienas

Adaptera plāksne 325 mm 05720020A02 Scharmüller 05720020

IR NOLIKTAVĀ

ID: 78471

Apraksts

Part number	05720020A02
EAN
Unit	Each
Technical info	Strength class 10.9 bolts must be used to mount the coupling on the adapter plate M16 bolts must be tightened to a torque of 300 Nm M20 bolts must be tightened to a torque of 590 Nm
Thread diameter	M20
Locking pin diameter	26 mm
Adapter plate height	133 mm
Manufacturer	Scharmüller
Capacity	2000 kg
Colour	Black
DCvalue	83.9 kN
Height	133 mm
DC value	89.3 kN
Width / hole centres	140 x 80 mm
Number of holes	4
Track width	325 mm
Type	Height Adjustable with Grabhandle
Width	26 mm
