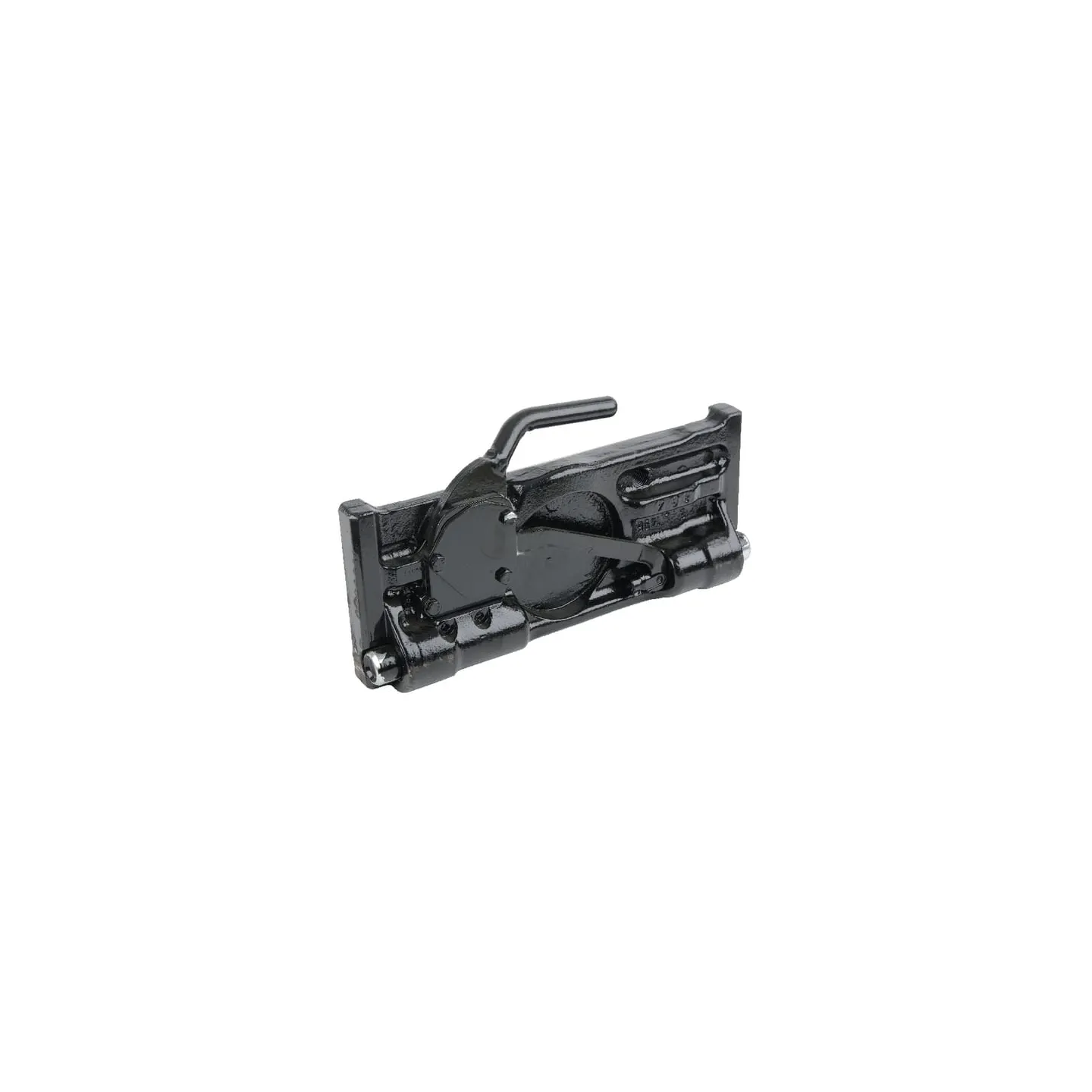

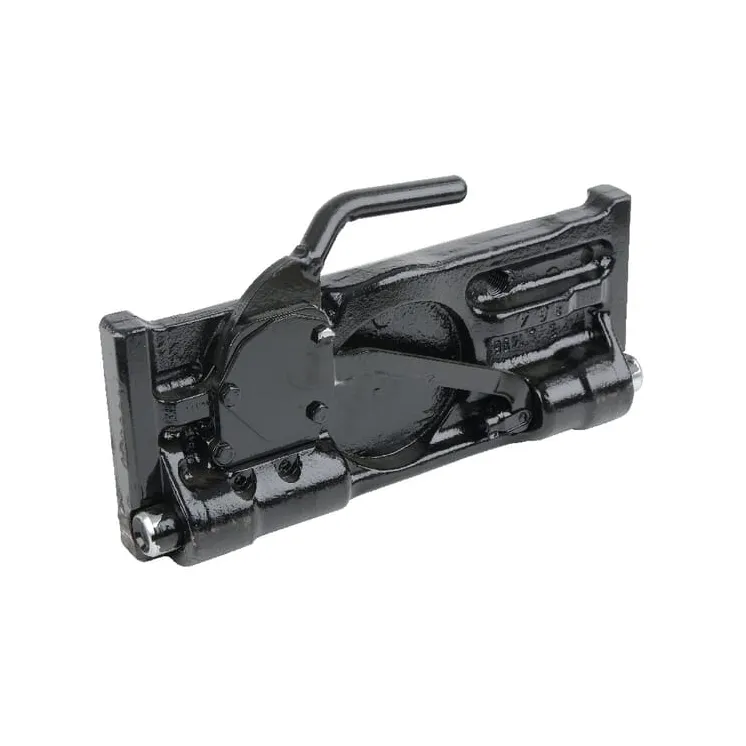

Adaptera plāksne 325 mm 05720000A02 05720000

Name: Adaptera plāksne 325 mm 05720000A02 05720000
Brand: Scharmüller
SKU: 05720000A02
Price: 483.31 EUR
Availability: InStock

Apmaksas iespējas

483,31 €

AR PVN

4-5 Darba dienas

Adaptera plāksne 325 mm 05720000A02 Scharmüller 05720000

IR NOLIKTAVĀ

ID: 78476

Apraksts

Part number	05720000A02
EAN
Unit	Each
Technical info	Strength class 10.9 bolts must be used to mount the coupling on the adapter plate M16 bolts must be tightened to a torque of 300 Nm M20 bolts must be tightened to a torque of 590 Nm
Thread diameter	M16
Locking pin diameter	26 mm
Adapter plate height	133 mm
Manufacturer	Scharmüller
Capacity	2000 kg
Colour	Black
DCvalue	83.9 kN
Height	133 mm
DC value	83.9 kN
Width / hole centres	140 x 80 mm
Number of holes	4
Thread	M16
Track width	325 mm
Width	36 mm
