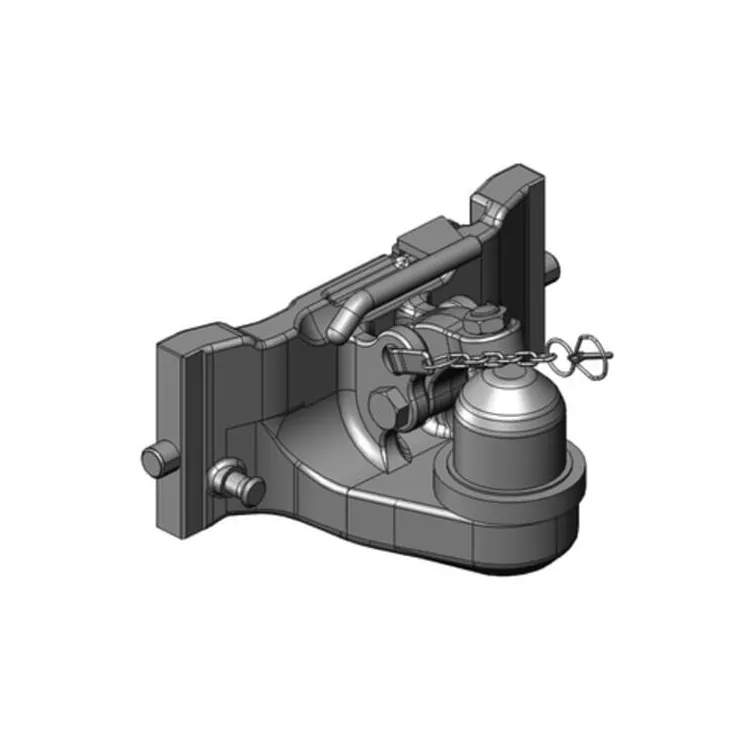

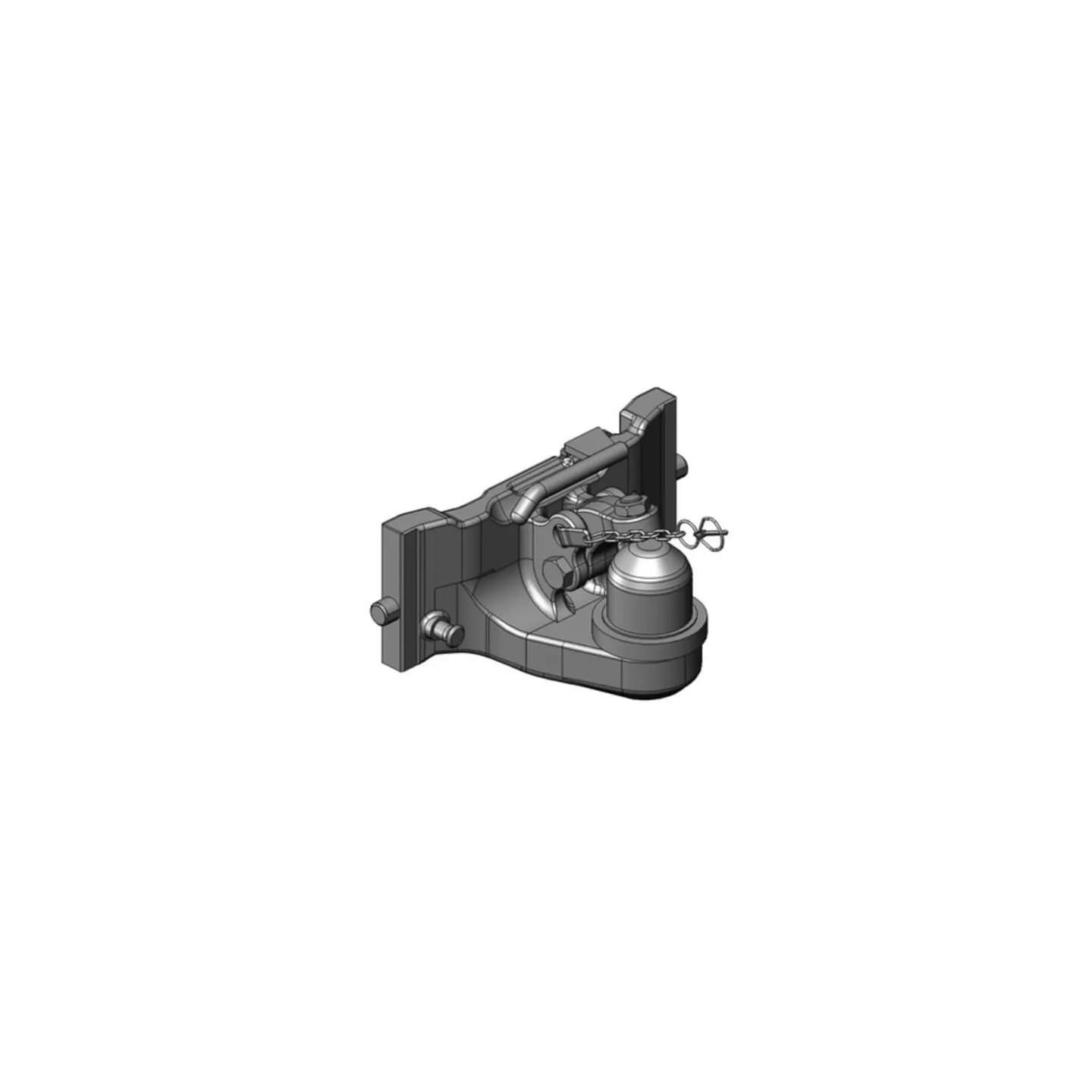

Sakabes lodes sakabe JD 390 mm 05639064A17

Name: Sakabes lodes sakabe JD 390 mm 05639064A17
Brand: Scharmüller
SKU: 05639064A17
Price: 1104.27 EUR
Availability: InStock

Apmaksas iespējas

1 104,27 €

AR PVN

4-5 Darba dienas

Sakabes lodes sakabe JD 390 mm 05639064A17 Scharmüller

IR NOLIKTAVĀ

ID: 78479

Apraksts

Part number	05639064A17
EAN
Unit	Each
Application range	Couplers of the following ABGs can be coupled: M9679, M9680, M9614, M9615, M9622, M9625, M9785, M9711, M9712 and with tow ball couplers to ISO 24347.
Properties	Optional retrofit with forced steering (right, left, both sides)
Benefits	Optimum driving comfort thanks to minimum clearance between vehicle and trailer High support load Larger axial and vertical swivel angle than with Piton-Fix and bolt couplings Low wear and long service life
Track width	390 mm
Track thickness	32 mm
Locking pin diameter	25 mm
Adapter plate height	160 mm
Max. permissible D-Value	97.1 kN
Max. permissible vertical load	3000 kg
Colour	Green
Type	K80® Manual
Type code	639063
Working length	170 mm
