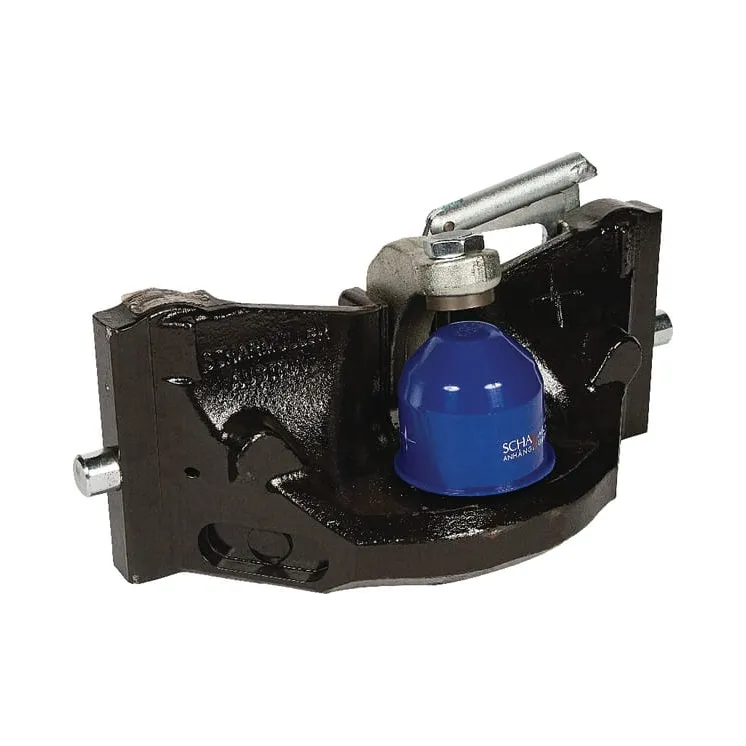

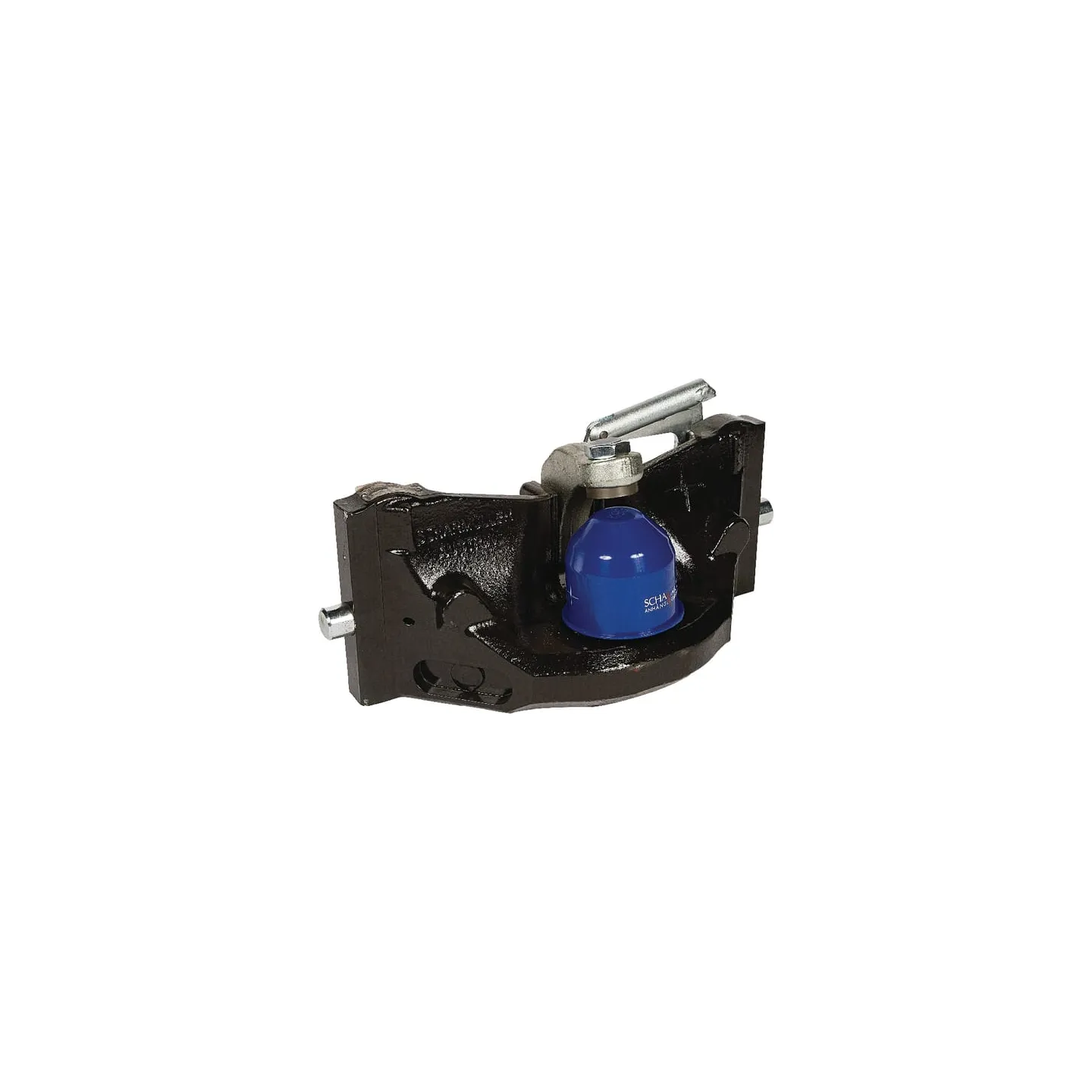

Lodveida savienotājs K80 05639046A02 VLE2571

Name: Lodveida savienotājs K80 05639046A02 VLE2571
Brand: Scharmüller
SKU: 05639046A02
Price: 1171.33 EUR
Availability: InStock

Apmaksas iespējas

1 171,33 €

AR PVN

4-5 Darba dienas

Lodveida savienotājs K80 05639046A02 Scharmüller VLE2571

IR NOLIKTAVĀ

ID: 78490

Apraksts

Part number	05639046A02
EAN
Unit	Each
Application range	Couplers of the following ABGs can be coupled: M9679, M9680, M9614, M9615, M9622, M9625, M9785, M9711, M9712 and with tow ball couplers to ISO 24347.
Properties	Optional retrofit with forced steering (right, left, both sides)
Benefits	Optimum driving comfort thanks to minimum clearance between vehicle and trailer High support load Larger axial and vertical swivel angle than with Piton-Fix and bolt couplings Low wear and long service life
Track width	390 mm
Track thickness	32 mm
Locking pin diameter	25 mm
Adapter plate height	160 mm
Max. permissible D-Value	120 kN
Max. permissible vertical load	4000 kg
Colour	Black
Type	K80® Manual
Working length	77 mm
Extra info	Height Adjustable with Grabhandle
