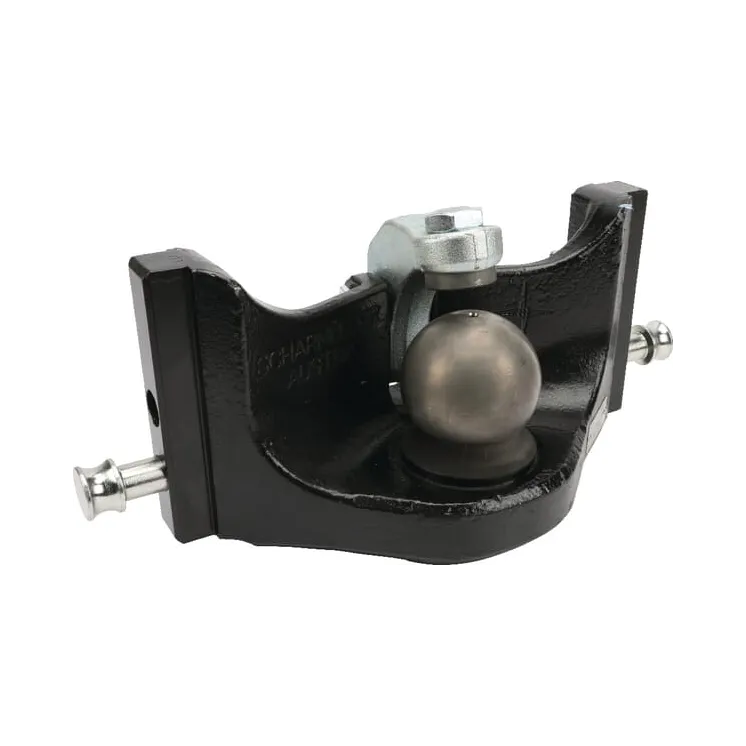

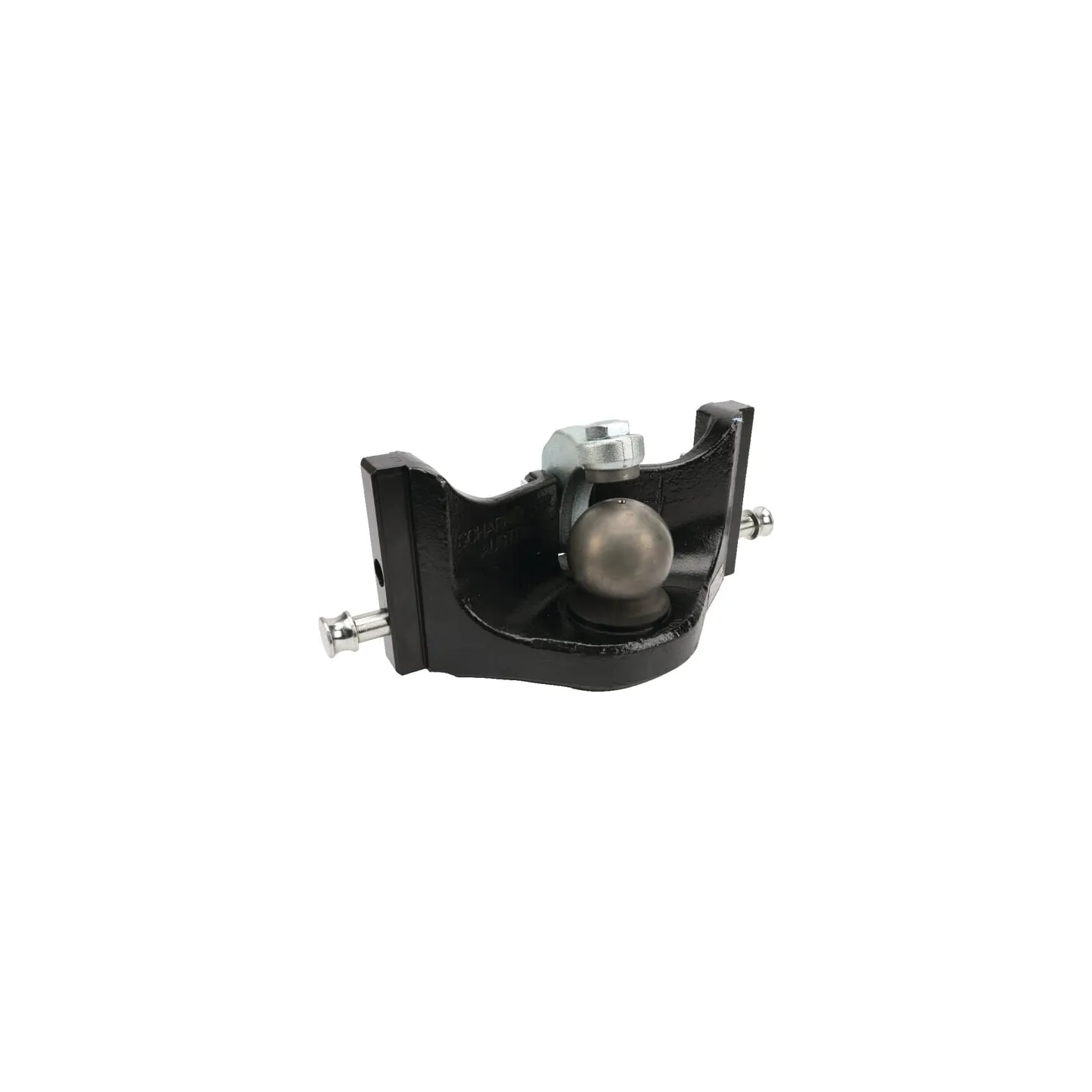

K80® lodīšu ieliktņa lējums W330 S30 CBM 05632951A02 Scharmüller 05632945 05632945A02

K80® lodīšu ieliktņa lējums W330 S30 CBM 05632951A02 05632945 05632945A02

Name: K80® lodīšu ieliktņa lējums W330 S30 CBM 05632951A02 05632945 05632945A02
Brand: Scharmüller
SKU: 05632951A02
Price: 1078.12 EUR
Availability: InStock

Apmaksas iespējas

1 078,12 €

AR PVN

4-5 Darba dienas

K80® lodīšu ieliktņa lējums W330 S30 CBM 05632951A02 Scharmüller 05632945 05632945A02

IR NOLIKTAVĀ

ID: 78491

Apraksts

Part number	05632951A02
EAN
Unit	Each
Application range	Couplers of the following ABGs can be coupled: M9679, M9680, M9614, M9615, M9622, M9625, M9785, M9711, M9712 and with tow ball couplers to ISO 24347.
Properties	Optional retrofit with forced steering (right, left, both sides)
Benefits	Optimum driving comfort thanks to minimum clearance between vehicle and trailer High support load Larger axial and vertical swivel angle than with Piton-Fix and bolt couplings Low wear and long service life
Track width	330 mm
Track thickness	30 mm
Locking pin diameter	20 mm
Adapter plate height	160 mm
Max. permissible D-Value	89.3 kN
Max. permissible vertical load	4000 kg
Colour	Black
Type	K80® Manual
Working length	57 mm
