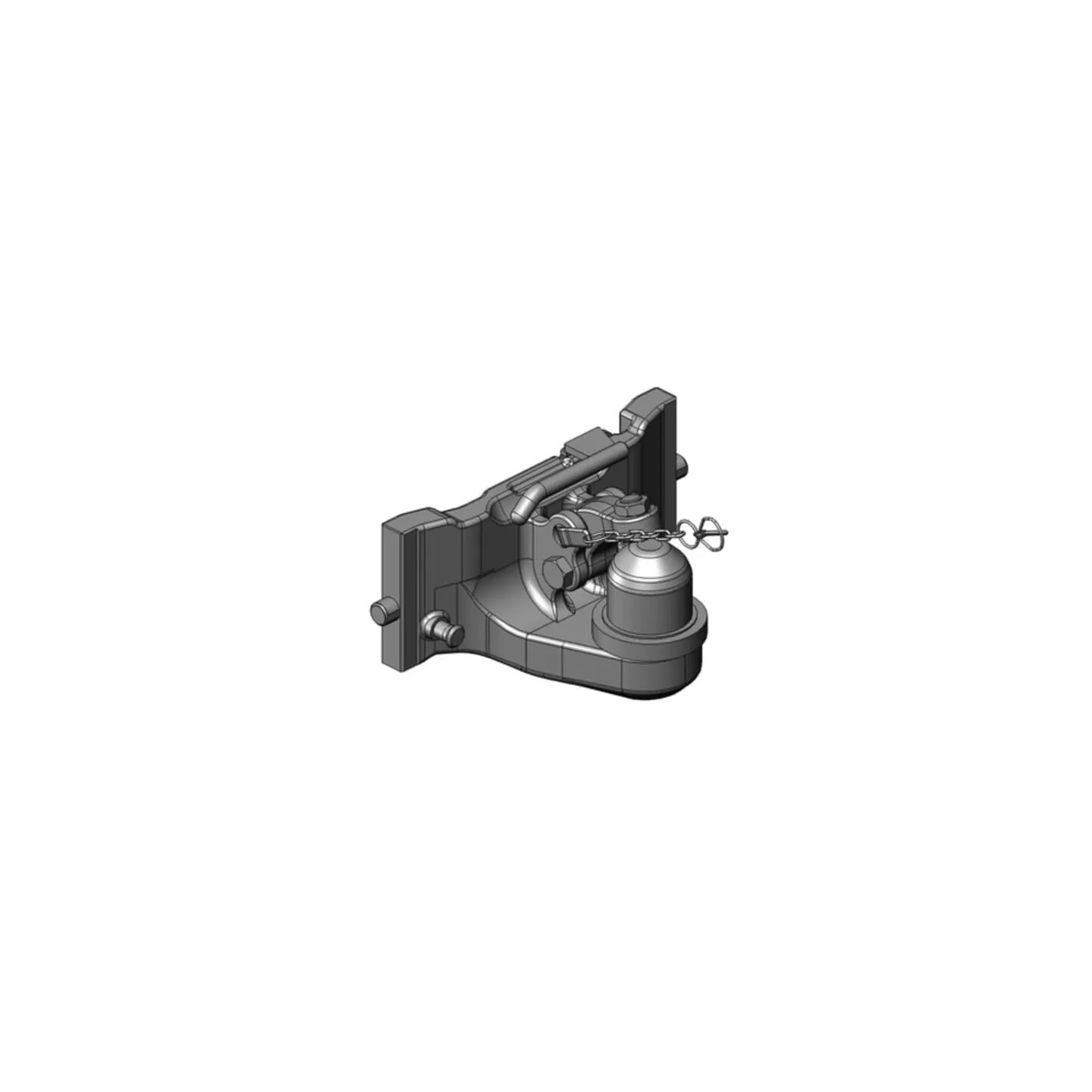

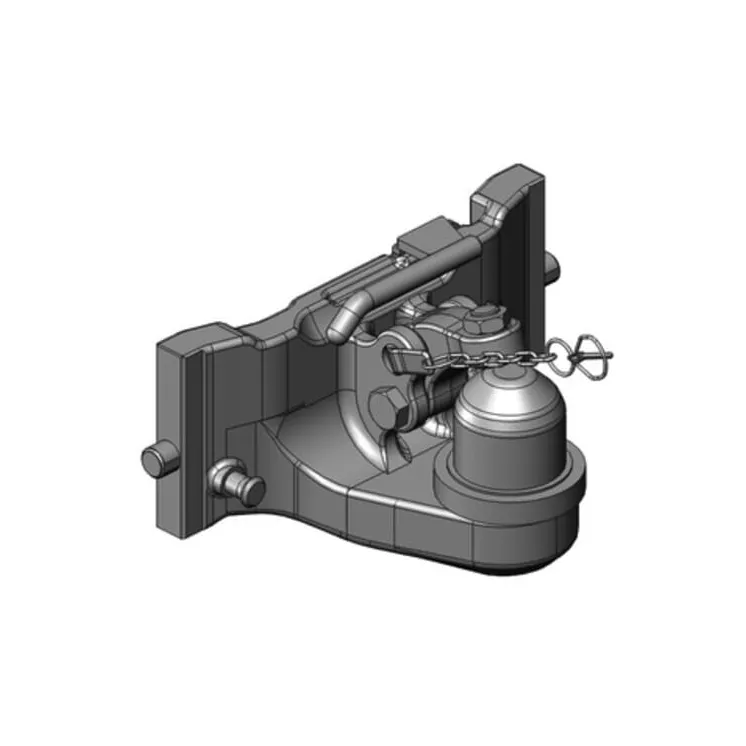

Sakabes lodes sakabe K80 390 mm 05639064A02

Name: Sakabes lodes sakabe K80 390 mm 05639064A02
Brand: Scharmüller
SKU: 05639064A02
Price: 1238.82 EUR
Availability: InStock

Apmaksas iespējas

1 238,82 €

AR PVN

4-5 Darba dienas

Sakabes lodes sakabe K80 390 mm 05639064A02 Scharmüller

IR NOLIKTAVĀ

ID: 78500

Apraksts

Part number	05639064A02
EAN
Unit	Each
Application range	Couplers of the following ABGs can be coupled: M9679, M9680, M9614, M9615, M9622, M9625, M9785, M9711, M9712 and with tow ball couplers to ISO 24347.
Properties	Optional retrofit with forced steering (right, left, both sides)
Benefits	Optimum driving comfort thanks to minimum clearance between vehicle and trailer High support load Larger axial and vertical swivel angle than with Piton-Fix and bolt couplings Low wear and long service life
Track width	390 mm
Track thickness	32 mm
Locking pin diameter	25 mm
Adapter plate height	160 mm
Max. permissible D-Value	97.1 kN
Max. permissible vertical load	3000 kg
Colour	Black
Type	K80® Manual
Type code	639063
Working length	170 mm
