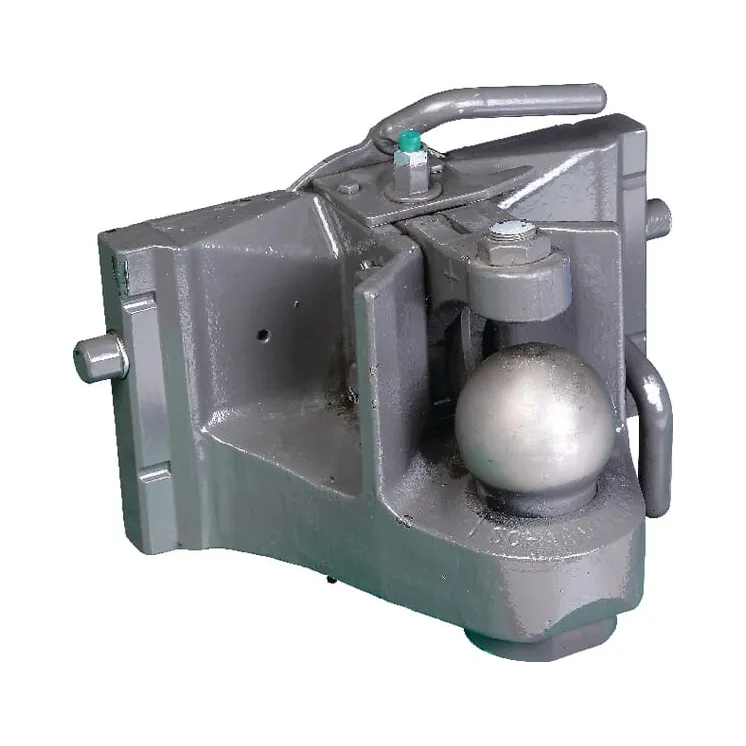

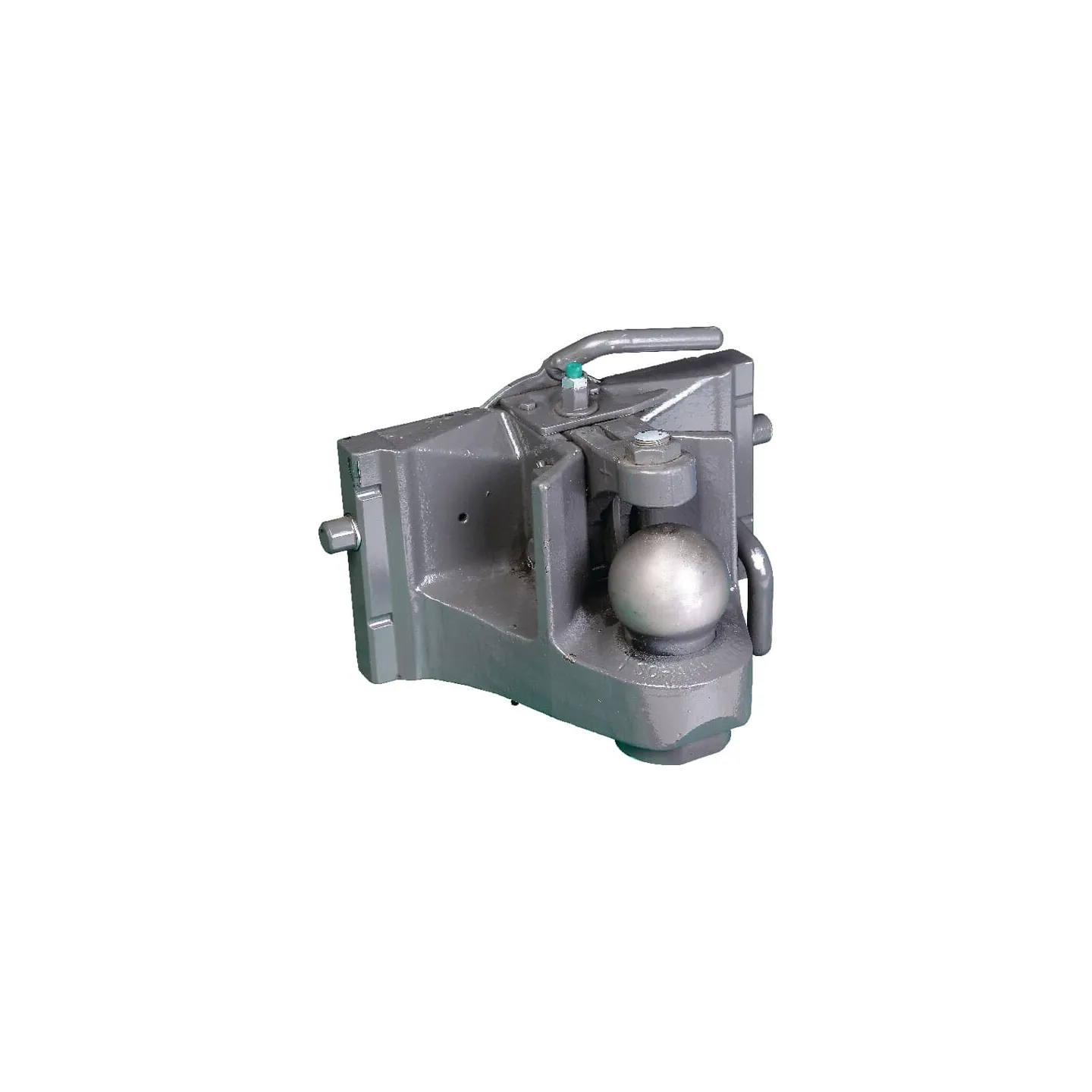

Sakabes lodes sakabe 80 mm 311 mm 05631161A11 Scharmüller 05631161

Sakabes lodes sakabe 80 mm 311 mm 05631161A11 05631161

Name: Sakabes lodes sakabe 80 mm 311 mm 05631161A11 05631161
Brand: Scharmüller
SKU: 05631161A11
Price: 1418.98 EUR
Availability: InStock

Apmaksas iespējas

1 418,98 €

AR PVN

4-5 Darba dienas

Sakabes lodes sakabe 80 mm 311 mm 05631161A11 Scharmüller 05631161

IR NOLIKTAVĀ

ID: 78503

Apraksts

Part number	05631161A11
EAN
Unit	Each
Application range	Couplers of the following ABGs can be coupled: M9679, M9680, M9614, M9615, M9622, M9625, M9785, M9711, M9712 and with tow ball couplers to ISO 24347.
Properties	Optional retrofit with forced steering (right, left, both sides)
Benefits	Optimum driving comfort thanks to minimum clearance between vehicle and trailer High support load Larger axial and vertical swivel angle than with Piton-Fix and bolt couplings Low wear and long service life
Track width	311 mm
Track thickness	30 mm
Locking pin diameter	22 mm
Adapter plate height	173 mm
Max. permissible D-Value	89.3 kN
Max. permissible vertical load	3000 kg
Colour	Grey
Type	K80® Automatic
Working length	152 mm
Suitable for machine/vehicle brand	Agco
Extra info	Height Adjustable with Grabhandle
