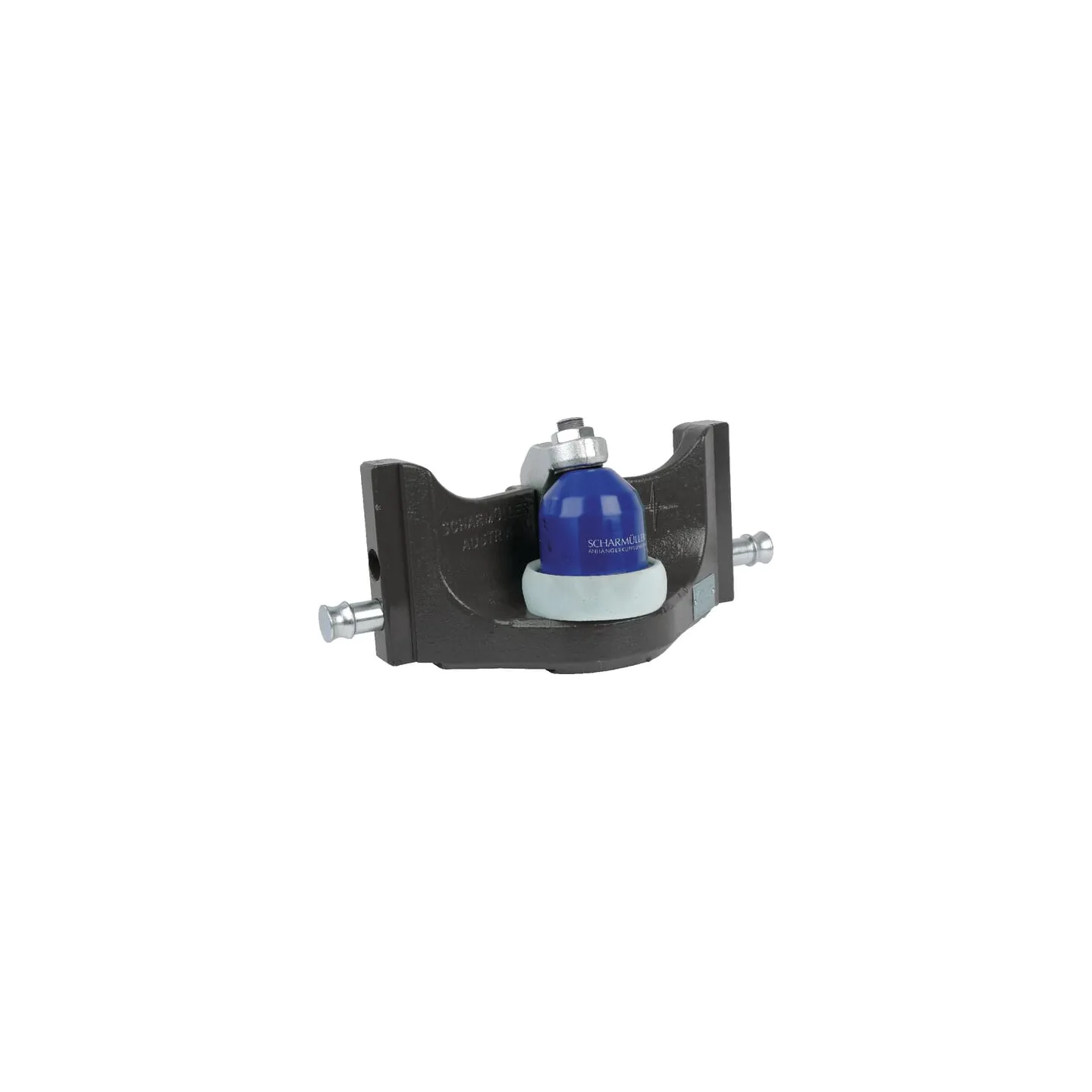

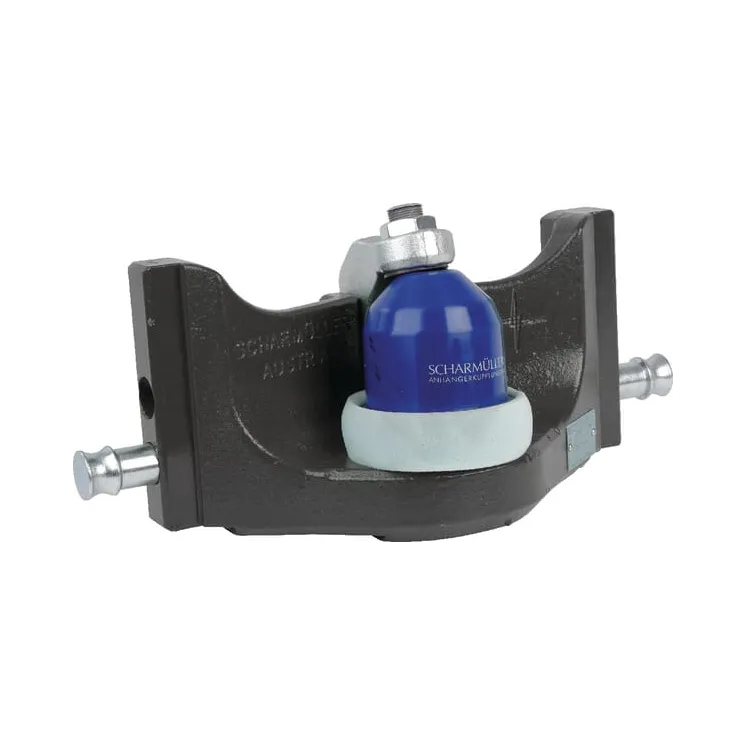

Sakabes lodes sakabe 80 mm 329 mm 05633045A02 Scharmüller 05633047

Sakabes lodes sakabe 80 mm 329 mm 05633045A02 05633047

Name: Sakabes lodes sakabe 80 mm 329 mm 05633045A02 05633047
Brand: Scharmüller
SKU: 05633045A02
Price: 1025.03 EUR
Availability: InStock

Apmaksas iespējas

1 025,03 €

AR PVN

4-5 Darba dienas

Sakabes lodes sakabe 80 mm 329 mm 05633045A02 Scharmüller 05633047

IR NOLIKTAVĀ

ID: 78510

Apraksts

Part number	05633045A02
EAN
Unit	Each
Application range	Couplers of the following ABGs can be coupled: M9679, M9680, M9614, M9615, M9622, M9625, M9785, M9711, M9712 and with tow ball couplers to ISO 24347.
Properties	Optional retrofit with forced steering (right, left, both sides)
Benefits	Optimum driving comfort thanks to minimum clearance between vehicle and trailer High support load Larger axial and vertical swivel angle than with Piton-Fix and bolt couplings Low wear and long service life
Track width	329 mm
Track thickness	32 mm
Locking pin diameter	25 mm
Adapter plate height	160 mm
Max. permissible D-Value	89.3 kN
Max. permissible vertical load	4000 kg
Colour	Black
Type	K80® Manual
Working length	57 mm
Extra info	Pluggable with Bolt
