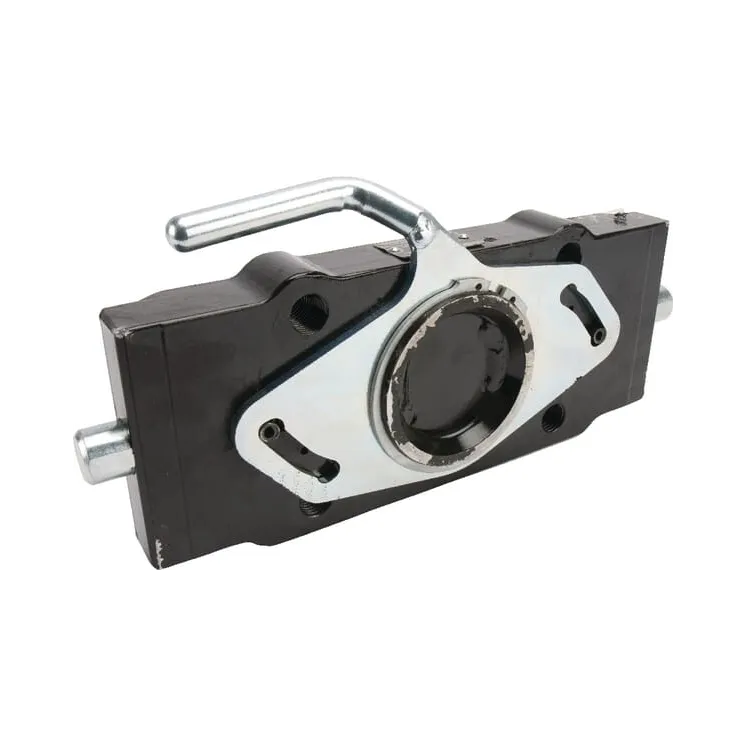

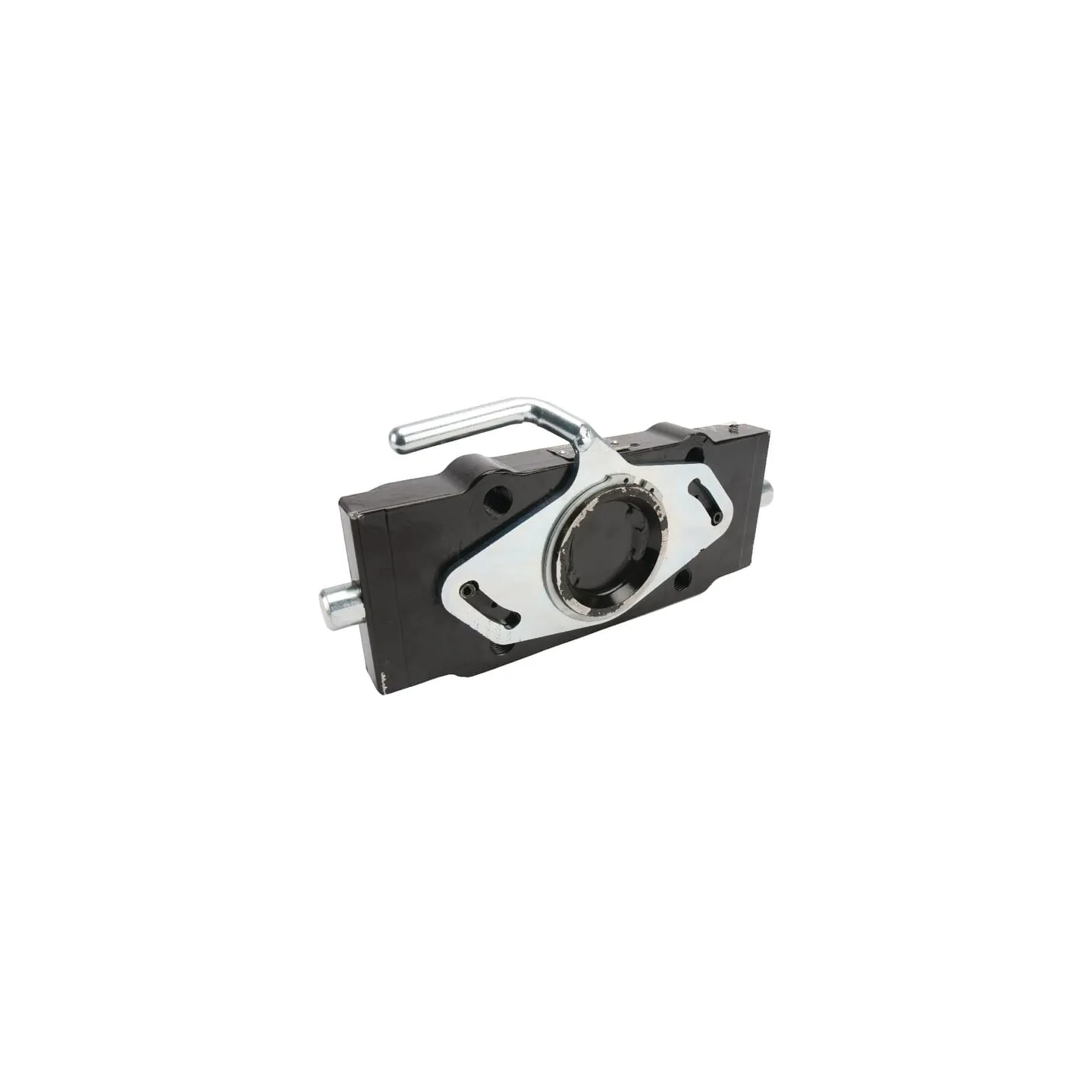

Adaptera plāksne 330 mm 03733060A02 03733060

Name: Adaptera plāksne 330 mm 03733060A02 03733060
Brand: Scharmüller
SKU: 03733060A02
Price: 521.4 EUR
Availability: InStock

Apmaksas iespējas

521,40 €

AR PVN

4-5 Darba dienas

Adaptera plāksne 330 mm 03733060A02 Scharmüller 03733060

IR NOLIKTAVĀ

ID: 78571

Apraksts

Part number	03733060A02
EAN
Unit	Each
Technical info	Strength class 10.9 bolts must be used to mount the coupling on the adapter plate M16 bolts must be tightened to a torque of 300 Nm M20 bolts must be tightened to a torque of 590 Nm
Thread diameter	M20
Locking pin diameter	25 mm
Adapter plate height	120 mm
Manufacturer	Scharmüller
Capacity	2000 kg
Colour	Black
DCvalue	89.3 kN
Height	120 mm
DC value	83.9 kN
Width / hole centres	160 x 100 mm
Number of holes	4
Track width	330 mm
Type	Height Adjustable with Grabhandle
Width	32 mm
