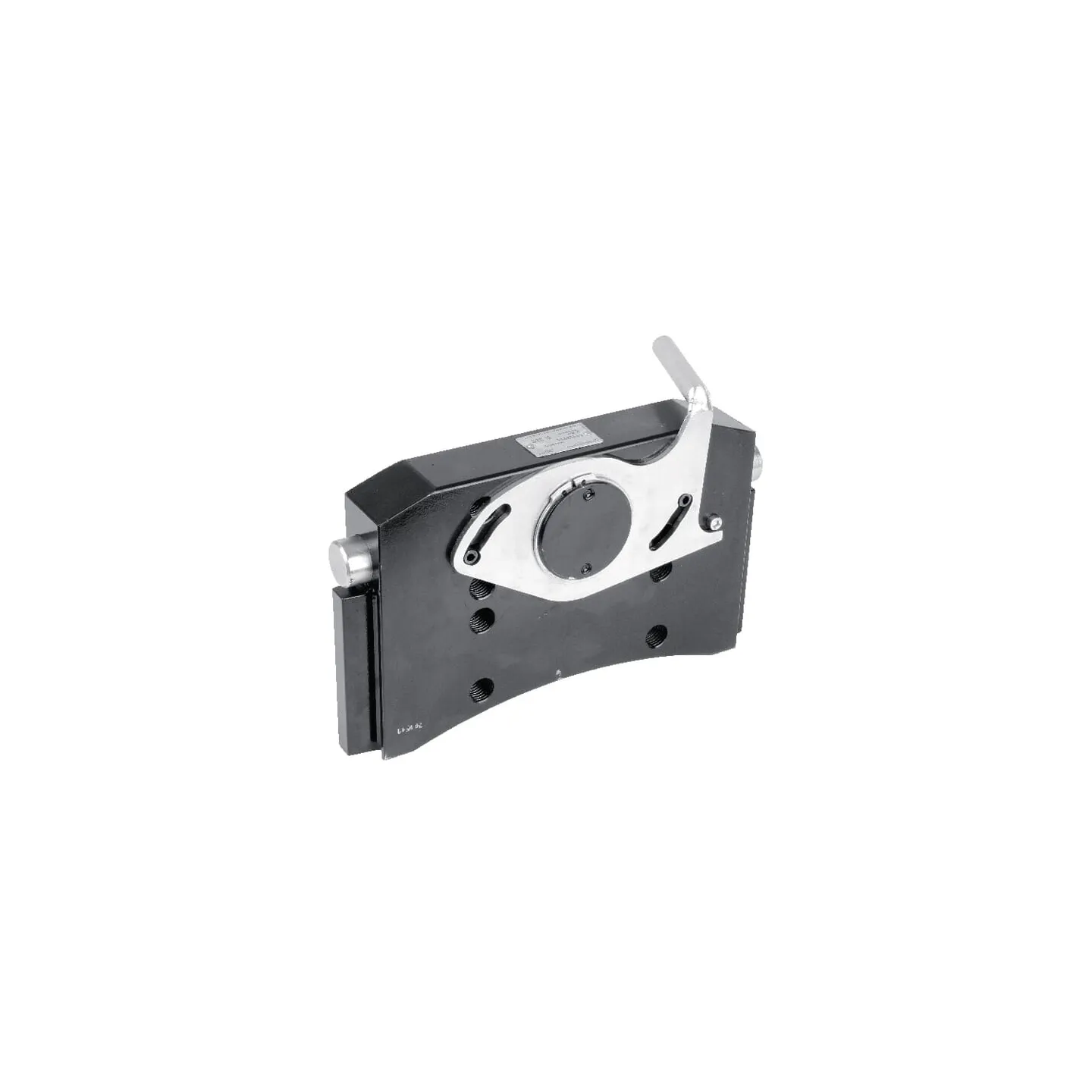

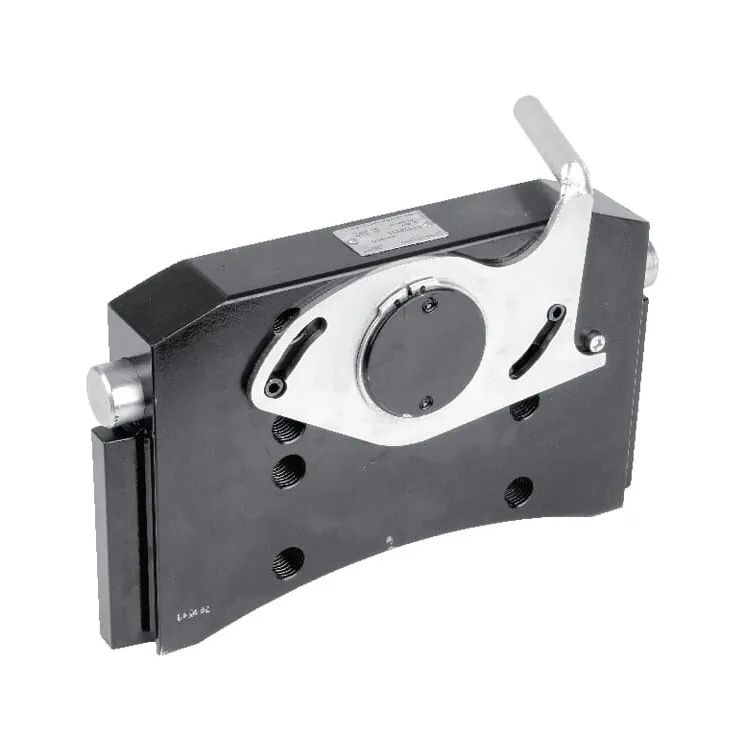

Adaptera plāksne 320 mm H190 03732057A02 Scharmüller 03732053 03732055 03732057

Adaptera plāksne 320 mm H190 03732057A02 03732053 03732055 03732057

Name: Adaptera plāksne 320 mm H190 03732057A02 03732053 03732055 03732057
Brand: Scharmüller
SKU: 03732057A02
Price: 437.21 EUR
Availability: InStock

Apmaksas iespējas

437,21 €

AR PVN

4-5 Darba dienas

Adaptera plāksne 320 mm H190 03732057A02 Scharmüller 03732053 03732055 03732057

IR NOLIKTAVĀ

ID: 78573

Apraksts

Part number	03732057A02
EAN
Unit	Each
Technical info	Strength class 10.9 bolts must be used to mount the coupling on the adapter plate M16 bolts must be tightened to a torque of 300 Nm M20 bolts must be tightened to a torque of 590 Nm
Thread diameter	M20
Locking pin diameter	30 mm
Adapter plate height	190 mm
Manufacturer	Scharmüller
Capacity	3000 kg
Colour	Black
DCvalue	89.3 kN
Height	190 mm
DC value	89.3 kN
Width / hole centres	140x80 mm
Number of holes	8
Track width	320 mm
Type	Height Adjustable with Grabhandle
Width	20 mm
