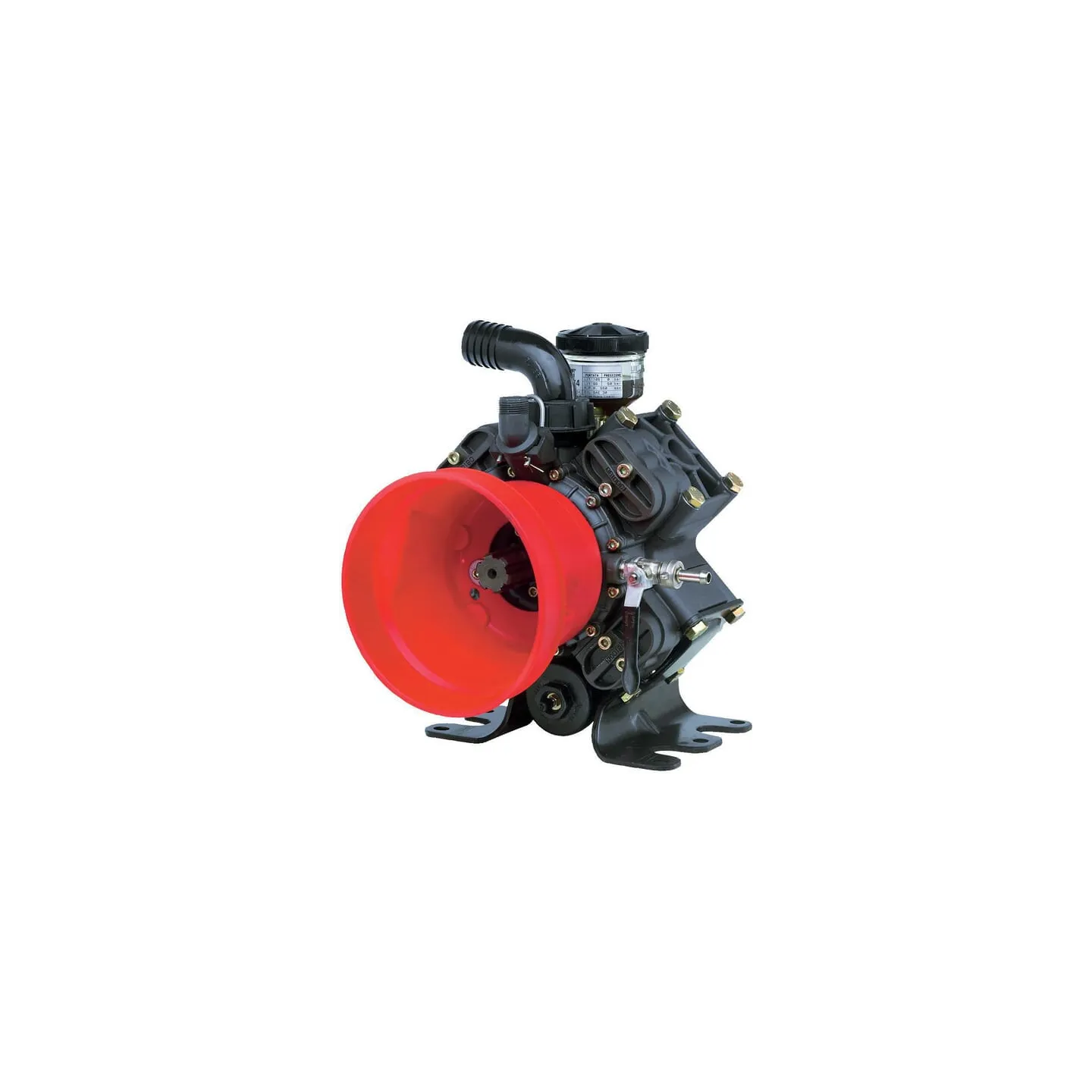

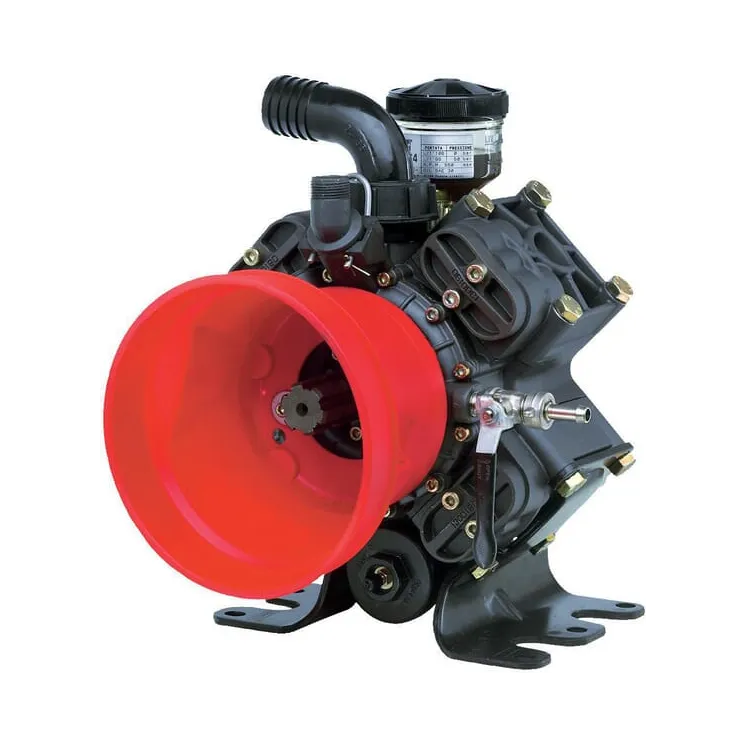

Sūknis AR 1064 AP C/SP SGC BlueFlex 16297AR Annovi Reverberi 730AR

Sūknis AR 1064 AP C/SP SGC BlueFlex 16297AR 730AR

Name: Sūknis AR 1064 AP C/SP SGC BlueFlex 16297AR 730AR
Brand: Annovi Reverberi
SKU: 16297AR
Price: 1153.44 EUR
Availability: BackOrder

1 153,44 €

AR PVN

Pēc pieprasījuma

Sūknis AR 1064 AP C/SP SGC BlueFlex 16297AR Annovi Reverberi 730AR

Uz pasūtījumu

ID: 81289

Apraksts

Part number	16297AR
EAN
Unit	Each
Details	Anodised medium- and high-pressure pumps All parts coming into contact with liquid are anodised (the AR30 and AR50 versions are plastic-coated)
Application range	For sprayers in fruit and wine growing (tall-growing crops)
Properties	The crank drive case runs in an oil bath, with a control tank All screws are zinc-plated
Technical info	SP: pump with universal shaft as driving shaft C: pump with a cardan shaft 1 3/8" 6 pieces C/C: pump with through shaft: double-sided cardan shaft 1 3/8" – 6 pieces – 1 3/8" – 6 pieces C/SP: pump with through shaft: 1 3/8" - 6 pieces, universal shaft
Benefits	Long service life
Consists of	The pumps are equipped with rubber membranes as standard A safety valve is fitted as standard (except the AR303, AR403 and AR503) The protective cap is supplied with C/SP pumps as standard
Drive shaft	1 3/8 Inch
Height	381 mm
Power	13.32 HP
Length	310 mm
Flow max.	105 l/min
Pressure max.	50 BAR
Rotation max.	550 r/min
Temperature max.	60 °C
Material piston diaphragms	BlueFlex
Ø Intake	40 mm
Ø Outlet	G 3/4 Inch
Power	9.8 kW
Shaft type	1 3/8" (6) + universal
Weight	22 kg
Width	421 mm
