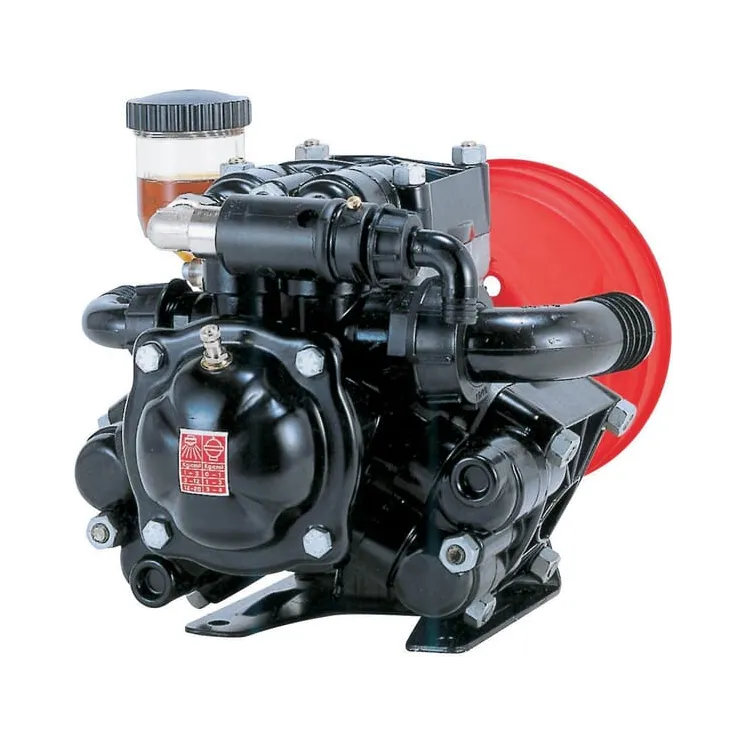

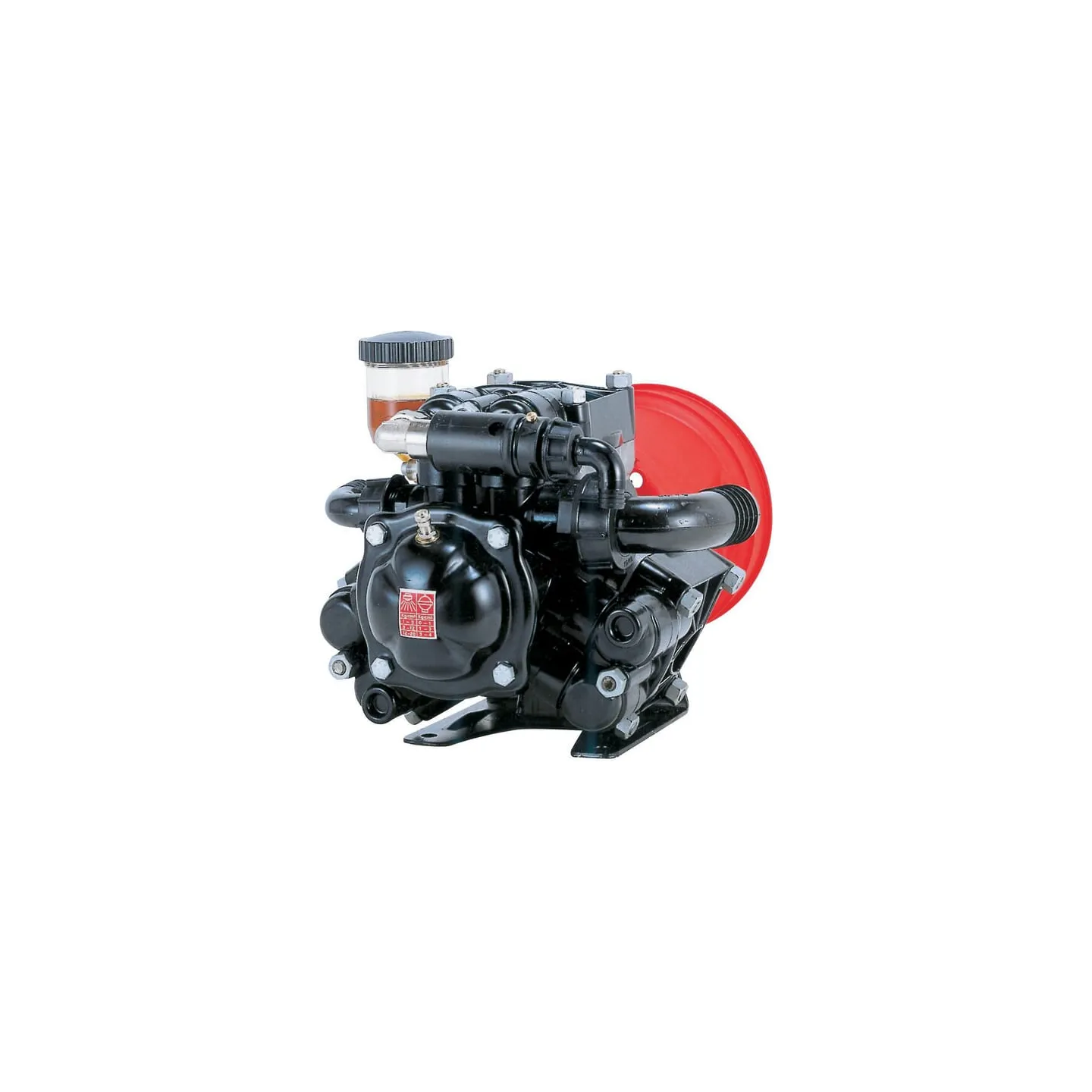

Sūknis AR 115 bp C BlueFlex 16262AR 1203AR

Name: Sūknis AR 115 bp C BlueFlex 16262AR 1203AR
Brand: Annovi Reverberi
SKU: 16262AR
Price: 822.8 EUR
Availability: BackOrder

822,80 €

AR PVN

Pēc pieprasījuma

Sūknis AR 115 bp C BlueFlex 16262AR Annovi Reverberi 1203AR

Uz pasūtījumu

ID: 81294

Apraksts

Part number	16262AR
EAN
Unit	Each
Application range	Semi-hydraulic low-pressure diaphragm pumps for weed control and liquid fertilisation The pumps AR DUE, AR202 and AR252 are diaphragm pumps for horticulture
Properties	All parts that come in contact with liquid are plastic-coated. The AR DUE, AR202 and AR252 pumps are made from anodised aluminium The oil bath crank drive has a control tank (except the AR DUE) Screws with galvanised protection treatment made from Dacromet
Technical info	SP: pump with universal shaft as driving shaft Bp C: pump with a cardan shaft 1 3/8" 6 pieces Bp C/C: pump with through shaft: two-sided cardan shaft 1 3/8" – 6 piece – 1 3/8" – 6 piece BpTwin: pump with through shaft: two-sided cardan shaft 1 3/8" – 6 piece – 1 3/8" – 6 piece
Consists of	Piston diaphragm pump with safety valve and air chamber (except for AR DUE, AR202 and AR252) The pumps are supplied with rubber membranes as standard
Drive shaft	1 3/8 Inch
Height	293 mm
Power	5.57 HP
Length	340 mm
Flow max.	108 l/min
Pressure max.	20 BAR
Rotation max.	550 r/min
Temperature max.	60 °C
Material piston diaphragms	BlueFlex
Ø Intake	40 mm
Ø Outlet	25 mm
Power	4.1 kW
Shaft type	1 3/8" (6)
Weight	13 kg
Width	306 mm
