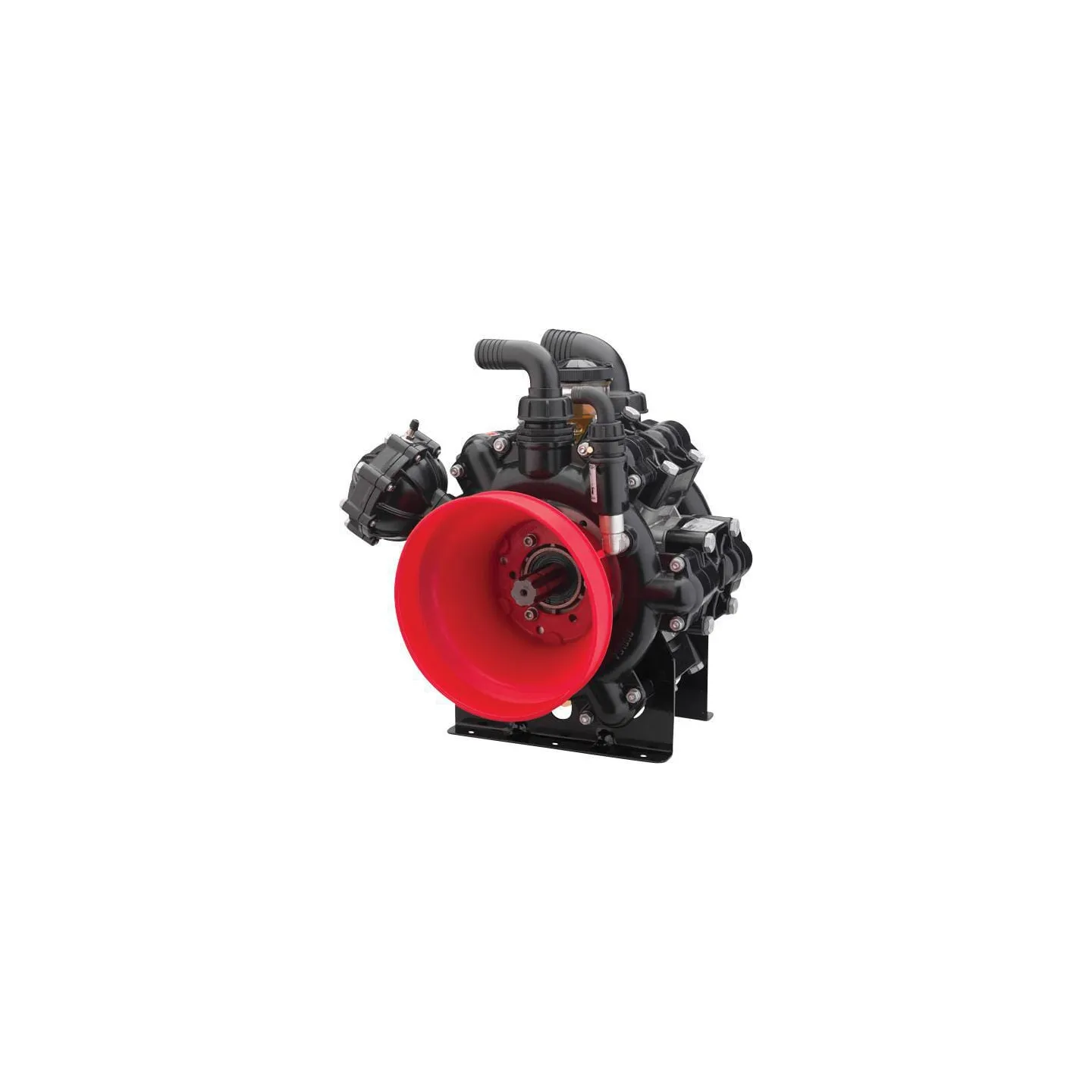

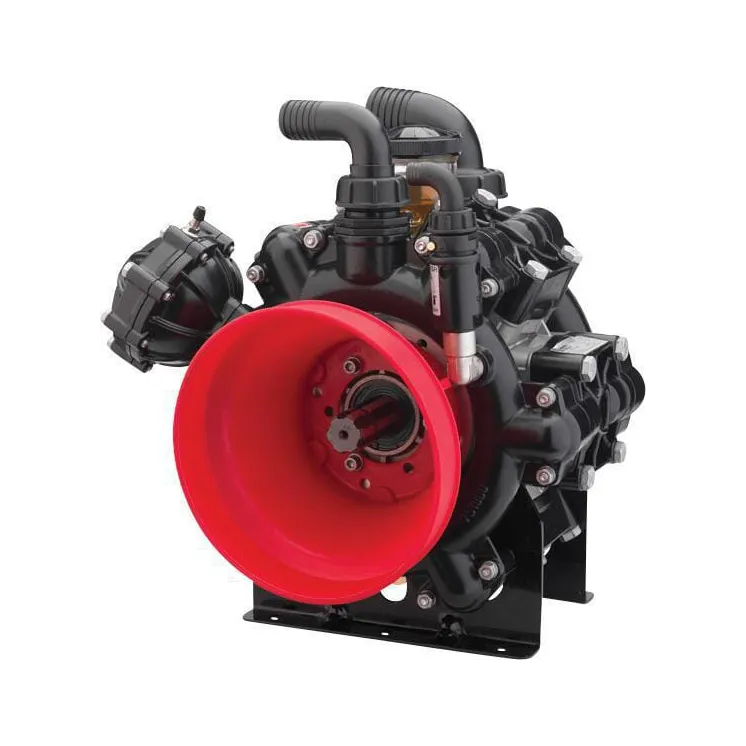

• AR 250 bp AP C/C BlueFlex 16271AR Annovi Reverberi 1211AR 1705AR 65004031120004

AR 250 bp AP C/C BlueFlex 16271AR 1211AR 1705AR 65004031120004

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
1 762,99 €
AR PVN
4-5 Darba dienas
AR 250 bp AP C/C BlueFlex 16271AR Annovi Reverberi 1211AR 1705AR 65004031120004
IR NOLIKTAVĀ

81297

Part number
16271AR
EAN
Unit
Each
Application range
  • Semi-hydraulic low-pressure diaphragm pumps for weed control and liquid fertilisation
  • The pumps AR DUE, AR202 and AR252 are diaphragm pumps for horticulture
Properties
  • All parts that come in contact with liquid are plastic-coated. The AR DUE, AR202 and AR252 pumps are made from anodised aluminium
  • The oil bath crank drive has a control tank (except the AR DUE)
  • Screws with galvanised protection treatment made from Dacromet
Technical info
  • SP: pump with universal shaft as driving shaft
  • Bp C: pump with a cardan shaft 1 3/8" 6 pieces
  • Bp C/C: pump with through shaft: two-sided cardan shaft 1 3/8" – 6 piece – 1 3/8" – 6 piece
  • BpTwin: pump with through shaft: two-sided cardan shaft 1 3/8" – 6 piece – 1 3/8" – 6 piece
Consists of
  • Piston diaphragm pump with safety valve and air chamber (except for AR DUE, AR202 and AR252)
  • The pumps are supplied with rubber membranes as standard
Drive shaft
2x 1 3/8 Inch
Height
480 mm
Power
11.7 HP
Length
316 mm
Flow max.
254 l/min
Pressure max.
20 BAR
Rotation max.
550 r/min
Temperature max.
60 °C
Material piston diaphragms
BlueFlex
Ø Intake
50 mm
Ø Outlet
35 mm
Power
8.6 kW
Shaft type
1 3/8" (6) + 1 3/8" (6)
Weight
36 kg
Width
411 mm
  • Zīmols
  • Norāde
    16271AR
  • Pieejamās vispirms
    2 vienības:
  • Stāvoklis
    Jauns
  • Citi kodi
    1211AR 1705AR 65004031120004
