| Part number | 3TEDN12 | |
|---|---|---|
| EAN | ||
| Unit | Metre | |
| Qty. Rounding | 0.01 | |
| Pros | Light, flexible hose with extremely wear-resistant outer coating | |
| Product details |
| |
| Hose inside diameter | 1/2 Inch | |
| Hose inside diameter | 12.7 mm | |
| Max working pressure | 93 BAR | |
| Material inside | Synthetic rubber | |
| Bend radius | 85 mm | |
| Weight | 0.3 kg/m | |

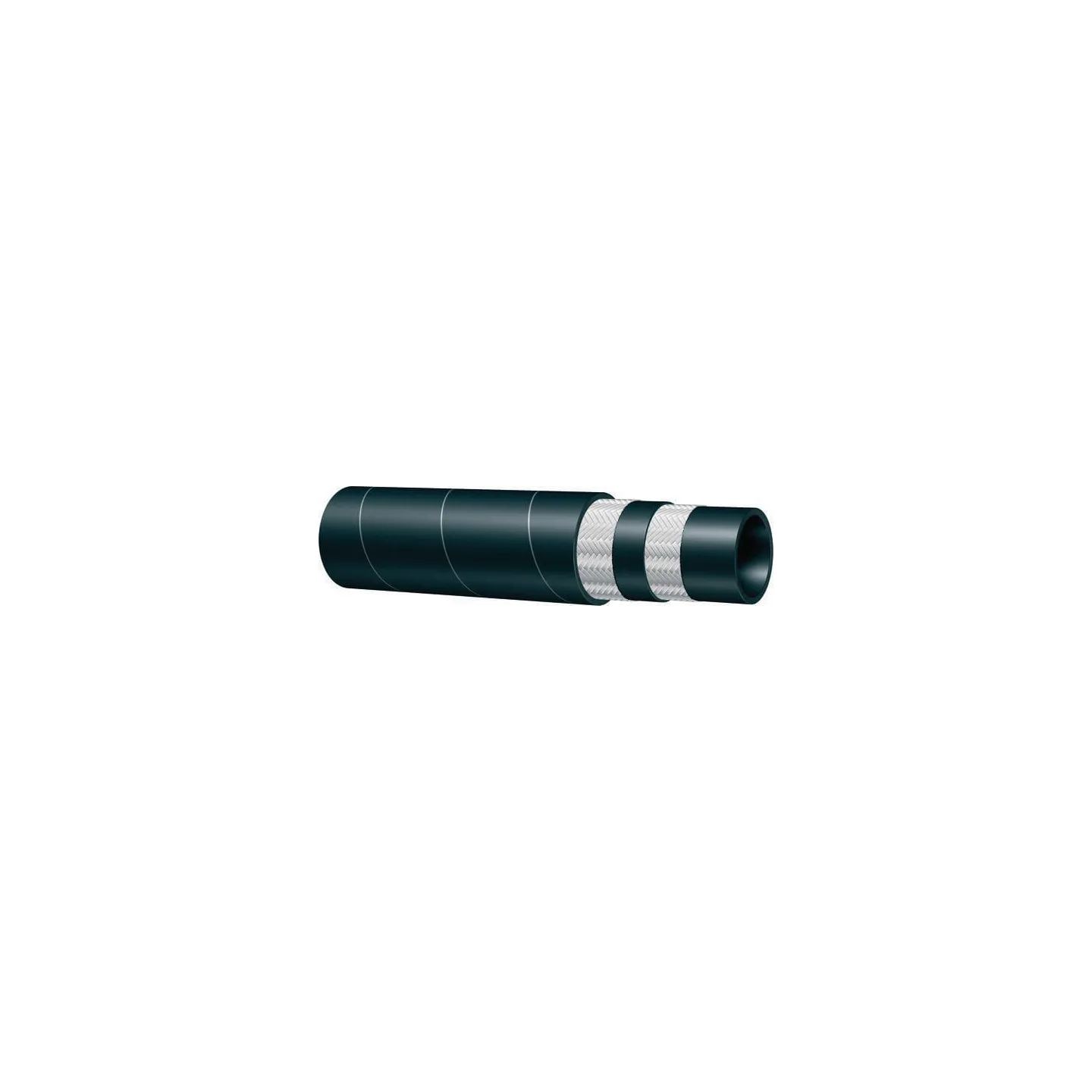

| Type | Hydraulic high pressure hose | |
| DN | 12 mm | |
| Hose outside diameter | 21.7 mm | |
| Hose outside diameter | 0.85 Inch | |
| Max working pressure | 1350 lbf/in² | |
| Burst pressure | 370 BAR | |
| Burst pressure | 37.2 MPa | |
| Burst pressure | 5400 lbf/in² | |
| Medium | Hydraulic oil | |
| Max working temperature | 100 °C | |
| Max. working temperature | 212 °F | |
| Min working temperature | -40 °C | |
| Min. working temperature | -40 °F | |
| Material outside | Synthetic rubber | |
| Reinforcement type | Braid | |
| Reinforcement number of plies | 2 | |
| Reinforcement material | Textile | |
| Weight | 0.2 lb/ft | |
| Bend radius | 3.35 Inch | |
| EN standard | 854 3TE |
