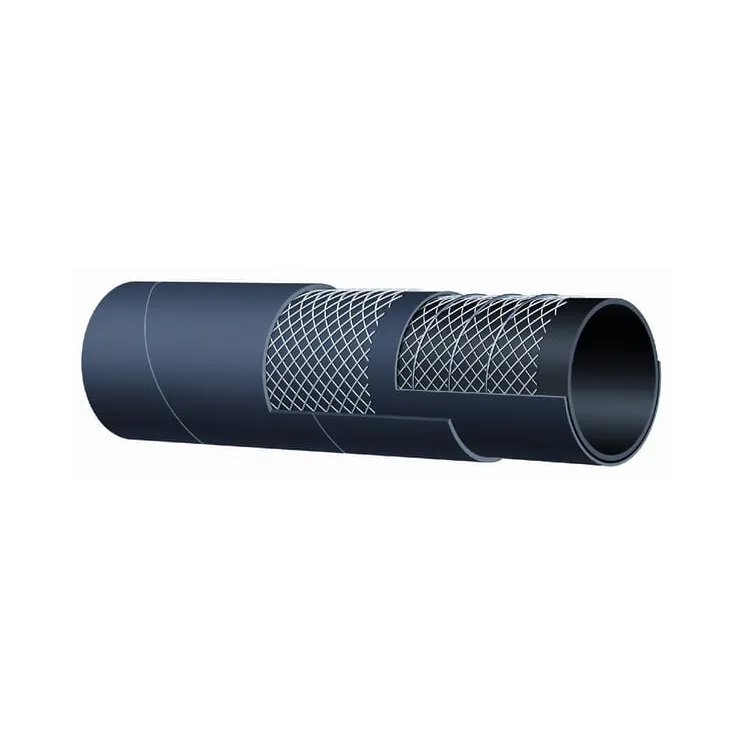

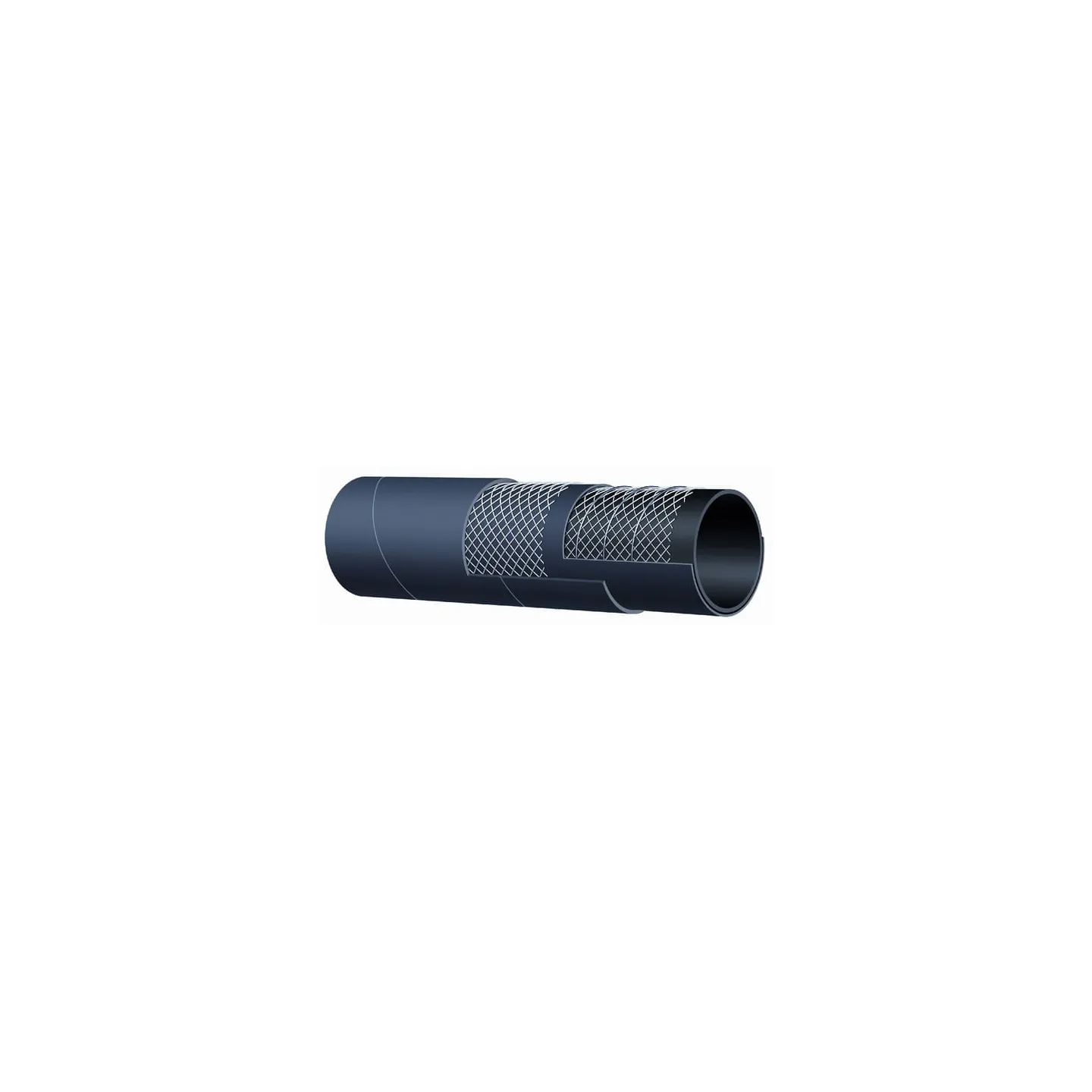

Hidrauliskā šļūtene SAE100-R4-DN25 604AA25

Name: Hidrauliskā šļūtene SAE100-R4-DN25 604AA25
Brand: Alfagomma
SKU: 604AA25
Price: 14.28 EUR
Availability: InStock

Apmaksas iespējas

14,28 €

AR PVN

4-5 Darba dienas

Hidrauliskā šļūtene SAE100-R4-DN25 604AA25 Alfagomma

IR NOLIKTAVĀ

ID: 83835

Apraksts

Part number	604AA25
EAN
Unit	Metre
Qty. Rounding	0.01
Pros	Highly flexible suction/pressure hose
Product details	Suction hose rubber with textile mesh and steel spiral Suction and transport hose for fuel and oil Mineral-based and glycol-based liquids, crude oil,... Safety factor on operating pressure: 3:1 Standard SAE 100-R4
Hose inside diameter	1 Inch
Hose inside diameter	25 mm
Max working pressure	17 BAR
Material inside	Nitrile rubber [NBR]
Bend radius	150 mm
Length	61 m
Weight	0.75 kg/m
Type	Hydraulic high pressure hose
DN	25 mm
Hose outside diameter	35 mm
Burst pressure	70 BAR
Medium	Hydraulic oil
Max working temperature	100 °C
Min working temperature	-40 °C
Material outside	Chloroprene rubber [CR]
Reinforcement type	Coil Braid
Reinforcement material	Steel Textile
Colour outside	Black
Colour inside	Black
Crimping diameter range	39.9-40.1 mm
