Šļūtene 4K-DN50 280 Bar ABTE ABTEV4KDN504S Alfagomma ABTE4KDN504S

Šļūtene 4K-DN50 280 Bar ABTE ABTEV4KDN504S ABTE4KDN504S

Name: Šļūtene 4K-DN50 280 Bar ABTE ABTEV4KDN504S ABTE4KDN504S
Brand: Alfagomma
SKU: ABTEV4KDN504S
Price: 92.98 EUR
Availability: BackOrder

Apmaksas iespējas

92,98 €

AR PVN

Pēc pieprasījuma

Šļūtene 4K-DN50 280 Bar ABTE ABTEV4KDN504S Alfagomma ABTE4KDN504S

Uz pasūtījumu

ID: 86483

Apraksts

Part number	ABTEV4KDN504S
EAN
Unit	Metre

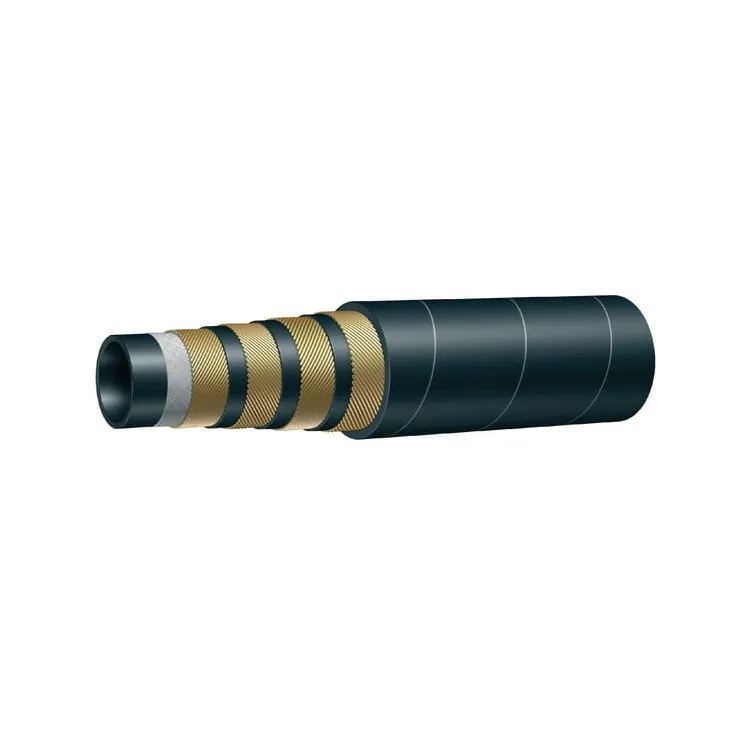

Long description	The updated Alfabiotech 4K 280 bar Evolution is stronger and more flexible than before. With its extremely small bending radius, which exceeds the standard by up to 60%, it can be used practically anywhere. Limited installation space and high performance go hand in hand. The wear-resistant outer shell also ensures a longer service life and thus reduced maintenance and replacement costs. Show more
Pros	Resistant to biological oil Highly durable outer shell Extremely flexible Very low bending radius Robust hose with shear protection
Product details	Alfabiotech 4000 Standard: ISO 18752 MSHA approved Temperature: -40°C to +121°C For systems with very high peak and pulse pressures in e.g. agricultural and earth moving machinery and for use in drive shafts Biological, mineral and glycol-based liquids Robust interlock hose with shear protection 4 steel inlays Always consult the latest press dimensions tables, see downloads at the bottom of each web page
Hose inside diameter	2 Inch
Hose inside diameter	51 mm
Max working pressure	280 BAR
Bend radius	318 mm
Hose outside diameter	64.7 mm
Hose outside diameter	2.55 Inch
Size	50
Max working pressure	4000 lbf/in²
Burst pressure	1120 BAR
Burst pressure	112 MPa
Burst pressure	16000 lbf/in²
Max working temperature	120 °C
Max. working temperature	250 °F
Min working temperature	-40 °C
Min. working temperature	-40 °F
Number of plies	4
Bend radius	12.52 Inch
ISO standard	18752
