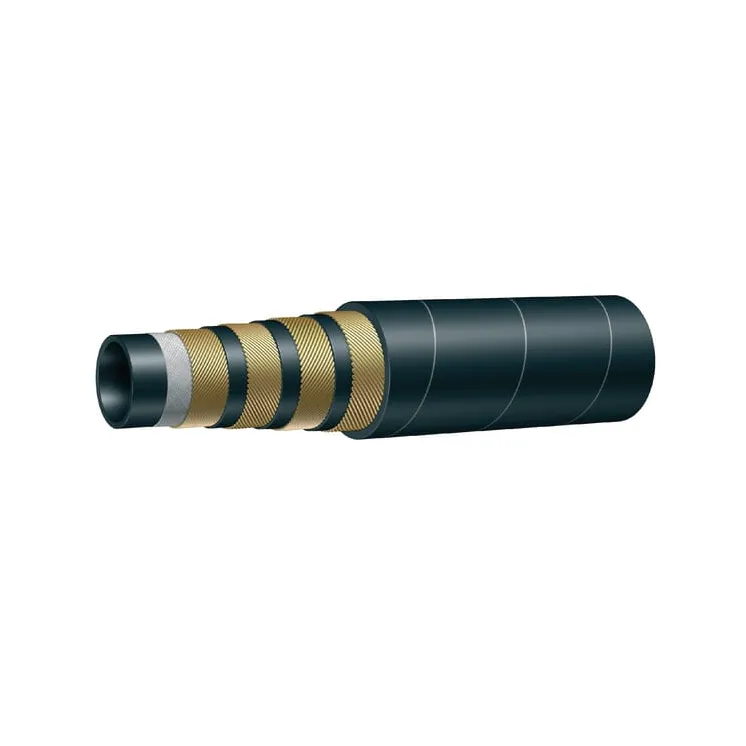

• Šļūtene 4K-DN40 280 Bar ABTE ABTEV4KDN404S Alfagomma ABTE4KDN404S

Šļūtene 4K-DN40 280 Bar ABTE ABTEV4KDN404S ABTE4KDN404S

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
67,88 €
AR PVN
Pēc pieprasījuma
Šļūtene 4K-DN40 280 Bar ABTE ABTEV4KDN404S Alfagomma ABTE4KDN404S
Uz pasūtījumu

86486

Part number
ABTEV4KDN404S
EAN
Unit
Metre
Long description
The updated Alfabiotech 4K 280 bar Evolution is stronger and more flexible than before. With its extremely small bending radius, which exceeds the standard by up to 60%, it can be used practically anywhere. Limited installation space and high performance go hand in hand. The wear-resistant outer shell also ensures a longer service life and thus reduced maintenance and replacement costs.
Show more
Pros
  • Resistant to biological oil
  • Highly durable outer shell
  • Extremely flexible
  • Very low bending radius
  • Robust hose with shear protection
Product details
  • Alfabiotech 4000
  • Standard: ISO 18752
  • MSHA approved
  • Temperature: -40°C to +121°C
  • For systems with very high peak and pulse pressures in e.g. agricultural and earth moving machinery and for use in drive shafts
  • Biological, mineral and glycol-based liquids
  • Robust interlock hose with shear protection
  • 4 steel inlays
  • Always consult the latest press dimensions tables, see downloads at the bottom of each web page
Hose inside diameter
1-1/2 Inch
Hose inside diameter
38 mm
Max working pressure
290 BAR
Bend radius
250 mm
Hose outside diameter
50.6 mm
Hose outside diameter
1.99 Inch
Size
40
Max working pressure
4200 lbf/in²
Burst pressure
1160 BAR
Burst pressure
116 MPa
Burst pressure
16800 lbf/in²
Max working temperature
120 °C
Max. working temperature
250 °F
Min working temperature
-40 °C
Min. working temperature
-40 °F
Number of plies
4
Bend radius
9.84 Inch
ISO standard
18752
  • Zīmols
  • Norāde
    ABTEV4KDN404S
  • Stāvoklis
    Jauns
  • Citi kodi
    ABTE4KDN404S
