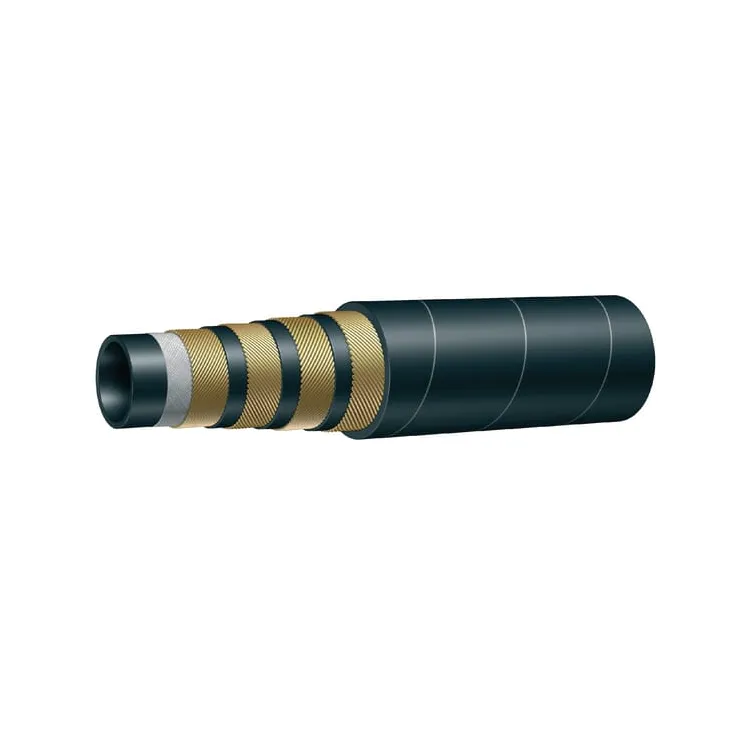

Šļūtene 5K-DN25 350 Bar ABTE ABTEV5KDN254S

Name: Šļūtene 5K-DN25 350 Bar ABTE ABTEV5KDN254S
Brand: Alfagomma
SKU: ABTEV5KDN254S
Price: 35.15 EUR
Availability: InStock

Apmaksas iespējas

35,15 €

AR PVN

4-5 Darba dienas

Šļūtene 5K-DN25 350 Bar ABTE ABTEV5KDN254S Alfagomma

IR NOLIKTAVĀ

ID: 86494

Apraksts

Part number	ABTEV5KDN254S
EAN
Unit	Metre
Long description	The updated Alfabiotech 5K 350 bar Evolution is stronger and more flexible than before. With its extremely small bending radius, which exceeds the standard by up to 60%, it can be used practically anywhere. Limited installation space and high performance go hand in hand. The wear-resistant outer shell also ensures a longer service life and thus reduced maintenance and replacement costs. Show more
Pros	Resistant to biological oil Highly durable outer shell Extremely flexible Very low bending radius Robust hose with shear protection
Product details	Alfabiotech 5000 Standard: ISO 18752 MSHA approved Temperature: -40°C to +121°C For systems with very high peak and pulse pressures in e.g. agricultural and earth moving machinery and for use in drive shafts Biological, mineral and glycol-based liquids Robust interlock hose with shear protection 4 to 6 steel inlays Always consult the latest press dimensions tables, see downloads at the bottom of each web page
Hose inside diameter	1 Inch
Hose inside diameter	25 mm
Max working pressure	350 BAR
Bend radius	150 mm
Weight	1.634 kg/m
Hose outside diameter	37.4 mm
Hose outside diameter	1.47 Inch
Size	16
Max working pressure	5000 lbf/in²
Burst pressure	1400 BAR
Burst pressure	140 MPa
Burst pressure	20000 lbf/in²
Max working temperature	120 °C
Max. working temperature	250 °F
Min working temperature	-40 °C
Reinforcement type	Spiral
Reinforcement material	Steel
Number of plies	4
Weight	1.1 lb/ft
Bend radius	5.91 Inch
ISO standard	18752
