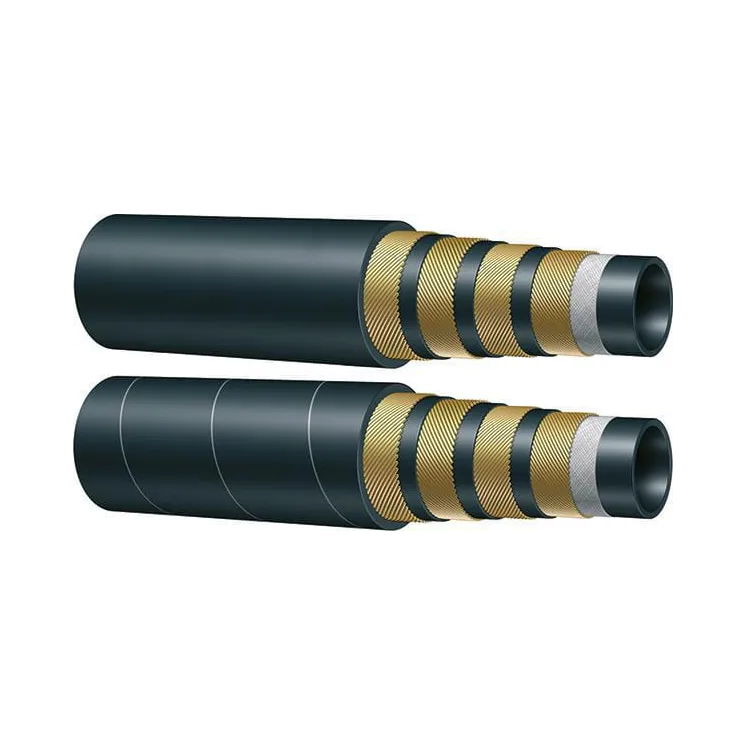

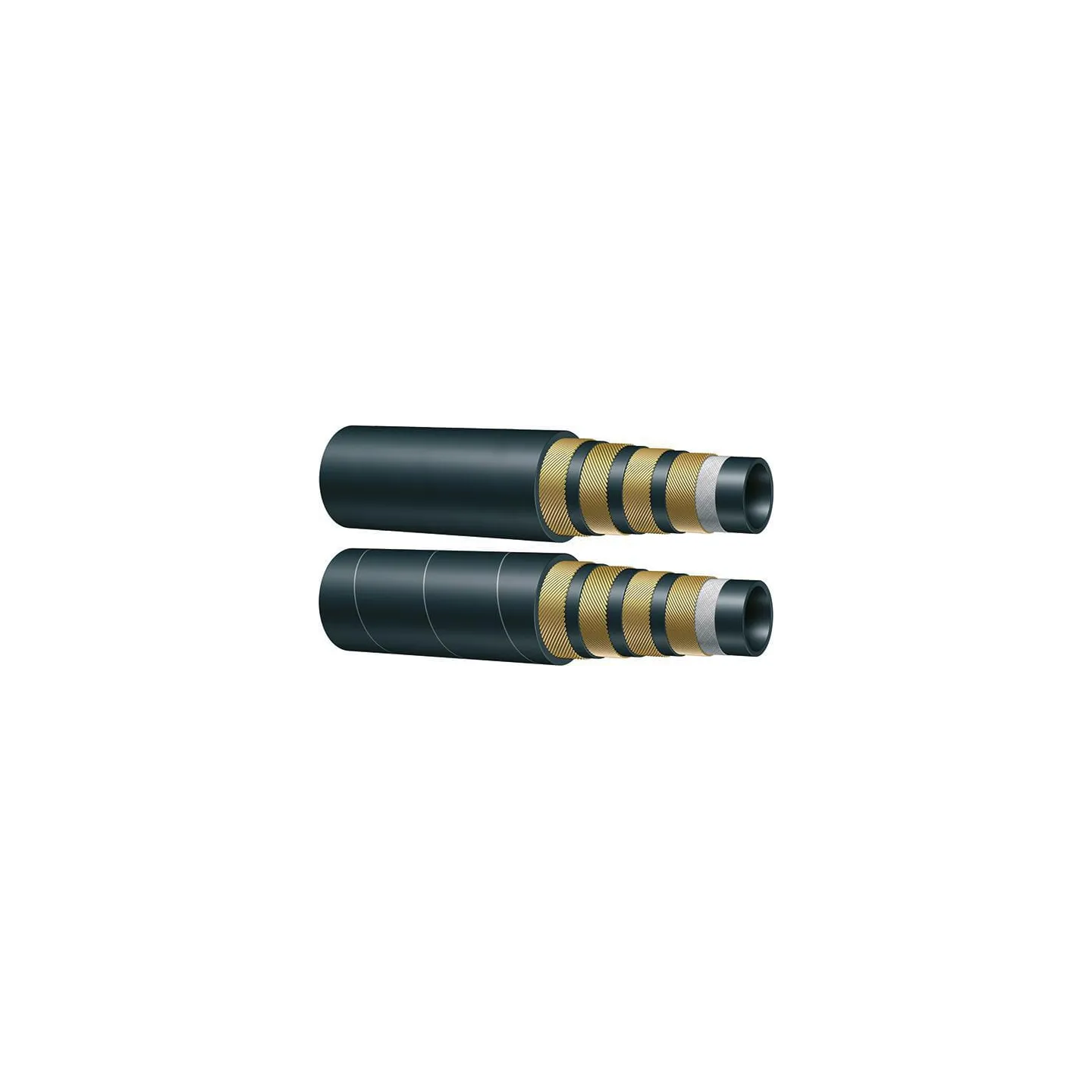

Alfabiotech šļūtene 4K-DN20 (19) ABT4KDN204S

Name: Alfabiotech šļūtene 4K-DN20 (19) ABT4KDN204S
Brand: Alfagomma
SKU: ABT4KDN204S
Price: 29.48 EUR
Availability: BackOrder

Apmaksas iespējas

29,48 €

AR PVN

Pēc pieprasījuma

Alfabiotech šļūtene 4K-DN20 (19) ABT4KDN204S Alfagomma

Uz pasūtījumu

ID: 86496

Apraksts

Part number	ABT4KDN204S
EAN
Unit	Metre
Qty. Rounding	0.01
Pros	Biological oil-resistant hose Highly durable outer shell Very small minimum bending radius Flexible Robust hose with shear protection
Product details	Hydraulic hose rubber with 4 steel wires with high tensile strength. smooth outer sheath up to 1" , larger diameters are wound. Alfabiotech 4000 Resistant to biological oil Standard: ISO 18752 MSHA approved Temperature: -40°C to +121°C
Hose inside diameter	3/4 Inch
Hose inside diameter	19 mm
Max working pressure	280 BAR
Bend radius	120 mm
Weight	1.019 kg/m
Hose outside diameter	29.5 mm
Hose outside diameter	1.16 Inch
Size	20
Max working pressure	4000 lbf/in²
Burst pressure	1120 BAR
Burst pressure	112 MPa
Burst pressure	16000 lbf/in²
Max working temperature	120 °C
Max. working temperature	250 °F
Min working temperature	-40 °C
Min. working temperature	-40 °F
Number of plies	4
Weight	0.69 lb/ft
Bend radius	4.72 Inch
ISO standard	18752
Additional info	*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
