• SAE šļūtene 100 R7 1/2 CR713A Alfagomma

SAE šļūtene 100 R7 1/2 CR713A

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
14,64 €
AR PVN
Pēc pieprasījuma
SAE šļūtene 100 R7 1/2 CR713A Alfagomma
Uz pasūtījumu

87351

  • Zīmols
  • Norāde
    CR713A
  • Stāvoklis
    Jauns
Apmaksa
100% Droši maksājumi
Piegāde
Ātri piegādes risinājumi
Preču atgriešana
30 dienu preces atgriešanas iespēja

Komentāri (0)

Šobrid vēl nav klientu atsauksmju.
Loading...
Part number
CR713A
EAN
Unit
Metre
Qty. Rounding
0.01
Details

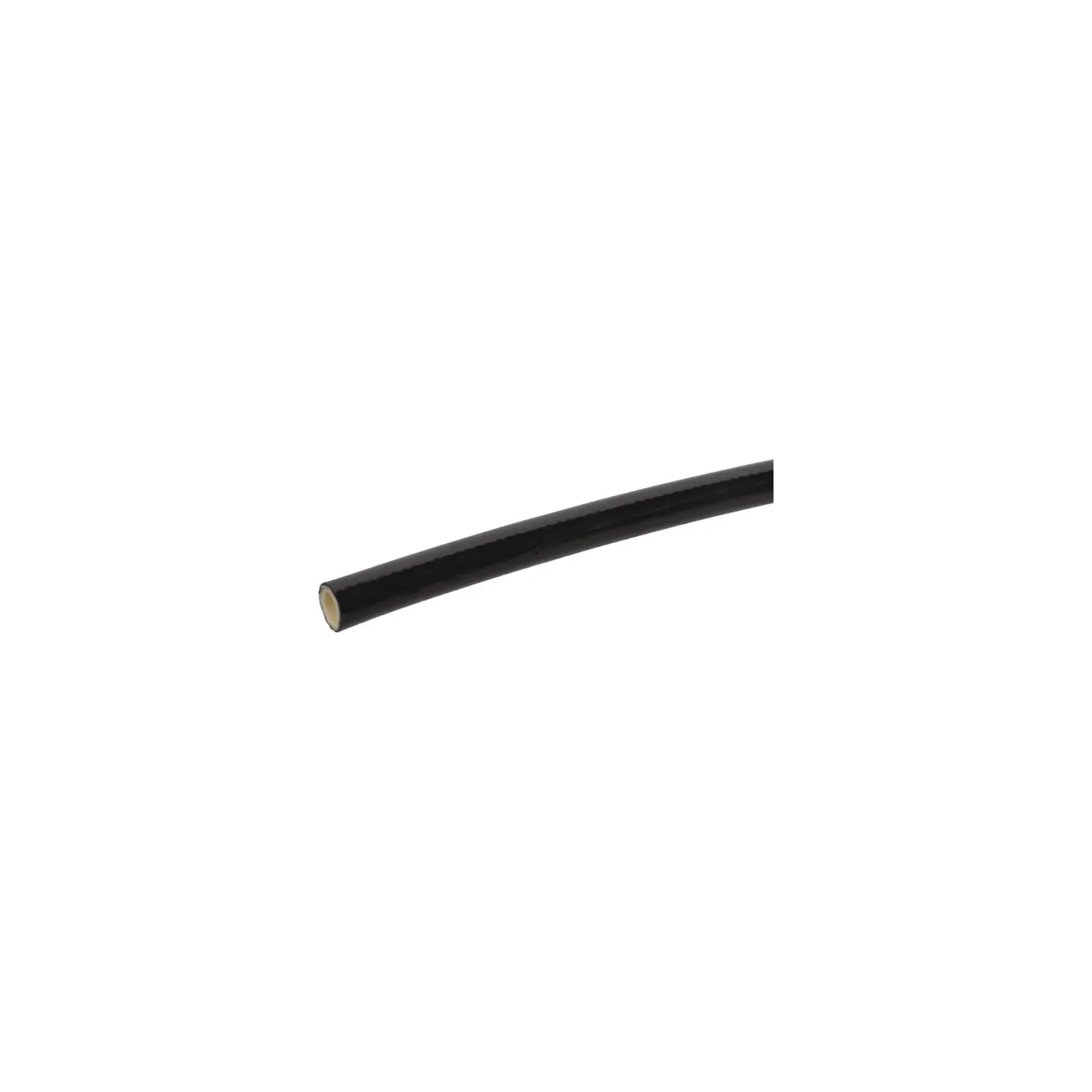

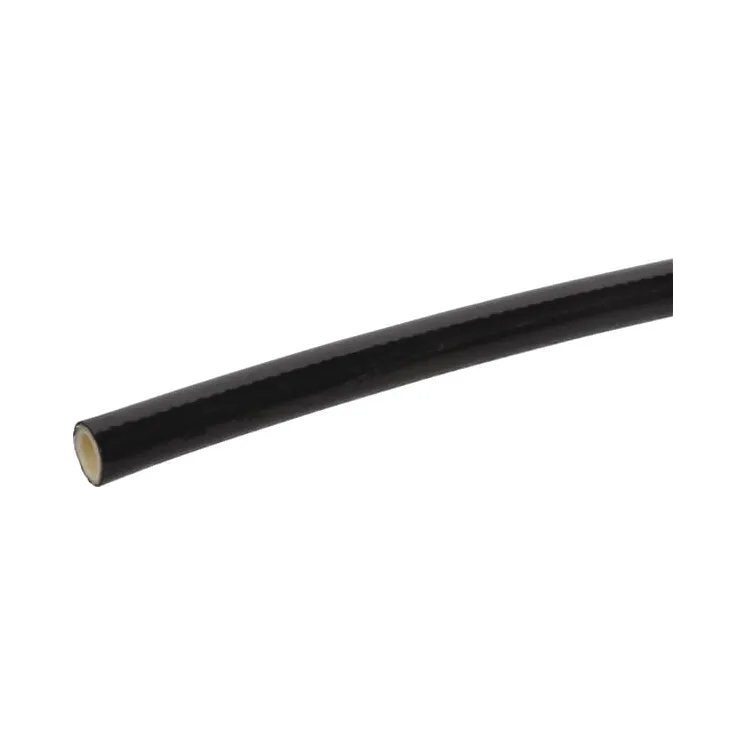

Plastic hydraulic hose with 1 layer of high-strength synthetic fibre mesh
Application range
  • Medium pressure hydraulic systems
  • Forklifts
  • Lifting platforms
  • Hose reels
  • Mineral oil-based and glycol-based fluids
  • Vegetable and mineral lubricants
  • Crude oils, coolant, compressed air
Properties
  • Light, thin hose for relatively high operating pressure
  • Very low bending radius
  • Oil-resistant, smooth outer coating
  • Thermoplastic hose
Technical info
  • Temperature for mineral oil based liquids: -40°C to +100°C
  • Temperature for synthetic hydraulic fluids and water-based liquids: -40°C to +57°C
  • Available lengths: by the metre
Benefits
  • Light, thin and flexible hose for relatively high operating pressure
  • Precisely co-ordinated pressure and return flow
Hose inside diameter
1/2 Inch
Hose inside diameter
13 mm
Max working pressure
140 BAR
Material inside
Polyester
Bend radius
75 mm
Weight
0.22 kg/m
Type
Hydraulic high pressure hose
DN
13 mm
Hose outside diameter
20.3 mm
Hose outside diameter
0.8 Inch
Max working pressure
2000 lbf/in²
Burst pressure
560 BAR
Burst pressure
56 MPa
Burst pressure
8000 lbf/in²
Medium
Hydraulic oil
Max working temperature
100 °C
Max. working temperature
212 °F
Min working temperature
-40 °C
Min. working temperature
-40 °F
Material outside
Polyurethane
Reinforcement type
Braid
Reinforcement material
Textile
Weight
0.15 lb/ft
Bend radius
2.95 Inch
EN standard
855 R7
Crimping diameter range
22.6-22.8 mm
Original number equivalent
1000294
