TWB šļūtene dubultā 3/8 CR81010A

Name: TWB šļūtene dubultā 3/8 CR81010A
Brand: Alfagomma
SKU: CR81010A
Price: 20.88 EUR
Availability: BackOrder

Apmaksas iespējas

20,88 €

AR PVN

Pēc pieprasījuma

TWB šļūtene dubultā 3/8 CR81010A Alfagomma

Uz pasūtījumu

ID: 87355

Apraksts

Part number	CR81010A
EAN
Unit	Metre
Qty. Rounding	0.01
Long description	Hydraulic hose CR 8

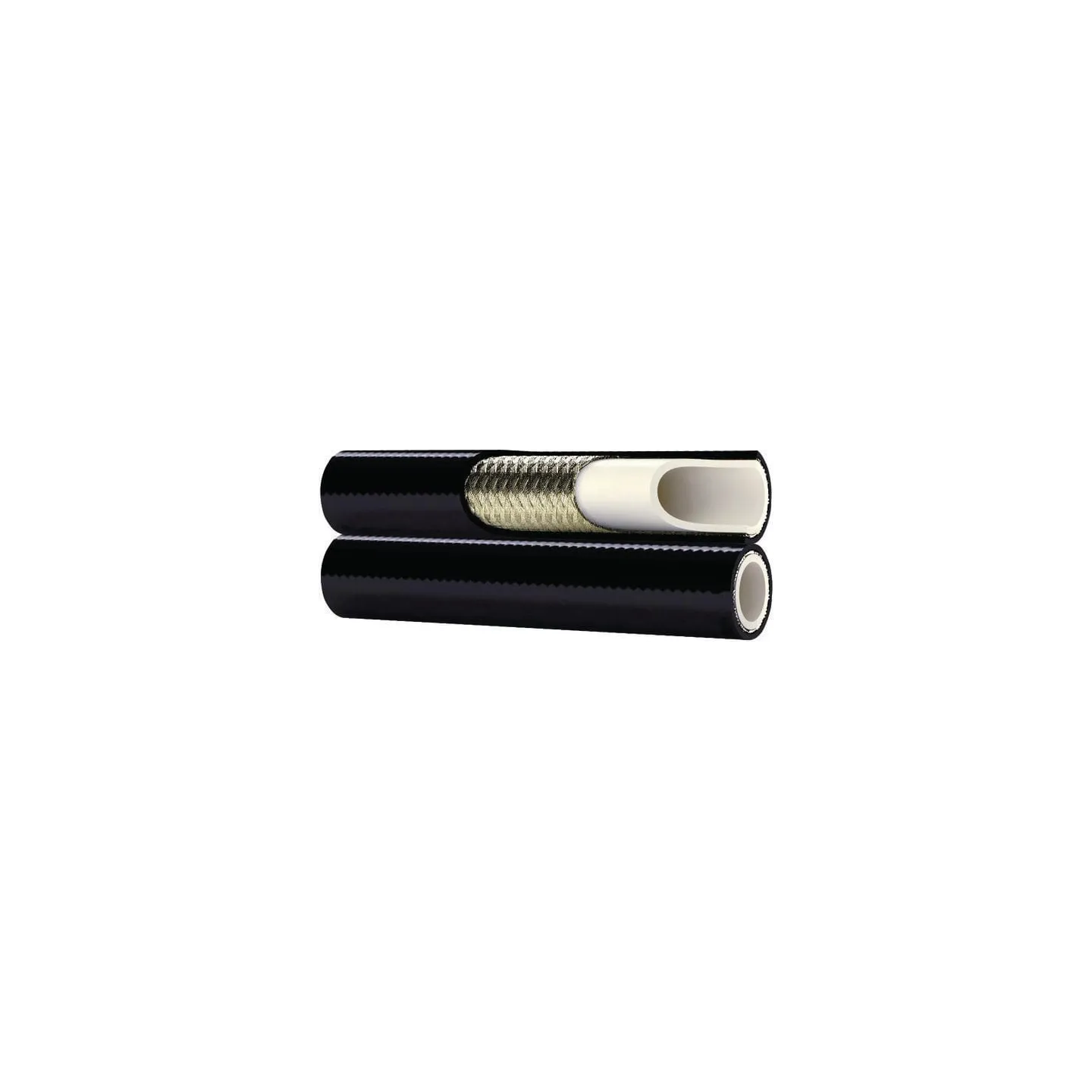

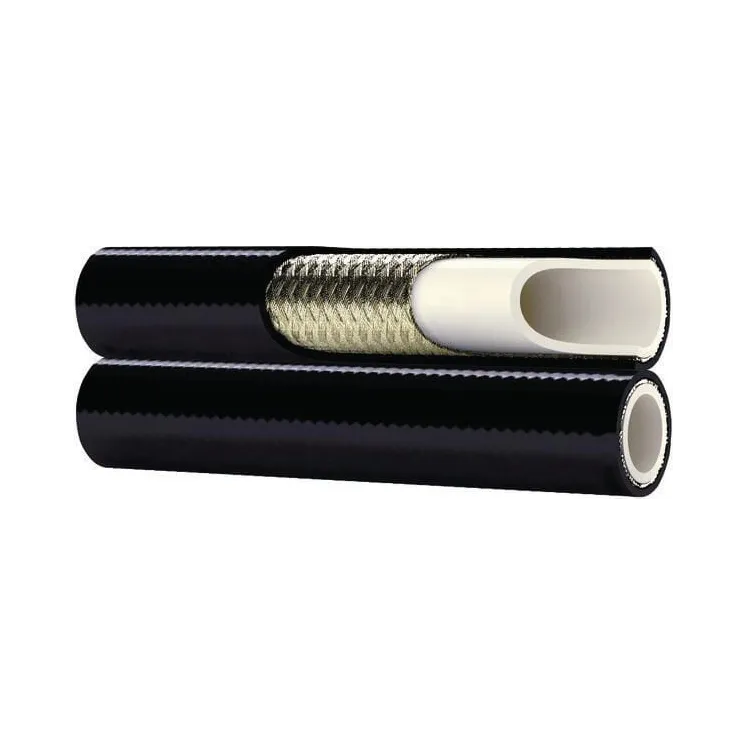

Details	Plastic hydraulic hose with 1 ply of high-strength steel wire mesh
Application range	High pressure hydraulic systems Machine tools Servo controls Mineral oil-based and glycol-based fluids Vegetable and mineral lubricants Crude oils, coolant, compressed air
Properties	Very low bending radius Oil-resistant, smooth outer coating Thermoplastic hose
Technical info	Temperature for mineral oil based liquids: 100°C Temperature for synthetic hydraulic fluids and water-based liquids: 57°C Available lengths: by the metre
Benefits	Light, thin and flexible hose for relatively high operating pressure
Hose inside diameter	3/8 Inch
Hose inside diameter	10 mm
Max working pressure	210 BAR
Material inside	Polyester
Bend radius	65 mm
Weight	0.5 kg/m
Type	Hydraulic high pressure hose
DN	10 mm
Hose outside diameter	15.1 mm
Burst pressure	840 BAR
Medium	Hydraulic oil
Max working temperature	57 °C
Min working temperature	-40 °C
Material outside	Polyurethane
Reinforcement type	Braid
Reinforcement material	Steel
Original number equivalent	1000287
