| Part number | CR71010A | |
|---|---|---|
| EAN | ||
| Unit | Metre | |
| Qty. Rounding | 0.01 | |

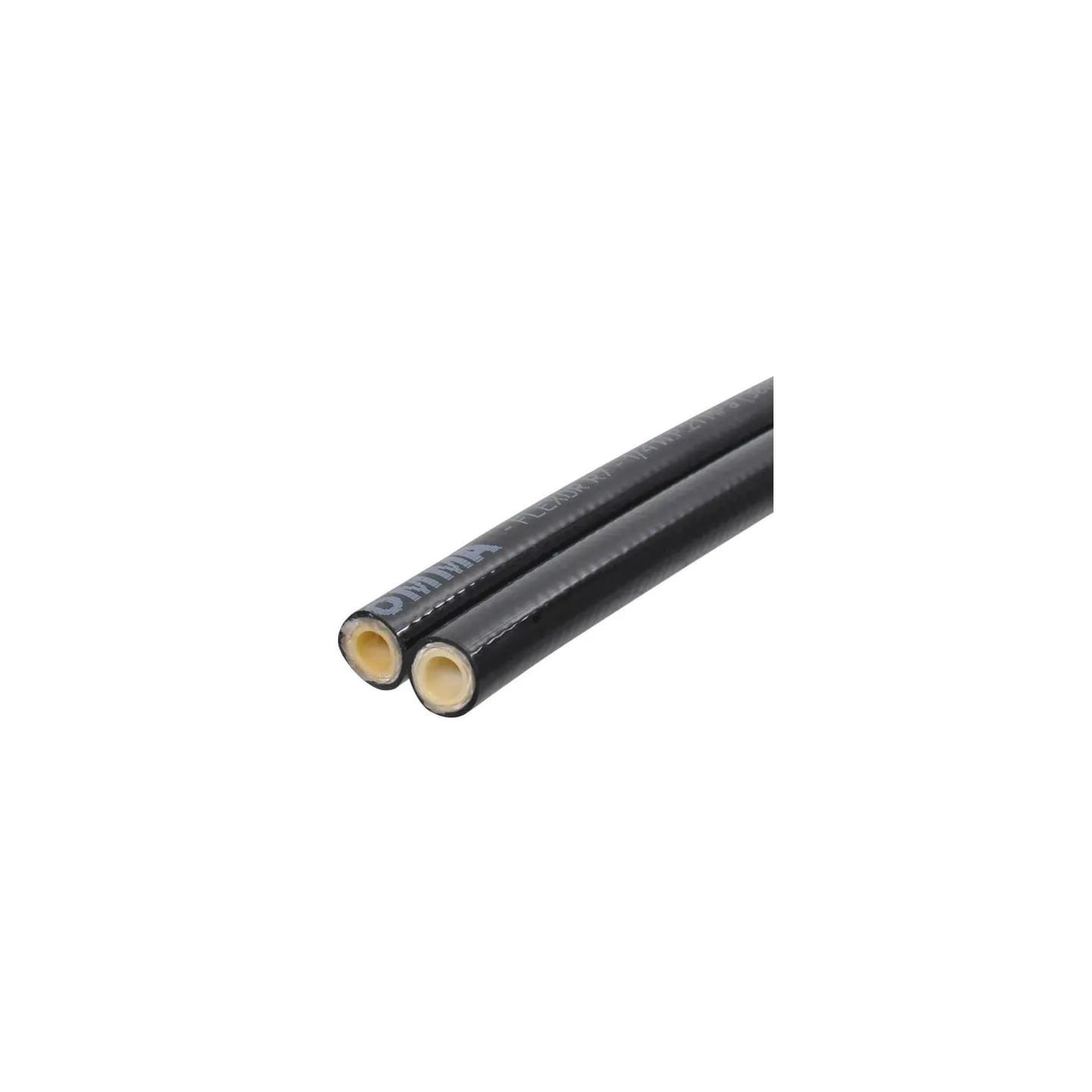

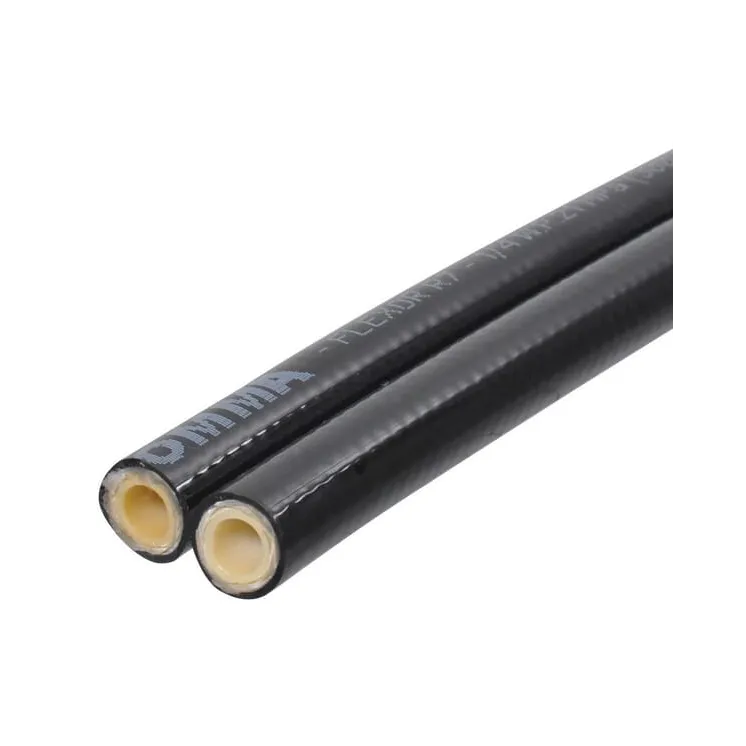

| Long description | Hydraulic hose CR 7 Siamese | |
| Details |
| |
| Application range |
| |
| Properties |
| |
| Technical info |
| |
| Benefits |
| |
| Hose inside diameter | 3/8 Inch | |
| Hose inside diameter | 10 mm | |
| Max working pressure | 155 BAR | |
| Material inside | Polyester elastomer | |
| Bend radius | 55 mm | |
| Weight | 0.29 kg/m | |
| Type | Hydraulic high pressure hose | |
| DN | 10 mm | |
| Hose outside diameter | 15.9 mm | |
| Hose outside diameter | 0.63 Inch | |
| Max working pressure | 2320 lbf/in² | |
| Burst pressure | 560 BAR | |
| Burst pressure | 64 MPa | |
| Burst pressure | 9280 lbf/in² | |
| Medium | Hydraulic oil | |
| Max working temperature | 100 °C | |
| Max. working temperature | 212 °F | |
| Min working temperature | -40 °C | |
| Min. working temperature | -40 °F | |
| Material outside | Polyurethane | |
| Reinforcement type | Braid | |
| Reinforcement material | Syntal | |
| Weight | 0.2 lb/ft | |
| Bend radius | 2.17 Inch | |
| Norm | SAE 100 R7 | |
| EN standard | 855 R7 | |
| Original number equivalent | 1000300 | |
| Additional info | *Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver. |
