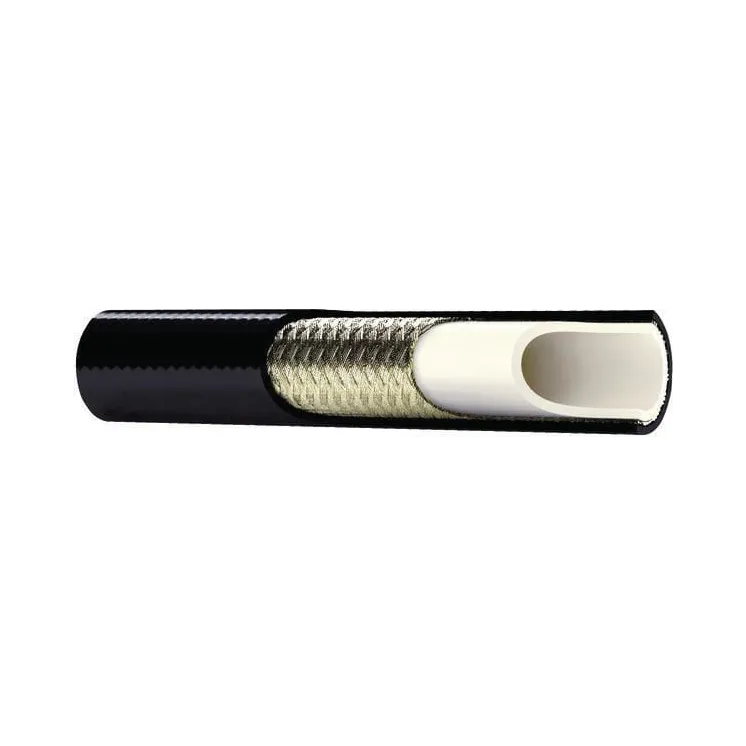

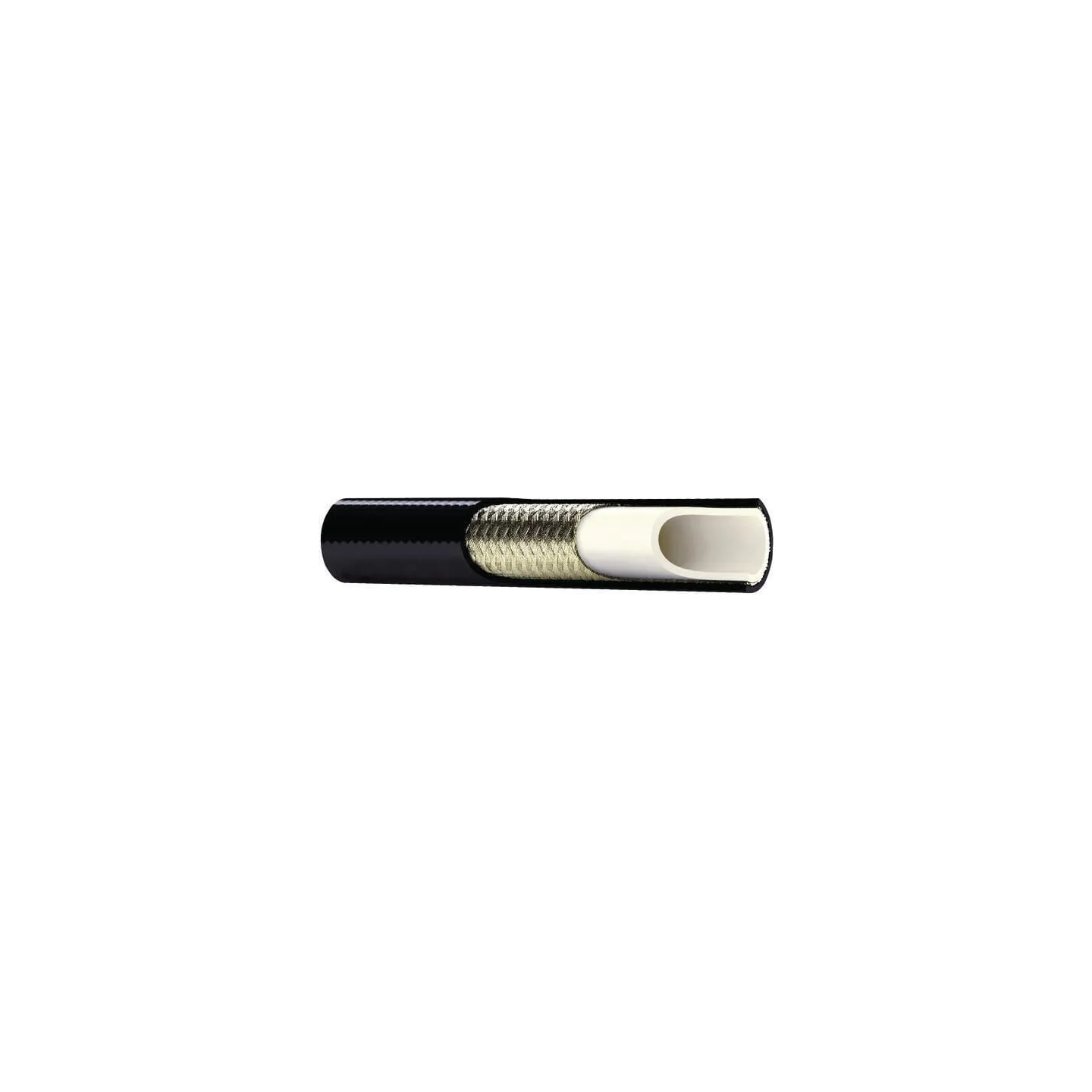

Šļūtene TWB 1/4 DN06 CR86A

Name: Šļūtene TWB 1/4 DN06 CR86A
Brand: Alfagomma
SKU: CR86A
Price: 8.82 EUR
Availability: BackOrder

Apmaksas iespējas

8,82 €

AR PVN

Pēc pieprasījuma

Šļūtene TWB 1/4 DN06 CR86A Alfagomma

Uz pasūtījumu

ID: 87371

Apraksts

Part number	CR86A
EAN
Unit	Metre
Qty. Rounding	0.01
Long description	Hydraulic hose CR 8
Details	Plastic hydraulic hose with 1 ply of high-strength steel wire mesh
Application range	High pressure hydraulic systems Machine tools Servo controls Mineral oil-based and glycol-based fluids Vegetable and mineral lubricants Crude oils, coolant, compressed air
Properties	Very low bending radius Oil-resistant, smooth outer coating Thermoplastic hose
Technical info	Temperature for mineral oil based liquids: 100°C Temperature for synthetic hydraulic fluids and water-based liquids: 57°C Available lengths: by the metre
Benefits	Light, thin and flexible hose for relatively high operating pressure
Hose inside diameter	1/4 Inch
Hose inside diameter	6 mm
Max working pressure	310 BAR
Material inside	Polyester
Bend radius	40 mm
Weight	0.165 kg/m
Type	Hydraulic high pressure hose
DN	6 mm
Hose outside diameter	11.7 mm
Burst pressure	1240 BAR
Medium	Hydraulic oil
Max working temperature	100 °C
Min working temperature	-40 °C
Material outside	Polyurethane
Reinforcement type	Braid
Reinforcement number of plies	1
Reinforcement material	Steel
Original number equivalent	1000283
