  • SAE šļūtene 100-R7 5/16 Twin CR788A Alfagomma

SAE šļūtene 100-R7 5/16 Twin CR788A

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
18,90 €
AR PVN
4-5 Darba dienas
SAE šļūtene 100-R7 5/16 Twin CR788A Alfagomma
IR NOLIKTAVĀ

87381

  • Zīmols
    Alfagomma
  • Norāde
    CR788A
  • Pieejamās vispirms
    5 vienības:
  • Stāvoklis
    Jauns
Apmaksa
100% Droši maksājumi
Piegāde
Ātri piegādes risinājumi
Preču atgriešana
30 dienu preces atgriešanas iespēja

Komentāri (0)

Šobrid vēl nav klientu atsauksmju.
Part number
CR788A
EAN
Unit
Metre
Qty. Rounding
0.01
Long description

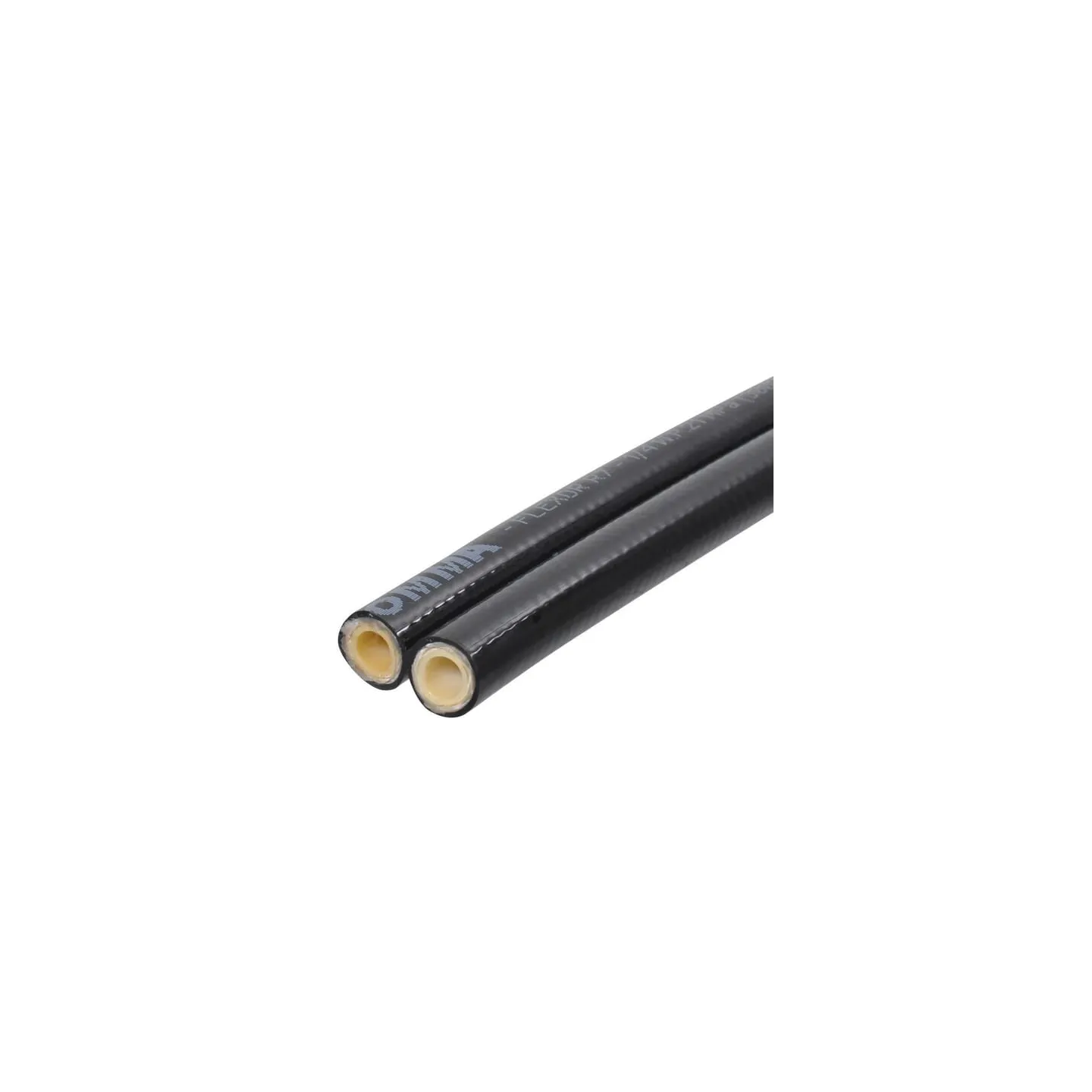

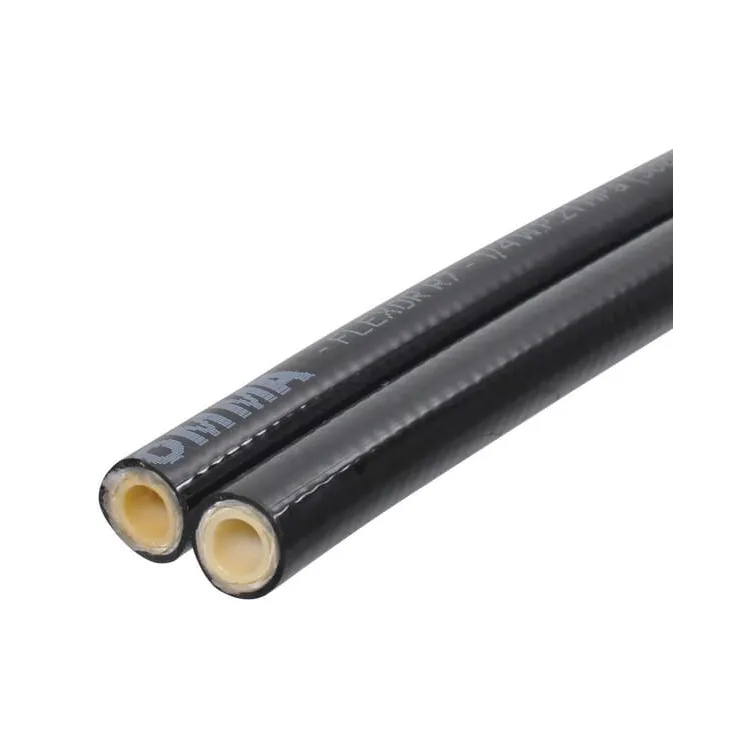

Hydraulic hose CR 7 Siamese
Details
  • Plastic hydraulic hose with 1 layer of high-strength synthetic fibre mesh
  • Double hose made from two separate, firmly connected hoses
Application range
  • Medium pressure hydraulic systems
  • Forklifts
  • Lifting platforms
  • Hose reels
  • Mineral oil-based and glycol-based fluids
  • Vegetable and mineral lubricants
  • Crude oils, coolant, compressed air
Properties
  • Light, thin hose for relatively high operating pressure
  • Very low bending radius
  • Oil-resistant, smooth outer coating
  • Thermoplastic hose
Technical info
  • Temperature for mineral oil based liquids: -40°C to +100°C
  • Temperature for synthetic hydraulic fluids and water-based liquids: -40°C to +57°C
  • Available lengths: by the metre
Benefits
  • Light, thin and flexible hose for relatively high operating pressure
  • Precisely co-ordinated pressure and return flow
Hose inside diameter
5/16 Inch
Hose inside diameter
8 mm
Max working pressure
175 BAR
Material inside
Polyester elastomer
Bend radius
45 mm
Weight
0.25 kg/m
Type
Hydraulic high pressure hose
DN
8 mm
Hose outside diameter
14.4 mm
Hose outside diameter
0.56 Inch
Max working pressure
2750 lbf/in²
Burst pressure
700 BAR
Burst pressure
76 MPa
Burst pressure
11000 lbf/in²
Medium
Hydraulic oil
Max working temperature
100 °C
Max. working temperature
212 °F
Min working temperature
-40 °C
Min. working temperature
-40 °F
Material outside
Polyurethane
Reinforcement type
Braid
Reinforcement material
Syntal
Weight
0.18 lb/ft
Bend radius
1.77 Inch
Norm
SAE 100 R7
EN standard
855 R7
Original number equivalent
1000299
