Ievietojiet F NS-DN25-1.7/16ORFS45 DAVNS252345

Name: Ievietojiet F NS-DN25-1.7/16ORFS45 DAVNS252345
Brand: Alfagomma
SKU: DAVNS252345
Price: 38.68 EUR
Availability: BackOrder

Apmaksas iespējas

38,68 €

AR PVN

Pēc pieprasījuma

Ievietojiet F NS-DN25-1.7/16ORFS45 DAVNS252345 Alfagomma

Uz pasūtījumu

ID: 87414

Apraksts

Part number	DAVNS252345
EAN
Unit	Each

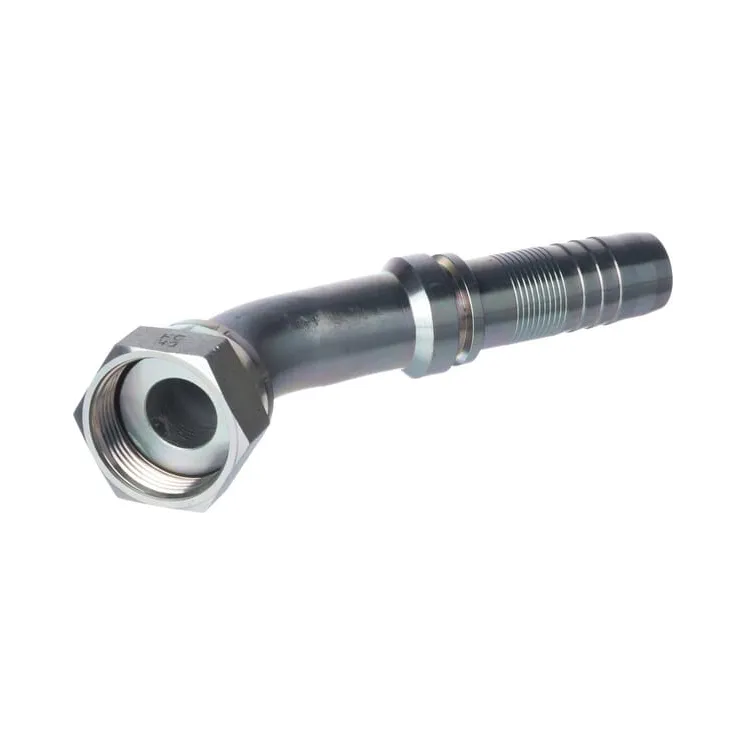

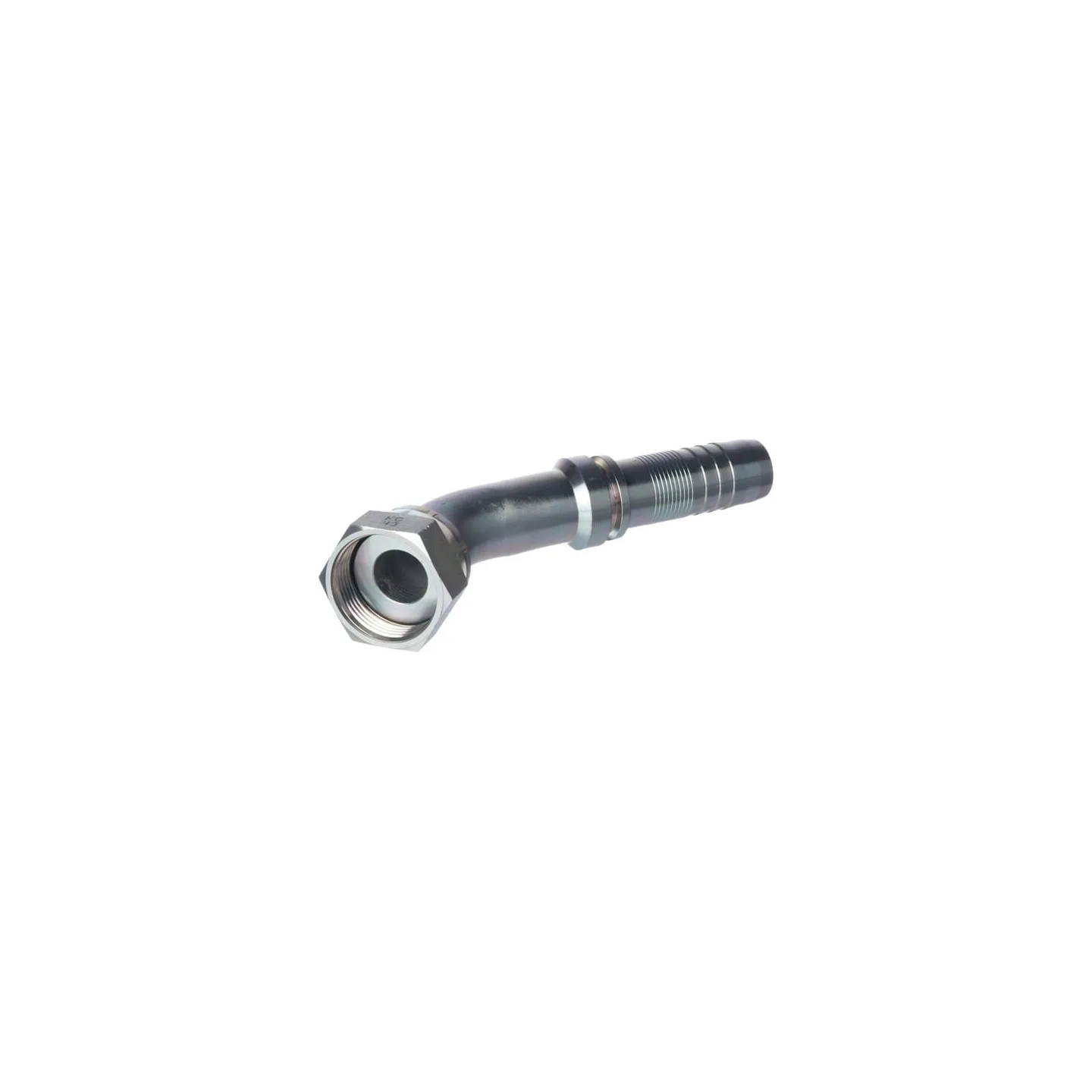

Long description	Alfagomma No-Skive press fittings (type 'NS') are designed for use in combination with Alfabiotech high-pressure hoses.
Pros	Press fittings help ensure faster and easier hose assembly and help to save costs. Processing produces less dirt, smell and waste. No special tool needed to skive the hose.
Product details	The Alfagomma No-Skive press fitting is used in combination with Alfabiotech high-pressure hoses. With these press fittings, there is no need to skive the inner and outer casing.
Angle	45 °
DConnection 2, centre to end distance	28 mm
Connection 2, diameter	1 Inch
Connection 2, diameter	25 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
F1Connection no 1 thread diameter	1-7/16 Inch
Connection no 1 type - male/female	Female
Connection no 1 type	Swivel nut
CH1Connection no 1 wrench size	41.0 mm
Shape	Elbow - 2 connection sides
