Ievietojiet F NS-DN20-1.3/16ORFS45 DAVNS201945

Name: Ievietojiet F NS-DN20-1.3/16ORFS45 DAVNS201945
Brand: Alfagomma
SKU: DAVNS201945
Price: 23.04 EUR
Availability: BackOrder

Apmaksas iespējas

23,04 €

AR PVN

Pēc pieprasījuma

Ievietojiet F NS-DN20-1.3/16ORFS45 DAVNS201945 Alfagomma

Uz pasūtījumu

ID: 87430

Apraksts

Part number	DAVNS201945
EAN
Unit	Each

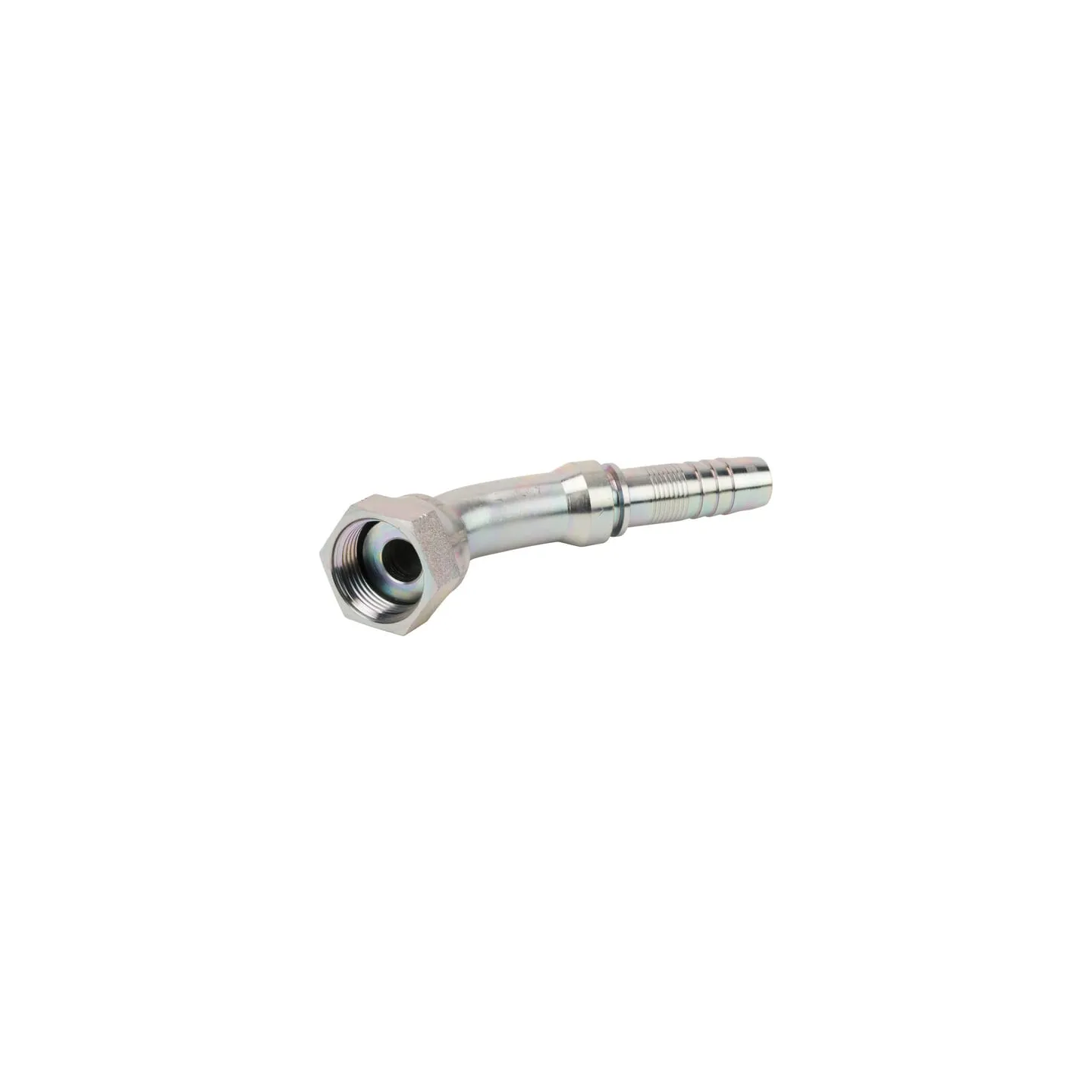

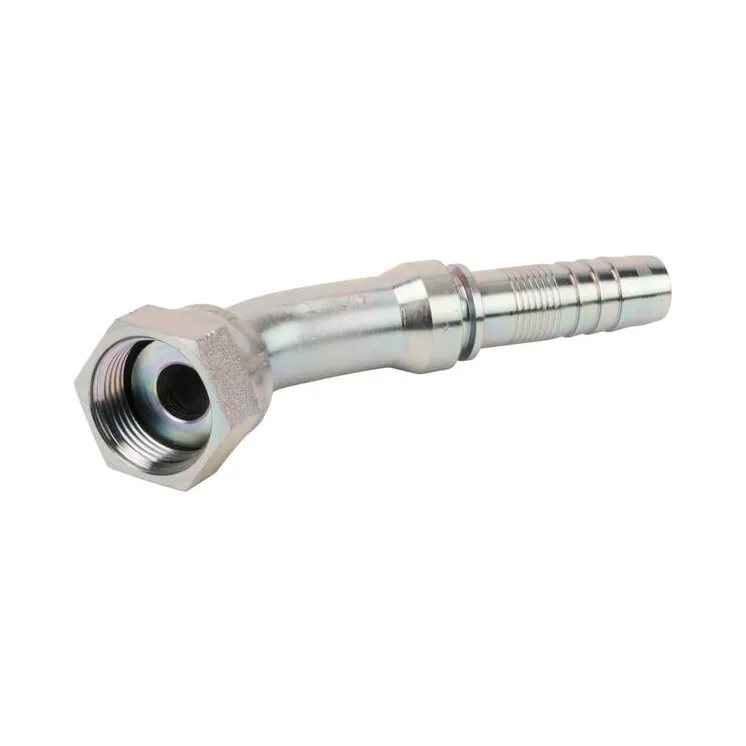

Long description	Alfagomma No-Skive press fittings (type 'NS') are designed for use in combination with Alfabiotech high-pressure hoses.
Pros	Press fittings help ensure faster and easier hose assembly and help to save costs. Processing produces less dirt, smell and waste. No special tool needed to skive the hose.
Product details	The Alfagomma No-Skive press fitting is used in combination with Alfabiotech high-pressure hoses. With these press fittings, there is no need to skive the inner and outer casing.
Angle	45 °
Connection 2, diameter	3/4 Inch
Connection 2, diameter	20 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection no 1 diameter	3/4 Inch
Connection no 1 diameter	19 mm
F1Connection no 1 thread diameter	1-3/16 Inch
Connection no 1 type - male/female	Female
Connection no 1 type	Swivel nut
CH1Connection no 1 wrench size	36.0 mm
Shape	Elbow - 2 connection sides
