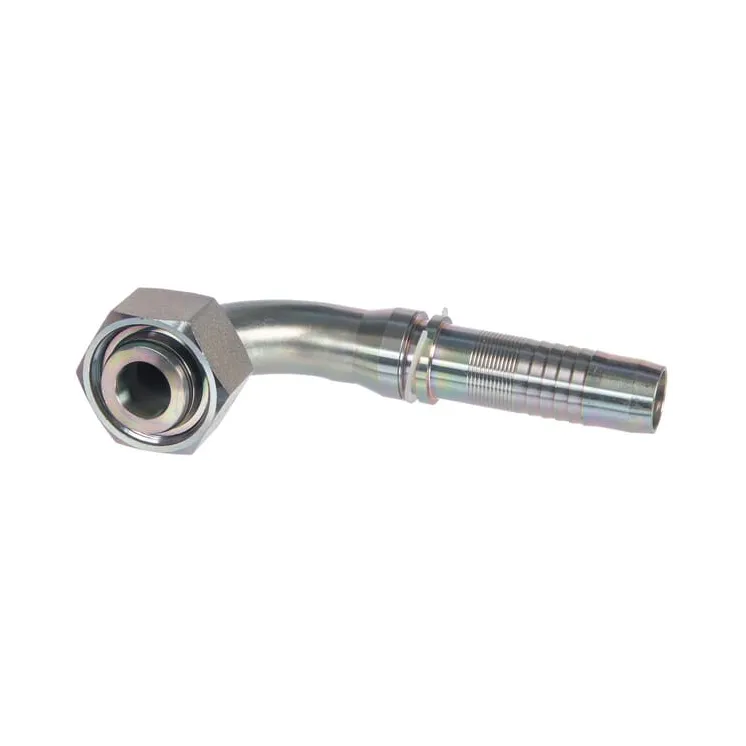

• Ievietot F NS-DN32-38S-M52x2 90 DKOSNS325290 Alfagomma

Ievietot F NS-DN32-38S-M52x2 90 DKOSNS325290

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
79,93 €
AR PVN
Pēc pieprasījuma
Ievietot F NS-DN32-38S-M52x2 90 DKOSNS325290 Alfagomma
Uz pasūtījumu

87623

Part number
DKOSNS325290
EAN
Unit
Each
Long description
Alfagomma No-Skive press fittings (type 'NS') are designed for use in combination with Alfabiotech high-pressure hoses.
Pros
  • Press fittings help ensure faster and easier hose assembly and help to save costs.
  • Processing produces less dirt, smell and waste.
  • No special tool needed to skive the hose.
Product details
  • The Alfagomma No-Skive press fitting is used in combination with Alfabiotech high-pressure hoses.
  • With these press fittings, there is no need to skive the inner and outer casing.
Angle
90 °
Connection 2, diameter
1-1/4 Inch
Connection 2, diameter
32 mm
Connection 2, type
Hose end
Connection 2, type - male/female
Male
CConnection no 1 center to end distance
97 mm
F1Connection no 1 thread pitch
2.00 mm
F1Connection no 1 thread diameter
M52
F1Connection no 1 thread type
Metric
Connection no 1 type - male/female
Female
Connection no 1 type
O-ring cone
Original number equivalent
H1321693-205200
Series
38S
Shape
Elbow - 2 connection sides
  • Zīmols
  • Norāde
    DKOSNS325290
  • Stāvoklis
    Jauns
