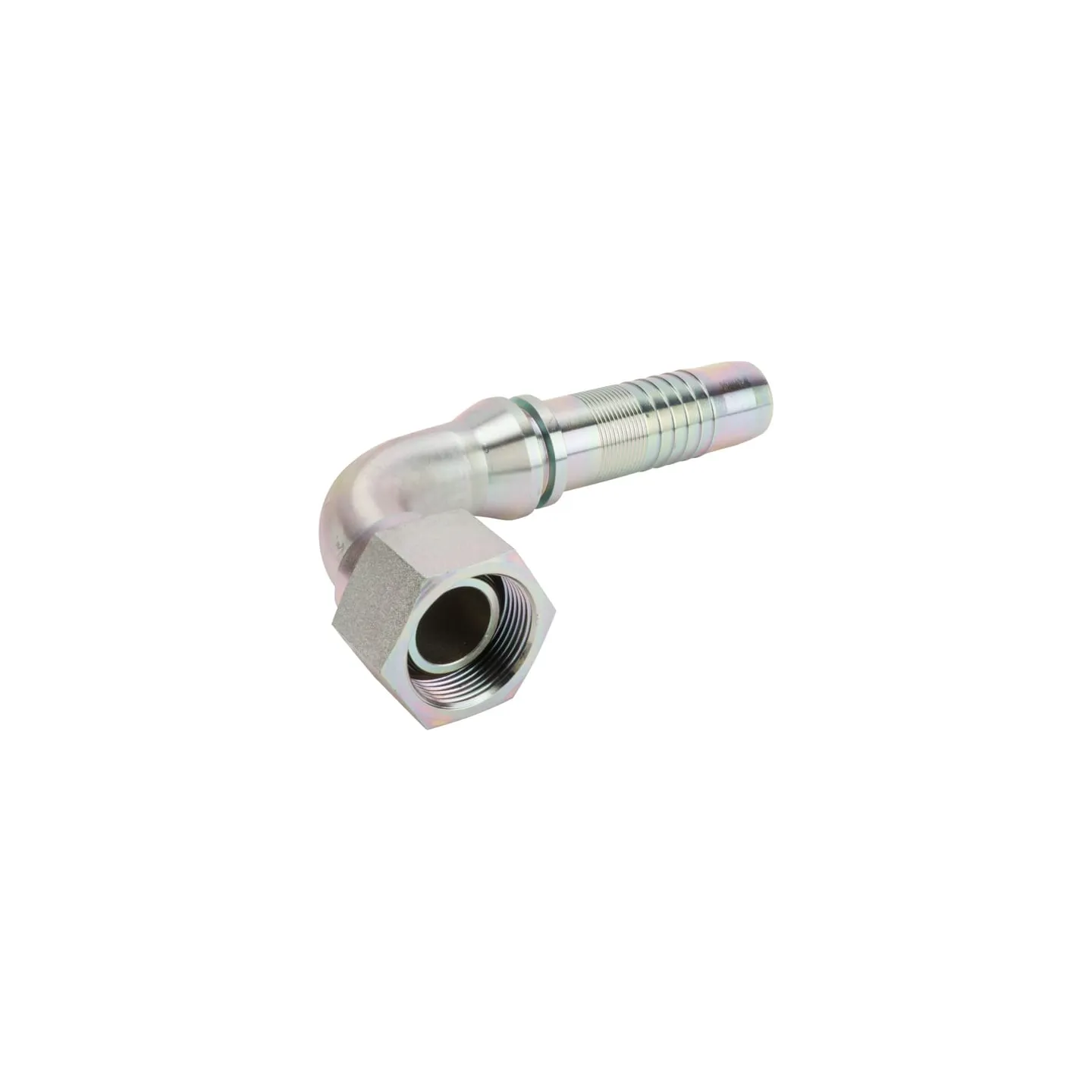

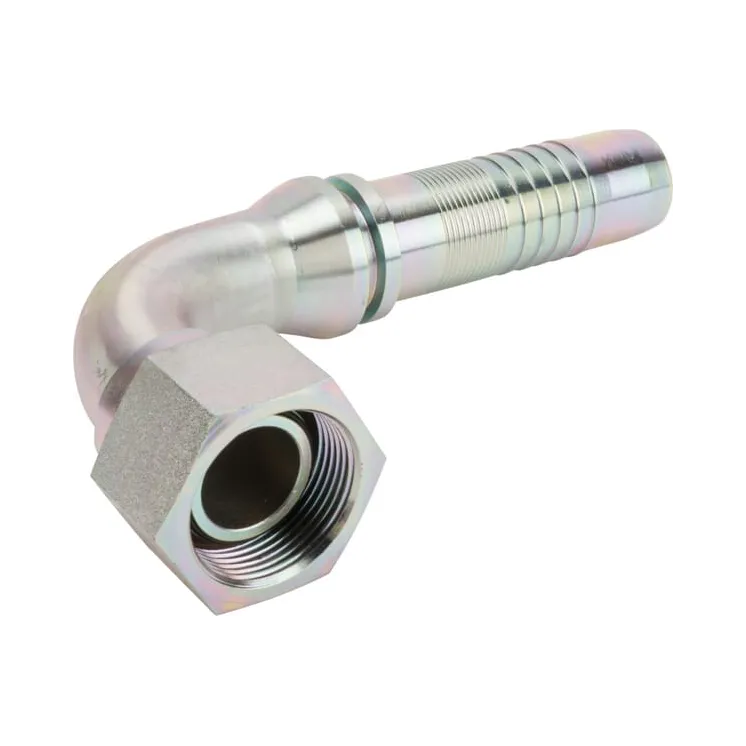

Ievietojiet F NS-DN32-1.1/4BSP90 DKRNS322090

Name: Ievietojiet F NS-DN32-1.1/4BSP90 DKRNS322090
Brand: Alfagomma
SKU: DKRNS322090
Price: 58.84 EUR
Availability: InStock

Apmaksas iespējas

58,84 €

AR PVN

4-5 Darba dienas

Ievietojiet F NS-DN32-1.1/4BSP90 DKRNS322090 Alfagomma

IR NOLIKTAVĀ

ID: 87624

Apraksts

Part number	DKRNS322090
EAN
Unit	Each
Long description	Alfagomma No-Skive press fittings (type 'NS') are designed for use in combination with Alfabiotech high-pressure hoses.
Pros	Press fittings help ensure faster and easier hose assembly and help to save costs. Processing produces less dirt, smell and waste. No special tool needed to skive the hose.
Product details	The Alfagomma No-Skive press fitting is used in combination with Alfabiotech high-pressure hoses. With these press fittings, there is no need to skive the inner and outer casing.
Angle	90 °
Connection 2, diameter	1-1/4 Inch
Connection 2, diameter	32 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
HConnection no 1 center to end distance	84.3 mm
Connection no 1 diameter	1-1/4 Inch
Connection no 1 diameter	32 mm
Connection no 1 length	83 mm
F1Connection no 1 thread diameter	1-1/4 Inch
Connection no 1 threads per inch	11
Connection no 1 type - male/female	Female
Connection no 1 type	O-ring cone
Original number equivalent	H1320892-202000
Shape	Elbow - 2 connection sides
