Ievietojiet F45 NS-DN25-25S-M36x2 DKOSNS253645

Name: Ievietojiet F45 NS-DN25-25S-M36x2 DKOSNS253645
Brand: Alfagomma
SKU: DKOSNS253645
Price: 43.27 EUR
Availability: BackOrder

Apmaksas iespējas

43,27 €

AR PVN

Pēc pieprasījuma

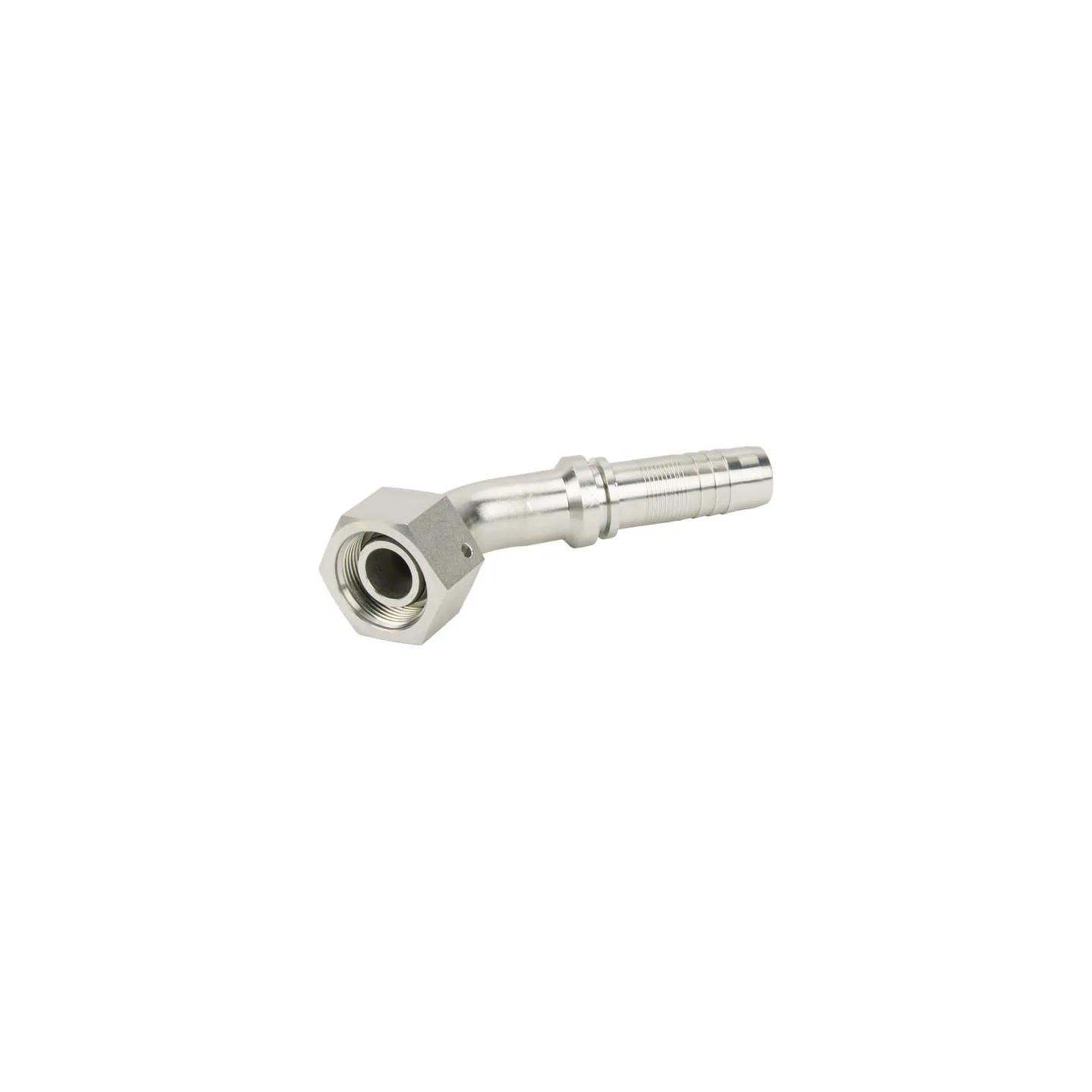

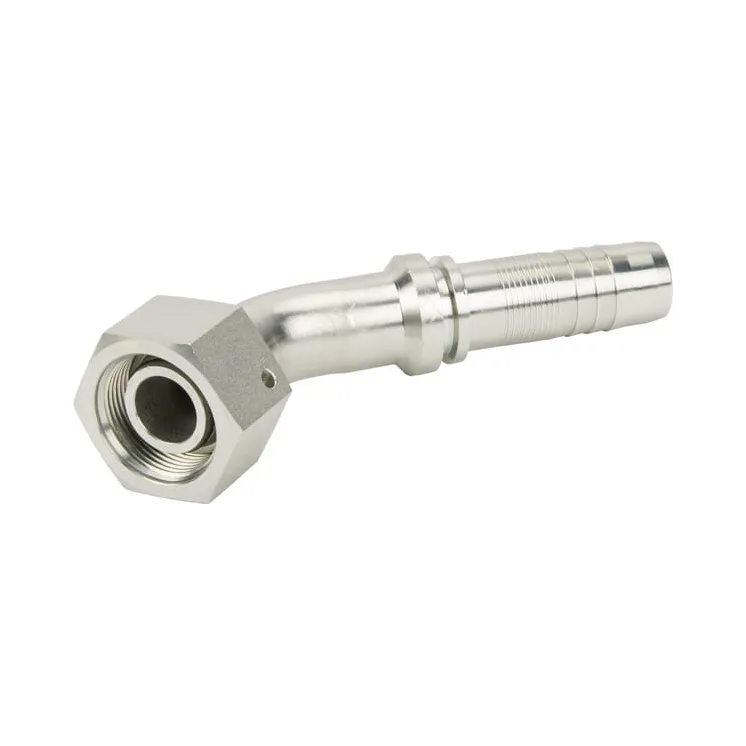

Ievietojiet F45 NS-DN25-25S-M36x2 DKOSNS253645 Alfagomma

Uz pasūtījumu

ID: 87649

Apraksts

Part number	DKOSNS253645
EAN
Unit	Each
Long description	Alfagomma No-Skive press fittings (type 'NS') are designed for use in combination with Alfabiotech high-pressure hoses.
Pros	Press fittings help ensure faster and easier hose assembly and help to save costs. Processing produces less dirt, smell and waste. No special tool needed to skive the hose.
Product details	The Alfagomma No-Skive press fitting is used in combination with Alfabiotech high-pressure hoses. With these press fittings, there is no need to skive the inner and outer casing.
Angle	45 °
DConnection 2, centre to end distance	86.5 mm
Connection 2, diameter	1 Inch
Connection 2, diameter	25 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection no 1 center to end distance	37.5 mm
F1Connection no 1 thread pitch	2.00 mm
F1Connection no 1 thread diameter	M36
F1Connection no 1 thread type	Metric
F1Connection no 1 type - male/female	Female
Connection no 1 type	O-ring cone
Original number equivalent	H1321642-163600
Series	25S
Shape	Elbow - 2 connection sides
