Ievietojiet F NS-DN20-20S-M30x2 DKOSNS2030

Name: Ievietojiet F NS-DN20-20S-M30x2 DKOSNS2030
Brand: Alfagomma
SKU: DKOSNS2030
Price: 28.37 EUR
Availability: BackOrder

Apmaksas iespējas

28,37 €

AR PVN

Pēc pieprasījuma

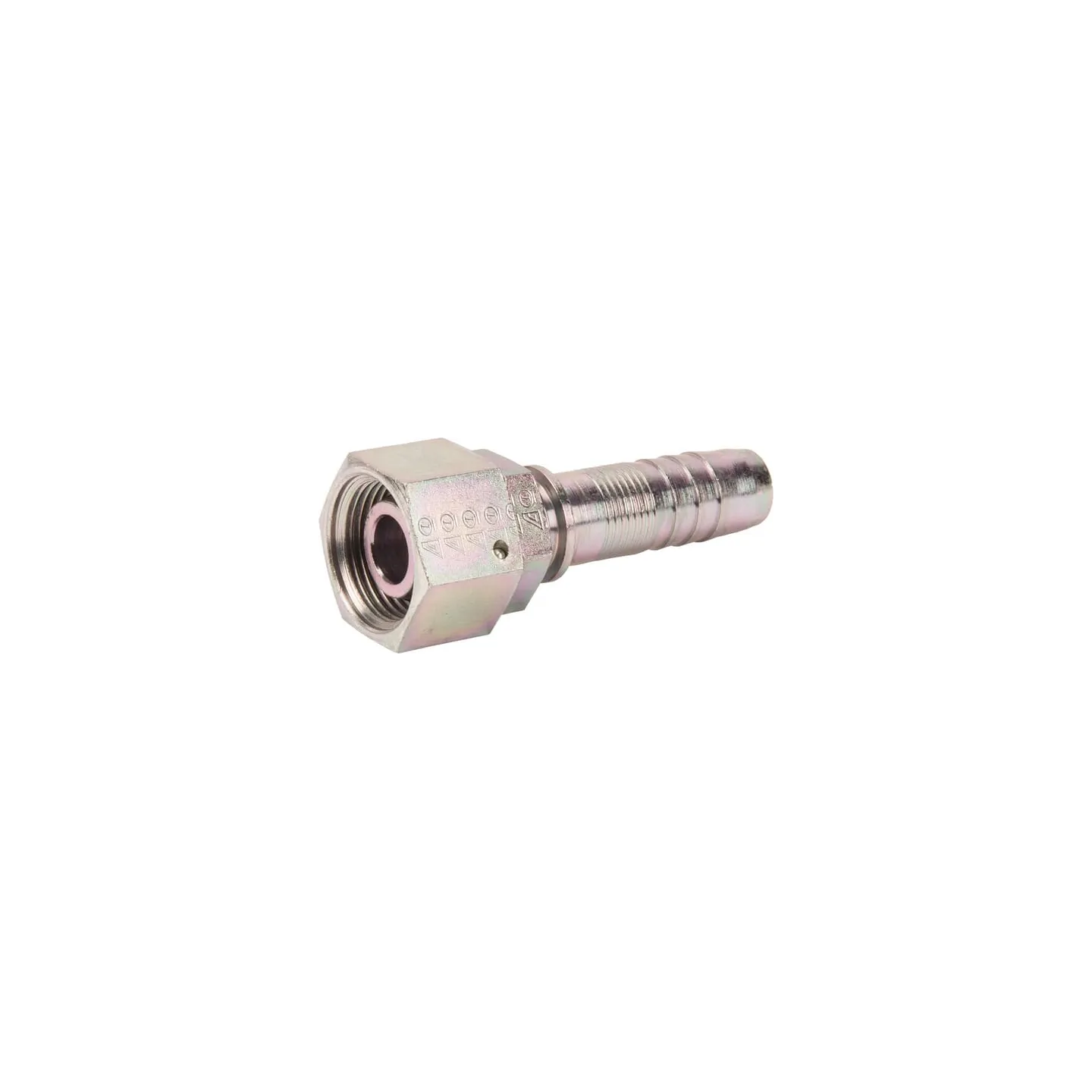

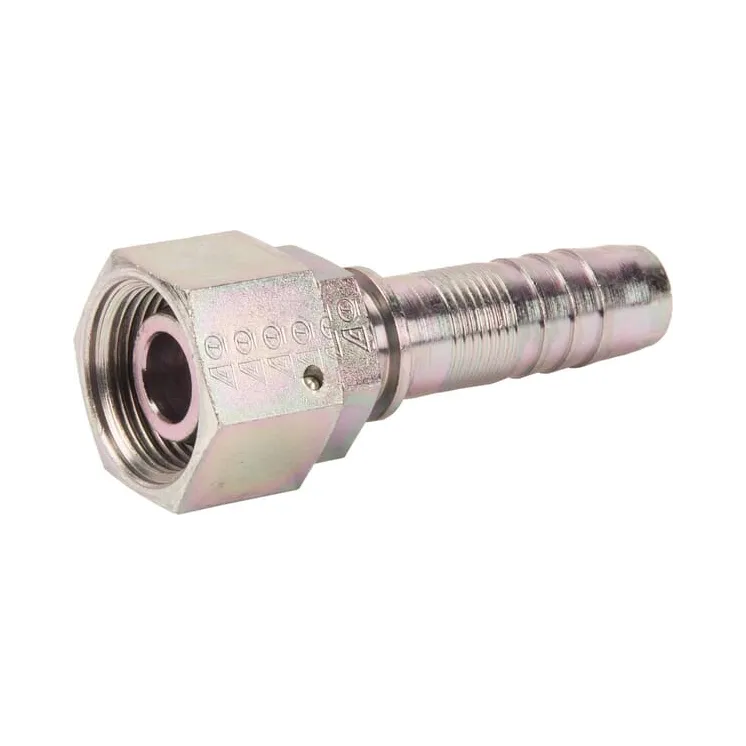

Ievietojiet F NS-DN20-20S-M30x2 DKOSNS2030 Alfagomma

Uz pasūtījumu

ID: 87662

Apraksts

Part number	DKOSNS2030
EAN
Unit	Each
Long description	Alfagomma No-Skive press fittings (type 'NS') are designed for use in combination with Alfabiotech high-pressure hoses.
Pros	Press fittings help ensure faster and easier hose assembly and help to save costs. Processing produces less dirt, smell and waste. No special tool needed to skive the hose.
Product details	The Alfagomma No-Skive press fitting is used in combination with Alfabiotech high-pressure hoses. With these press fittings, there is no need to skive the inner and outer casing.
Connection 2, diameter	3/4 Inch
Connection 2, diameter	20 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection no 1 center to end distance	36.8 mm
F1Connection no 1 thread pitch	2.00 mm
F1Connection no 1 thread diameter	M30
F1Connection no 1 thread type	Metric
F1Connection no 1 type - male/female	Female
Connection no 1 type	O-ring cone
Original number equivalent	H1321612-123000
Series	20S
Shape	Straight - 2 connection sides
